ManagerIQEasy_UM_9752103002_GB_V3_1 17

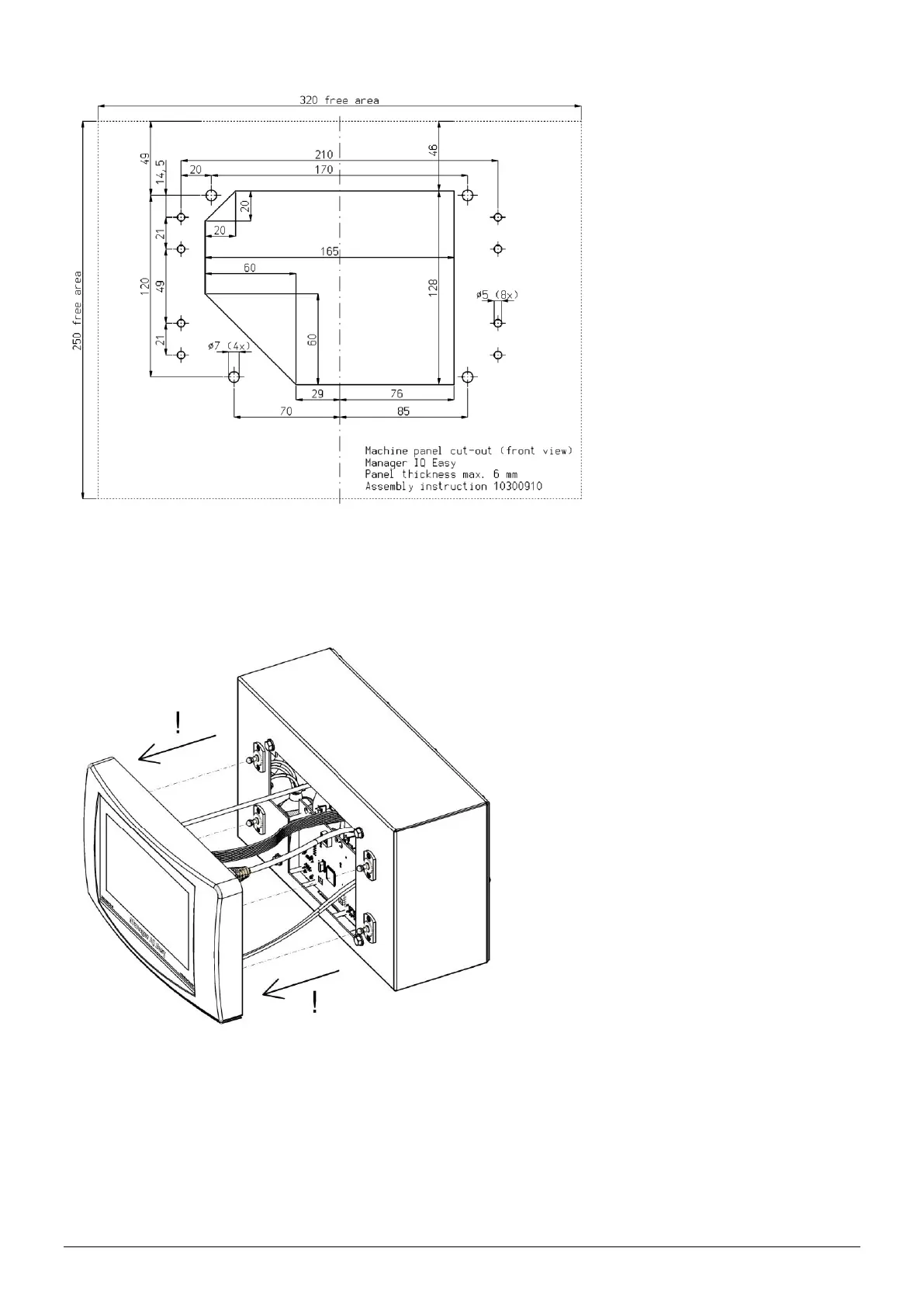

- The plastic front of the Manager IQ Easy is attached to the housing by means of 4 snap

connectors. Carefully pull away the plastic front from the housing. The plastic part can be loosened

using a larger flat screwdriver. There are two recesses below the plastic part for this.

Note: Do not pull on the wiring between the front and the housing.

- Remove all connectors from the front.

- Remove the M5 tap bolts and washers (1) and the 4 snap connectors (2 and 3) from the

housing.
