JLG 1930ES - Lift Cylinder Removal

SECTION 4 - HYDRAULICS
3121166 – JLG Lift – 4-5
1. Battery Cables
2. Valves
3. Manual Descent
4. Steer Hoses
5. Top Cylinder Bolt (Torque 41 ft. lb.)
6. Bottom Cylinder Bolt

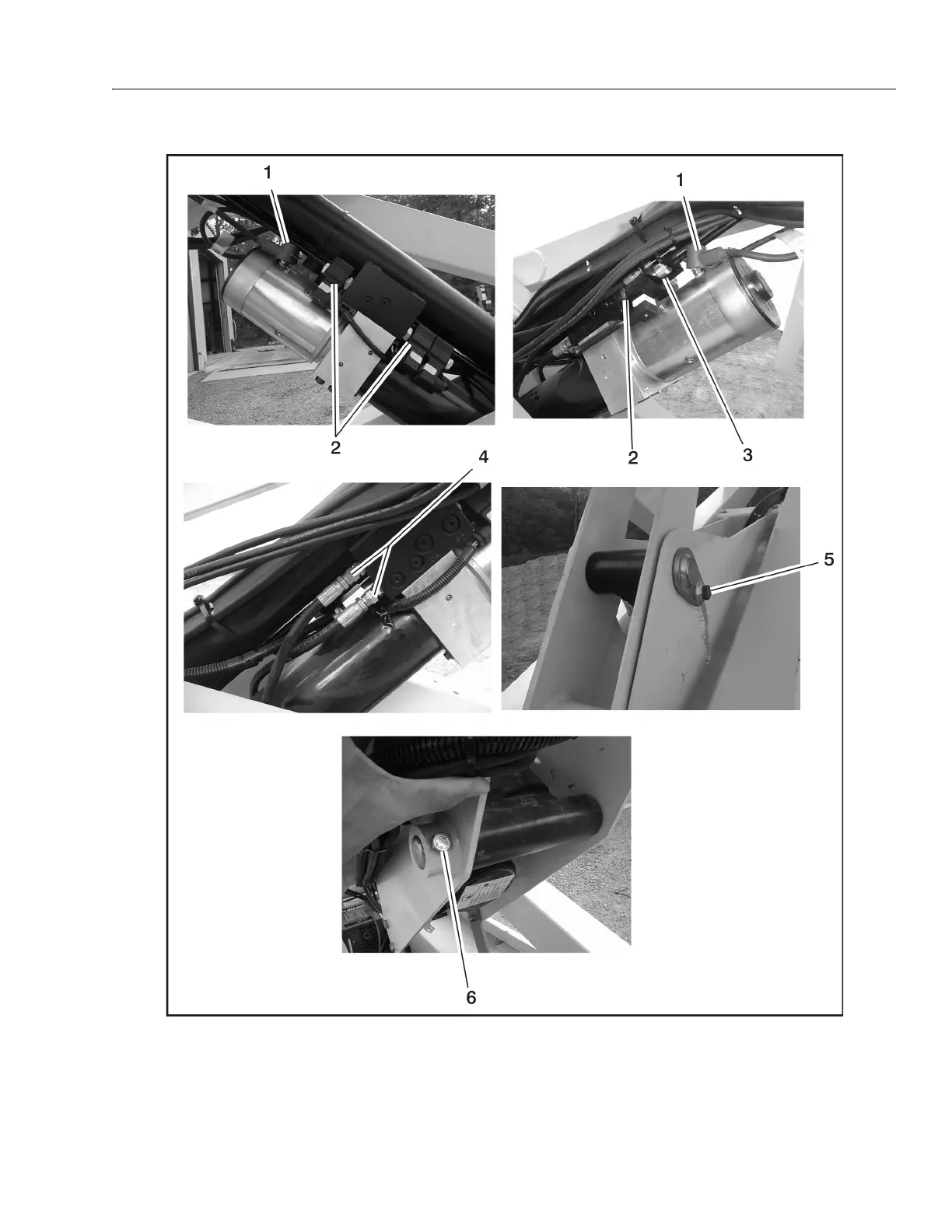

Figure 4-2. LIft Cylinder Removal
