SECTION 3 - CHASSIS & SCISSOR ARMS
3-48 – JLG Lift – 3121166

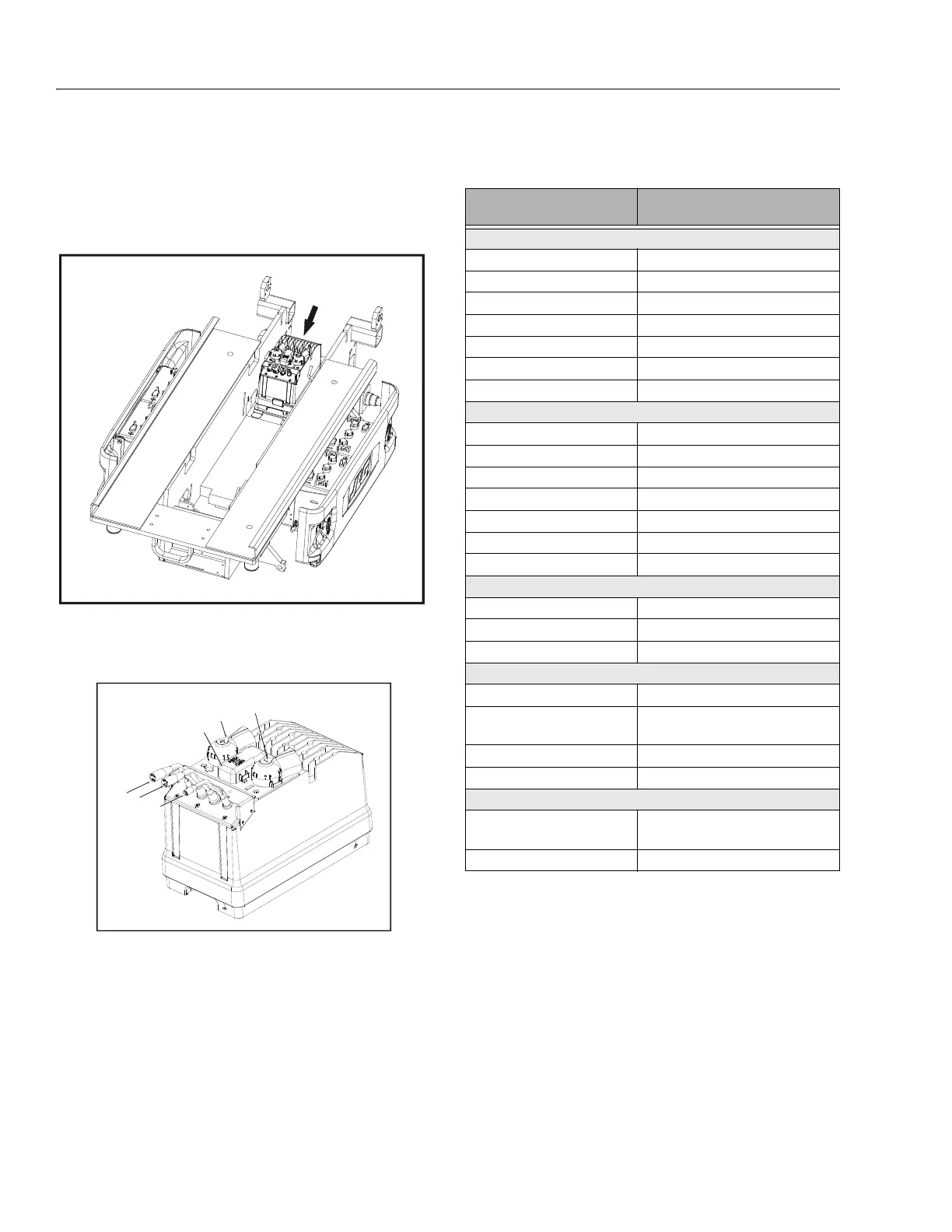

3.12 BATTERY CHARGER/INVERTER (OPTION)
The Battery Charger/Inverter is located on the top of the
chassis at the rear of the machine. Raise and secure scis-
sor arms with arm prop to gain access to the charger.
Figure 3-37. Battery Charger/Inverter Location
1. AC Output Connector
2. AC Input Connector
3. Remote On/Off Switch Cable
4. External DC Fuse Location
5. DC (+) Connection
6. DC (-) Connection
Figure 3-38. Battery Charger/Inverter
Table 3-5. Battery Charger/Inverter Specs
BATTERY CHARGER/AC
INVERTER
SPECIFICATION
AC INVERTER - SPECS
Output Power (Continuous) 1000 W
Output Power (Surge) 3000 W
AC Output Current 36 A
AC Output Voltage 115 to 125 VAC
Output Frequency 60 Hz
DC Input Voltage 21.2 to 29 VDC
Remote ON/OFF Yes
CHARGER - SPECS
Nominal DC Output Voltage 28 VDC
Maximum DC Output Voltage 33 VDC
Maximum DC Output Current 23 to 27 ADC
Required Interlock Current 1 A
Input Voltage (AC) 100 to 130 VAC
Nominal Input Voltage (AC) 120 VAC
Input Frequency 54 to 66 Hz
OPERATION
Charging Indicator Yellow LED
100% Charge Indicator Green LED
Fault Indicator Red LED
PROTECTION
Output Reverse DC Polarity 125 A Replaceable Fuse
Output AC Short Circuit
Electronic Protection - Automatic
Reset
AC Overload 20 A Internal Slow Blow Charger Fuse
DC Overload Voltage Limited - Internally Controlled
MECHANICAL
Operating Temperature
–4 0°F to + 185°F
(–40°C to +85°C)
Housing Shock and Water Resistant Aluminum
