SECTION 7 - GENERAL ELECTRICAL INFORMATION & SCHEMATICS
7-8 – JLG Lift – 3121166

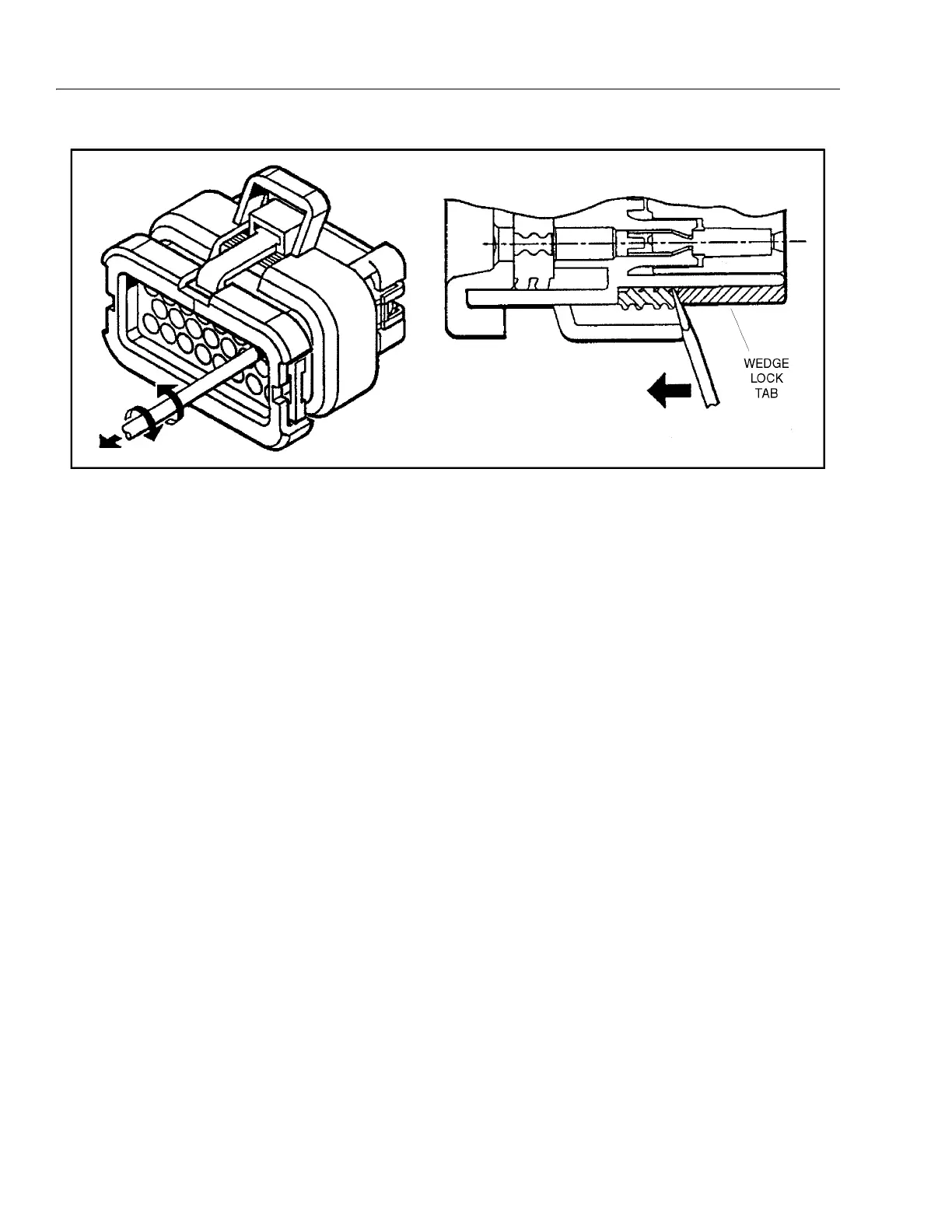

Figure 7-10. Connector Disassembly
NOTE: The wedge lock should never be removed from the housing for insertion or removal of the contacts.
Wedge Lock
The wedge lock has slotted openings in the forward, or mating end. These slots accommodate circuit testing in the field, by
using a flat probe such as a pocket knife. DO NOT use a sharp point such as an ice pick.
