JLG 1930ES - Limit Switch Locations - 2 of 2

SECTION 3 - CHASSIS & SCISSOR ARMS
3-54 – JLG Lift – 3121166
1
NOTE: to present:
1930ES - USA built - S/N 0200151266
- Belgium built - S/N 1200007882
2030ES/2630ES - USA built - S/N 0200152825
- Belgium built - S/N 1200008481
2630ES/3246ES - USA built - S/N 0200151610
- Belgium built - S/N 1200008265
Item 1 shows configuration for machine from S/N
2

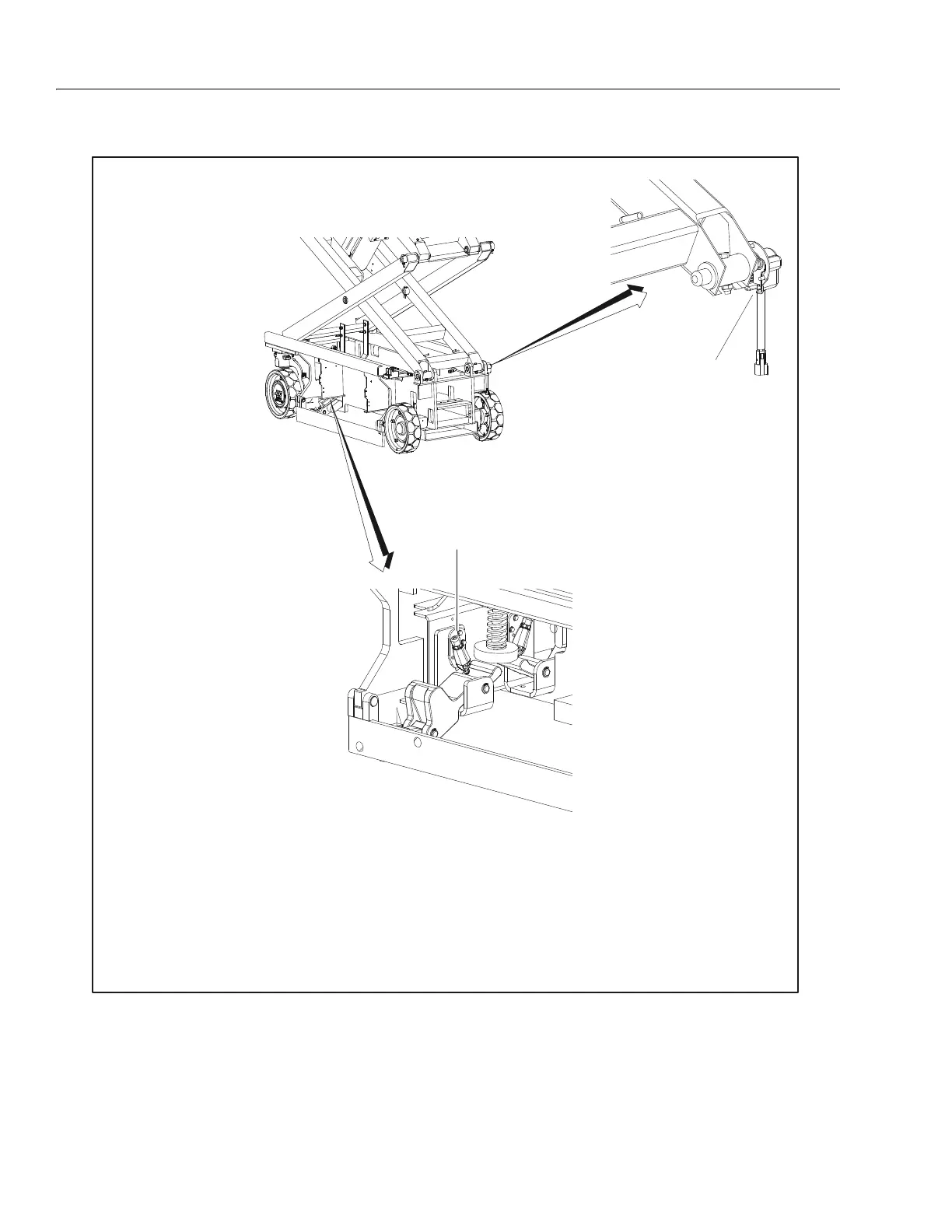

Figure 3-42. Limit Switch Locations - 2 of 2
1. Pothole Switch (Typical on opposite side of machine)
2. Rotary Angle Switch
