JLG 1930ES - Lift Cylinder;Pump;Tank Assembly

SECTION 4 - HYDRAULICS
4-16 – JLG Lift – 3121166

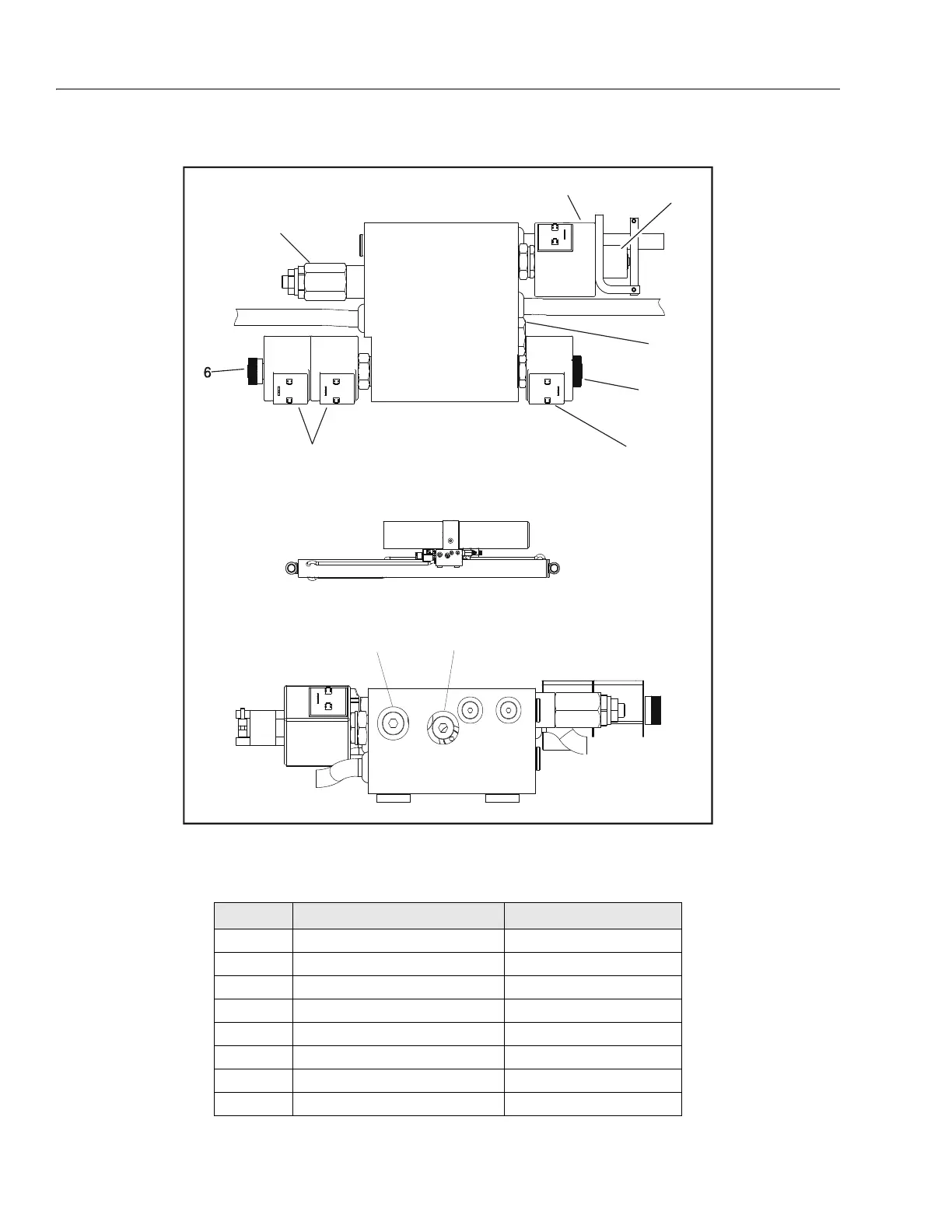

Figure 4-12. Lift Cylinder/Pump/Tank Assembly
TOP VIEW
1
4
3
2
5
2
2
RT
ET
7
8
Table 4-4. Valve Torque Values
Item Description Torque
1 Bi-directional Relief Valve 33 ft lbs (45 Nm)
2 Solenoid NA
3 Proportional Valve 15 ft lbs (20 Nm)
4 Check Valve 33 ft lbs (45 Nm)
5 Blocking Valve 15 ft lbs (20 Nm)
6 4 Way Directional Valve 15 ft lbs (20 Nm)
7 Extend Port NA
8Retract Port NA
