SECTION 7 - GENERAL ELECTRICAL INFORMATION & SCHEMATICS
7-10 – JLG Lift – 3121166
7.4 WORKING WITH DEUTSCH CONNECTORS
DT/DTP Series Assembly

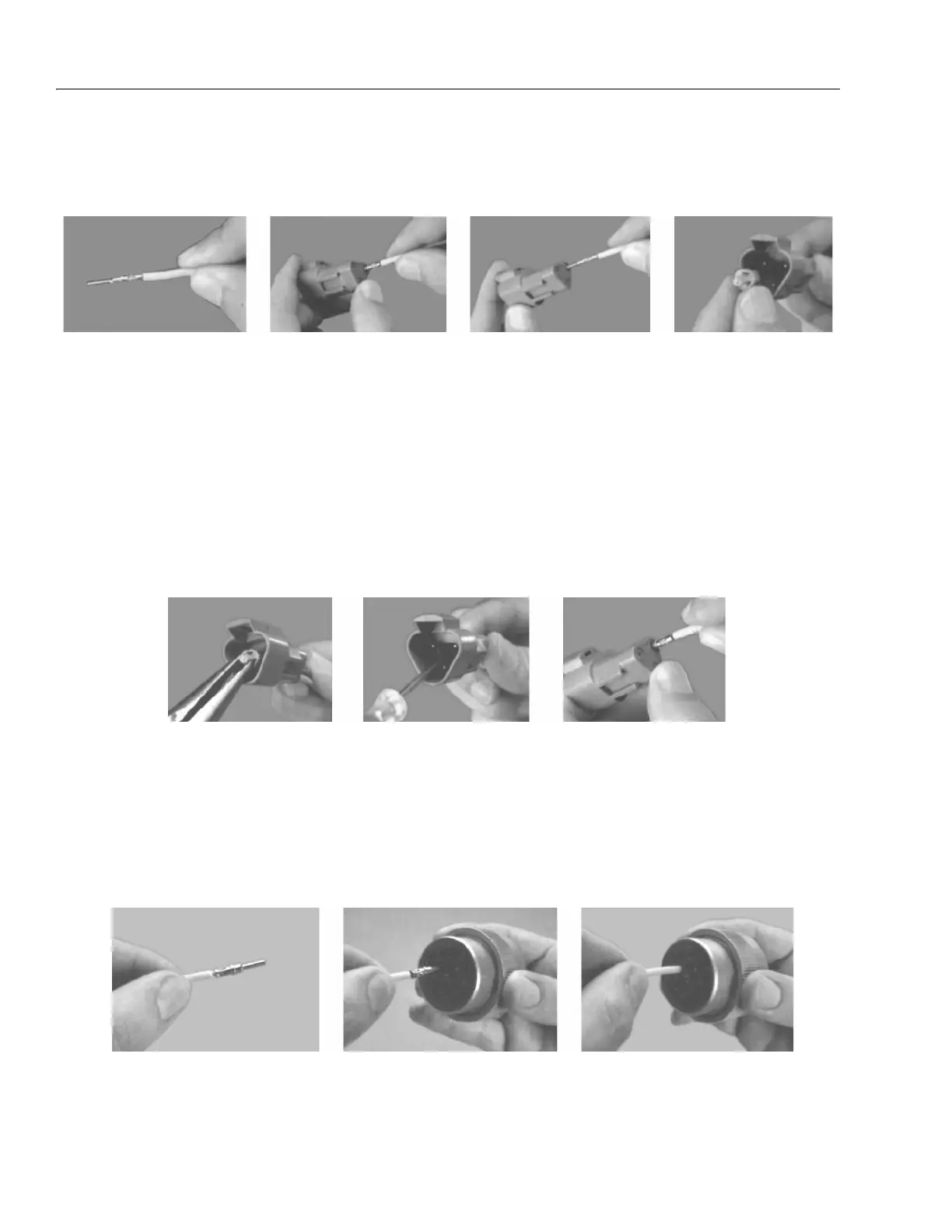

Figure 7-12. DT/DTP Contact Installation
1. Grasp crimped contact about 25mm behind the contact barrel.
2. Hold connector with rear grommet facing you.
3. Push contact straight into connector grommet until a click is felt. A slight tug will confirm that it is properly locked in
place.
4. Once all contacts are in place, insert wedgelock with arrow pointing toward exterior locking mechanism. The wedge-
lock will snap into place. Rectangular wedges are not oriented. Thy may go in either way.
NOTE: The receptacle is shown - use the same procedure for plug.
DT/DTP Series Disassembly
Figure 7-13. DT/DTP Contact Removal
5. Remove wedgelock using needlenose pliers or a hook shaped wire to pull wedge straight out.
6. To remove the contacts, gently pull wire backwards, while at the same time releasing the locking finger by moving it
away from the contact with a screwdriver.
7. Hold the rear seal in place, as removing the contact may displace the seal.
HD30/HDP20 Series Assembly
Figure 7-14. HD/HDP Contact Installation
8. Grasp contact about 25mm behind the contact crimp barrel.
9. Hold connector with rear grommet facing you.
