JLG 1930ES - Drive Motor Removal

SECTION 3 - CHASSIS & SCISSOR ARMS
3121166 – JLG Lift – 3-11
Drive Motor Removal
NOTE: Applies only to:
USA machines built S/N 0200170585 to Present,
Belgium machines built S/N 1200015159 to Present.
CAUTION
ENSURE THE BATTERY DISCONNECT SWITCH IS IN THE OFF
POSITION BEFORE REMOVING DRIVE MOTOR.
1. Disconnect the motor cable from the power control
module.
2. Drain the oil out of the unit by removing the cover
plug. Note the condition of the oil, replace if neces-
sary.
3. Remove the two motor mounting bolts and washers.
4. Gently remove the drive motor (1).

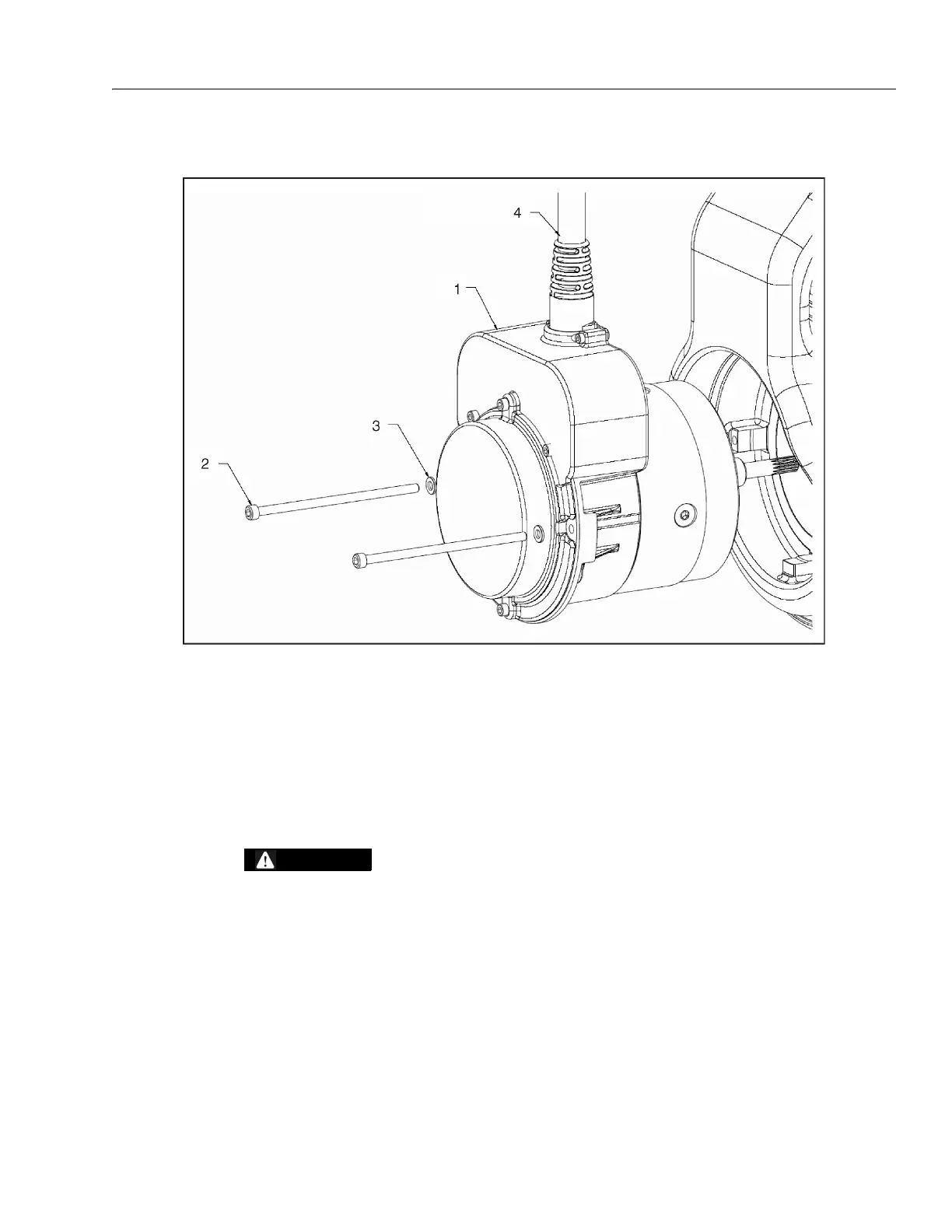

1. Drive Motor
2. Motor Mounting Bolts
3. Washers
4. Motor Cable
Figure 3-10. Motor Removal
