JLG 1930ES - Electrical Schematic - (Machines with 1001092456 Power Module) - Sheet 1 of 3

SECTION 7 - GENERAL ELECTRICAL INFORMATION & SCHEMATICS
7-26 – JLG Lift – 3121166

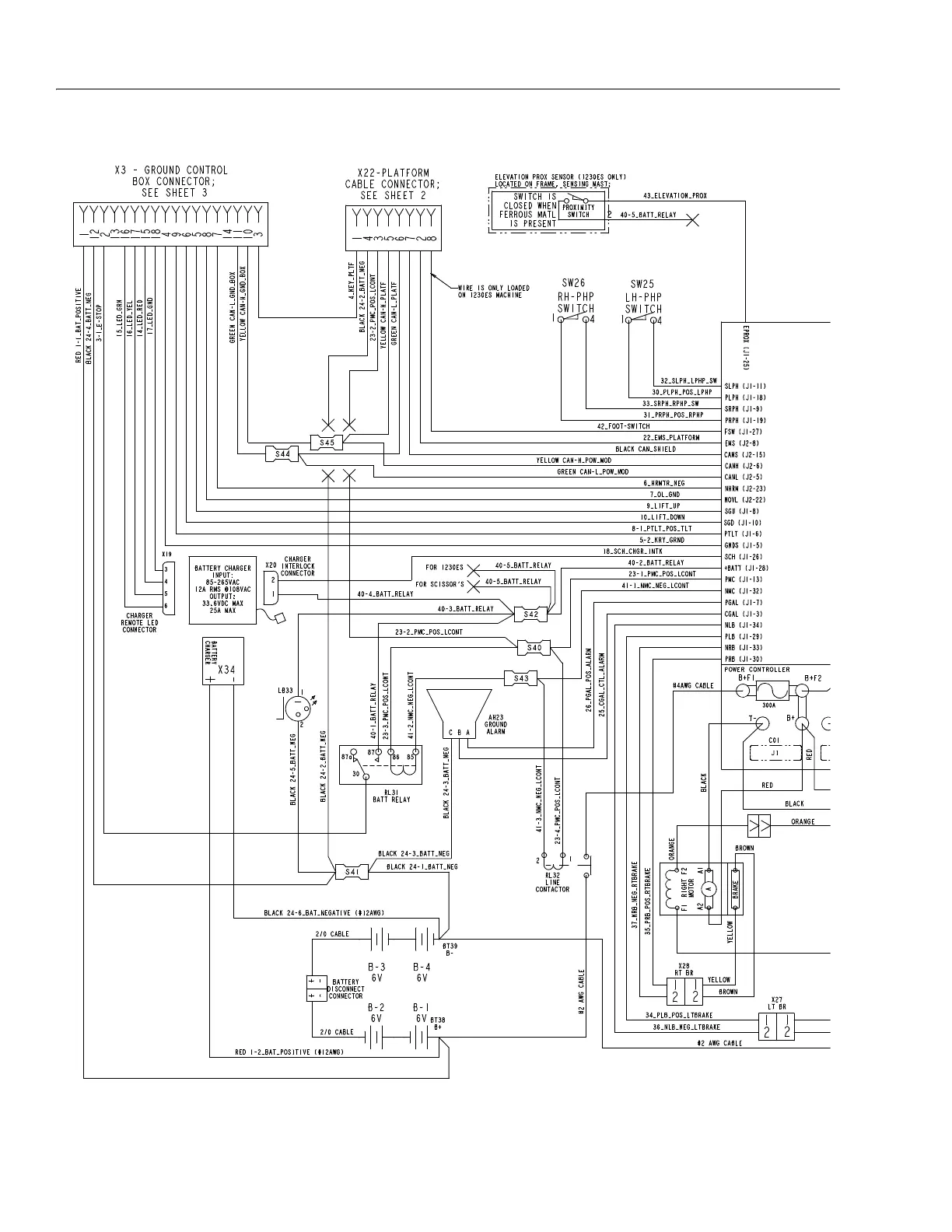

Figure 7-25. Electrical Schematic - (Machines with 1001092456 Power Module) - Sheet 1 of 3
TO S42
CONNECTOR
TO PROX. SWTCH.
TO X18 CONN.
