JLG 1930ES - Electrical Schematic - (Machines with 1001092456 Power Module) - Sheet 3 of 3

SECTION 7 - GENERAL ELECTRICAL INFORMATION & SCHEMATICS
7-30 – JLG Lift – 3121166

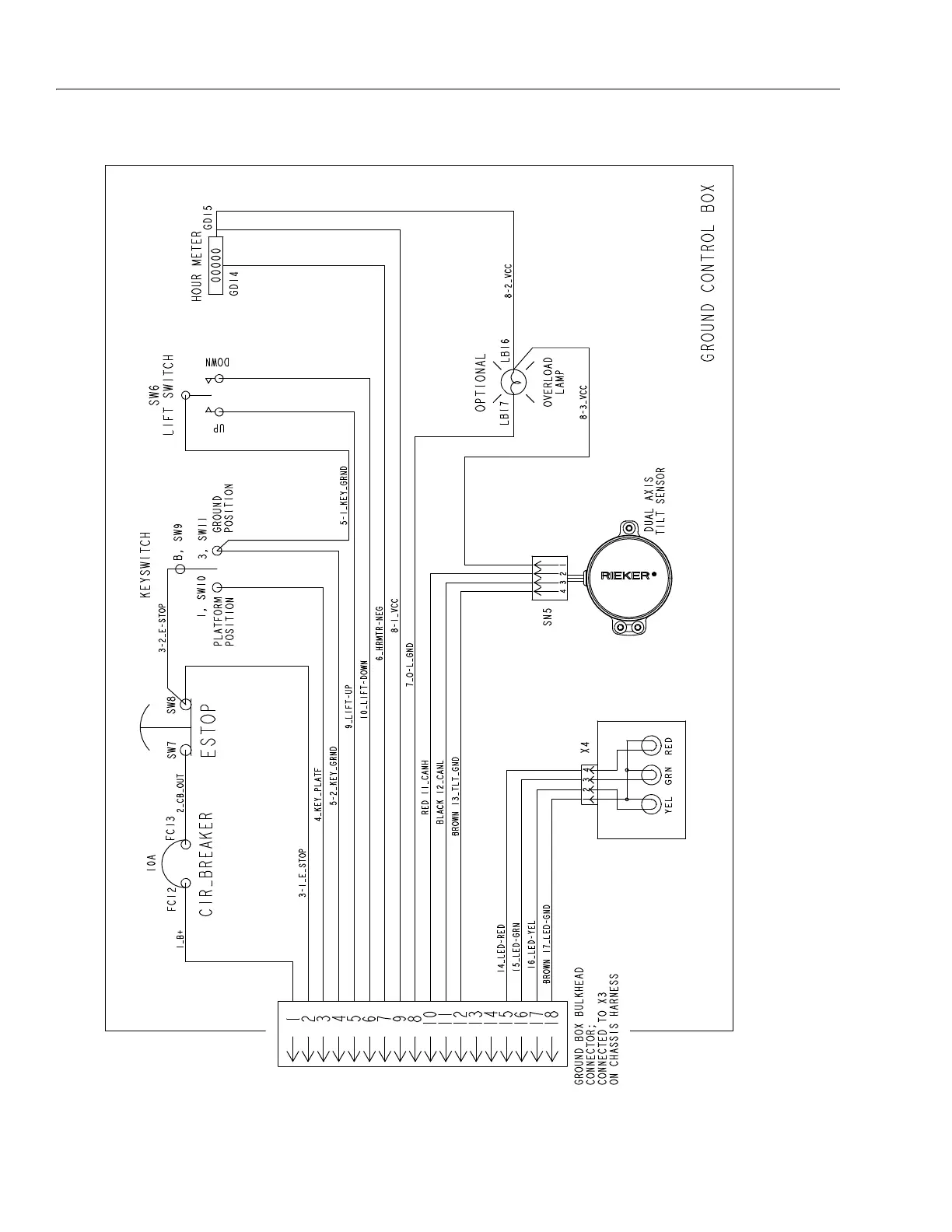

Figure 7-29. Electrical Schematic - (Machines with 1001092456 Power Module) - Sheet 3 of 3
1001114879_C-3
NOTE: THIS SCHEMATIC USED WITH 1001092456 POWER MODULE
