SECTION 3 - CHASSIS & SCISSOR ARMS
3-10 – JLG Lift – 3121166
Motor Disassembly
NOTE: Applies only to:
USA machines built S/N 0200152825 to S/N
020170585,
Belgium machines built S/N 1200008481 to S/N
1200015159.
1. Make sure the E-stop button is pushed in.
2. Disconnect the cable from the power control mod-
ule.
3. Drain the oil out of the unit by removing the pipe
plug, note the condition of the oil.
4. Remove the 2 motor mounting bolts and washers.
5. Gently remove the motor.

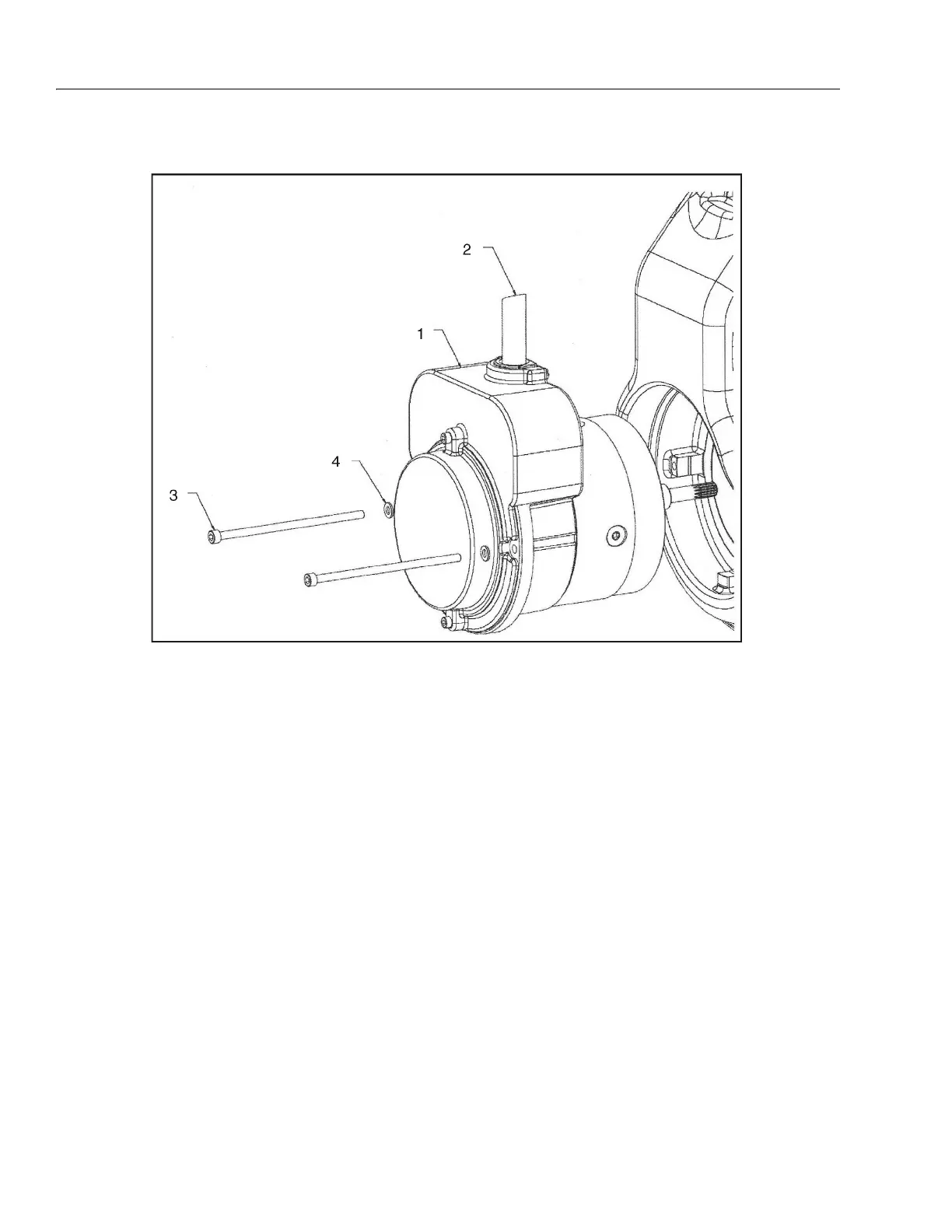

1. Motor
2. Cable
3. Bolt
4. Washer
Figure 3-9. Motor Disassembly
