JLG 1930ES - Limit Switch Locations - 1 of 2

SECTION 3 - CHASSIS & SCISSOR ARMS
3121166 – JLG Lift – 3-53
.
1
2
NOTE: :
1930ES - USA built - S/N 0200150266
- Belgium built - S/N 1200007882
2030ES/2630ES - USA built - S/N 0200152825
- Belgium built - S/N 1200008481
2646ES/3246ES - USA built - S/N 0200151606
- Belgium built - S/N 1200008265
Item 2 shows configuration for machines prior to S/N’s
3
NOTE: Item 1 shows configuration for machines prior to S/N’s:
1930ES - USA built - S/N 0200150266
- Belgium built - S/N 1200007882
2030ES/2630ES - USA built - S/N 0200152825
- Belgium built - S/N 1200008481
2630ES/3246ES - USA built - S/N 0200151610
- Belgium built - S/N 1200008265

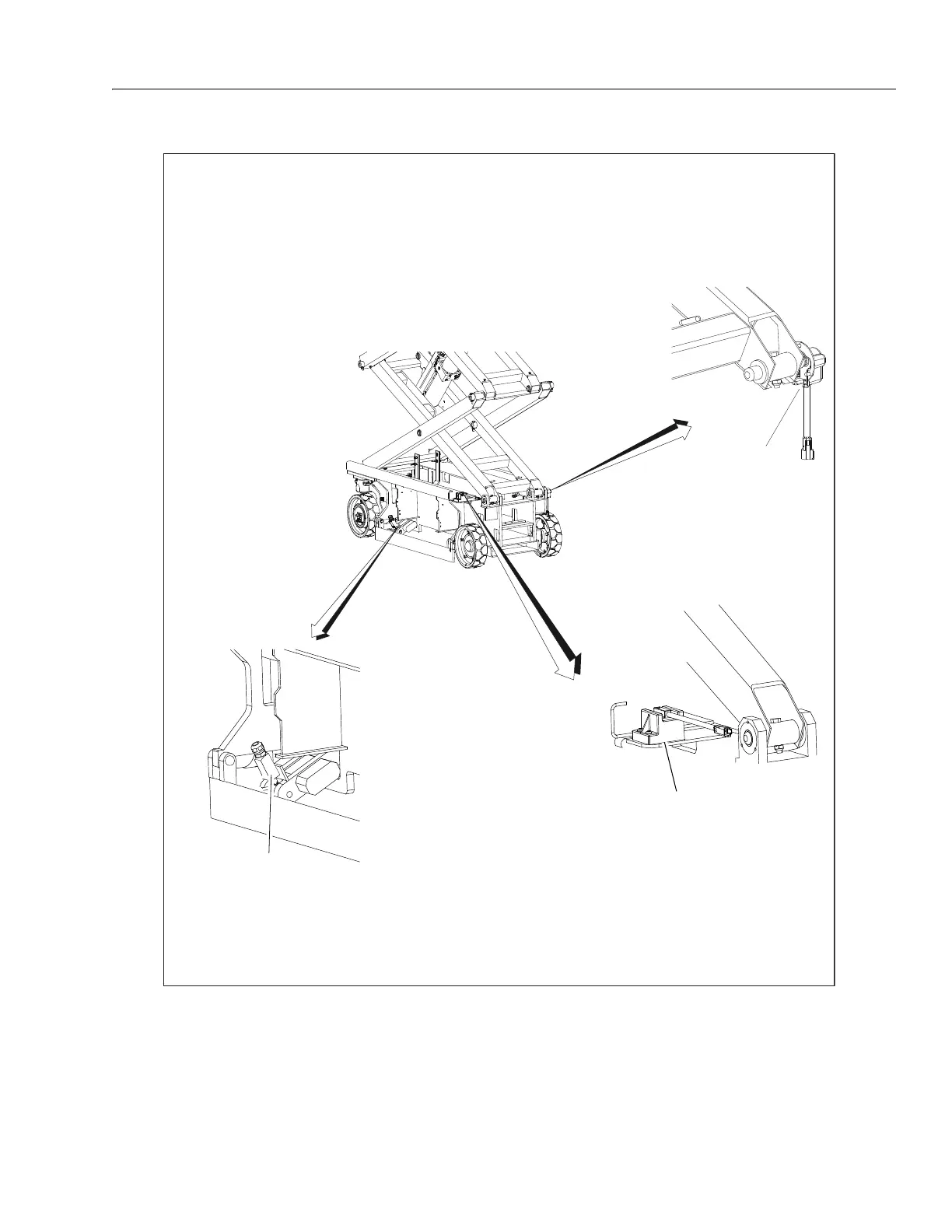

Figure 3-41. Limit Switch Locations - 1 of 2
1. Pothole Switch (Typical on opposite side of machine)
2. Proximity Switch
3. Rotary Angle Switch
