SECTION 7 - GENERAL ELECTRICAL INFORMATION & SCHEMATICS
7-42 – JLG Lift – 3121166
7.8 HYDRAULIC SCHEMATIC
Hydraulic Schematic - 2792599C

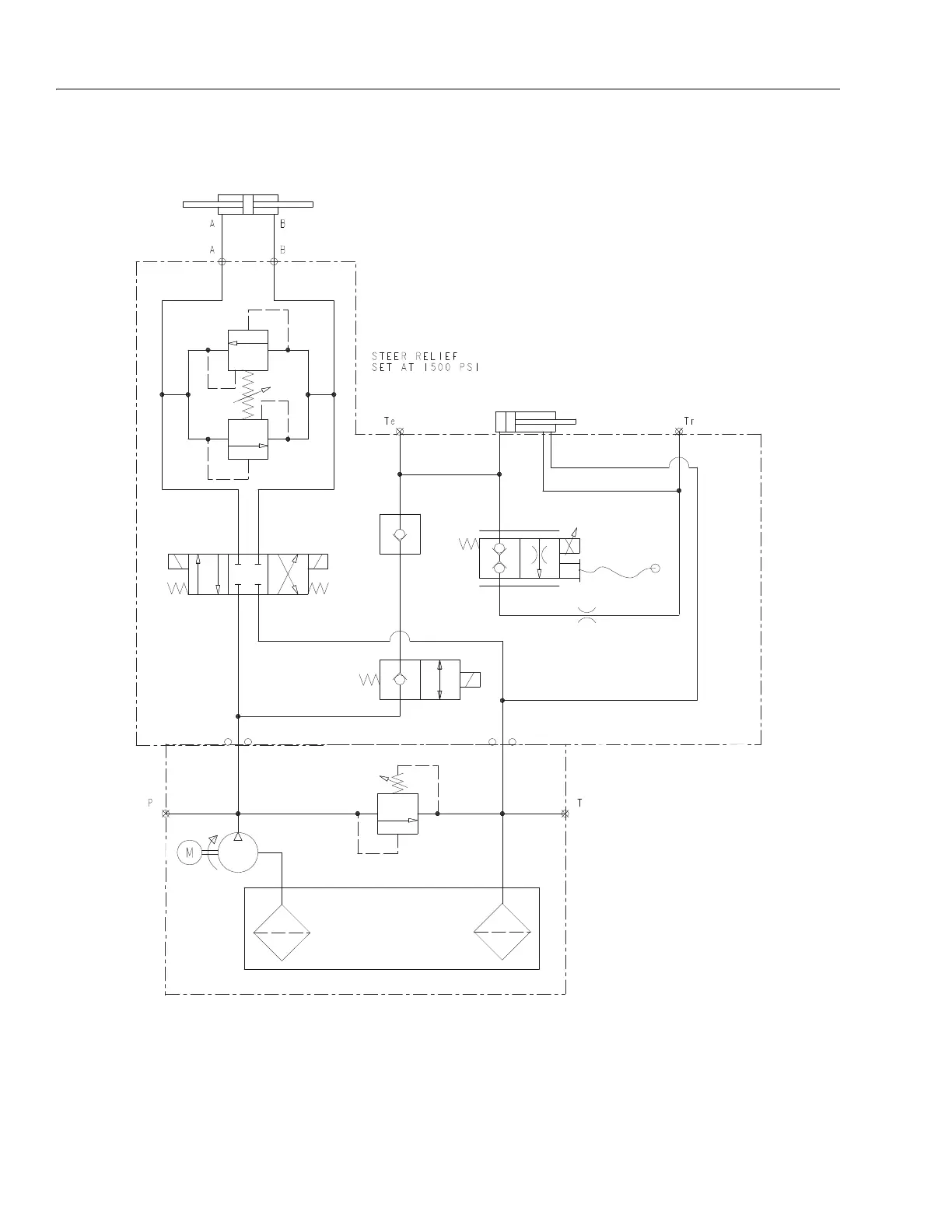

Figure 7-40. Hydraulic Schematic - 2792599-D
2792599-D
