SECTION 3 - CHASSIS & SCISSOR ARMS
3-28 – JLG Lift – 3121166
Motor Maintenance
1. Frame and Field Assembly
2. Armature Assembly
3. Brush and Terminal Assembly
4. Brush Spring
5. Brush Box Assembly
6. Retaining Ring
7. Bearing
8. Wire Harness
9. Commutator End Head
10. Friction Disc
11. Brake Assembly
12. Cover Plate
13. O-Ring
14. Strain Relief Bushing
15. Cover

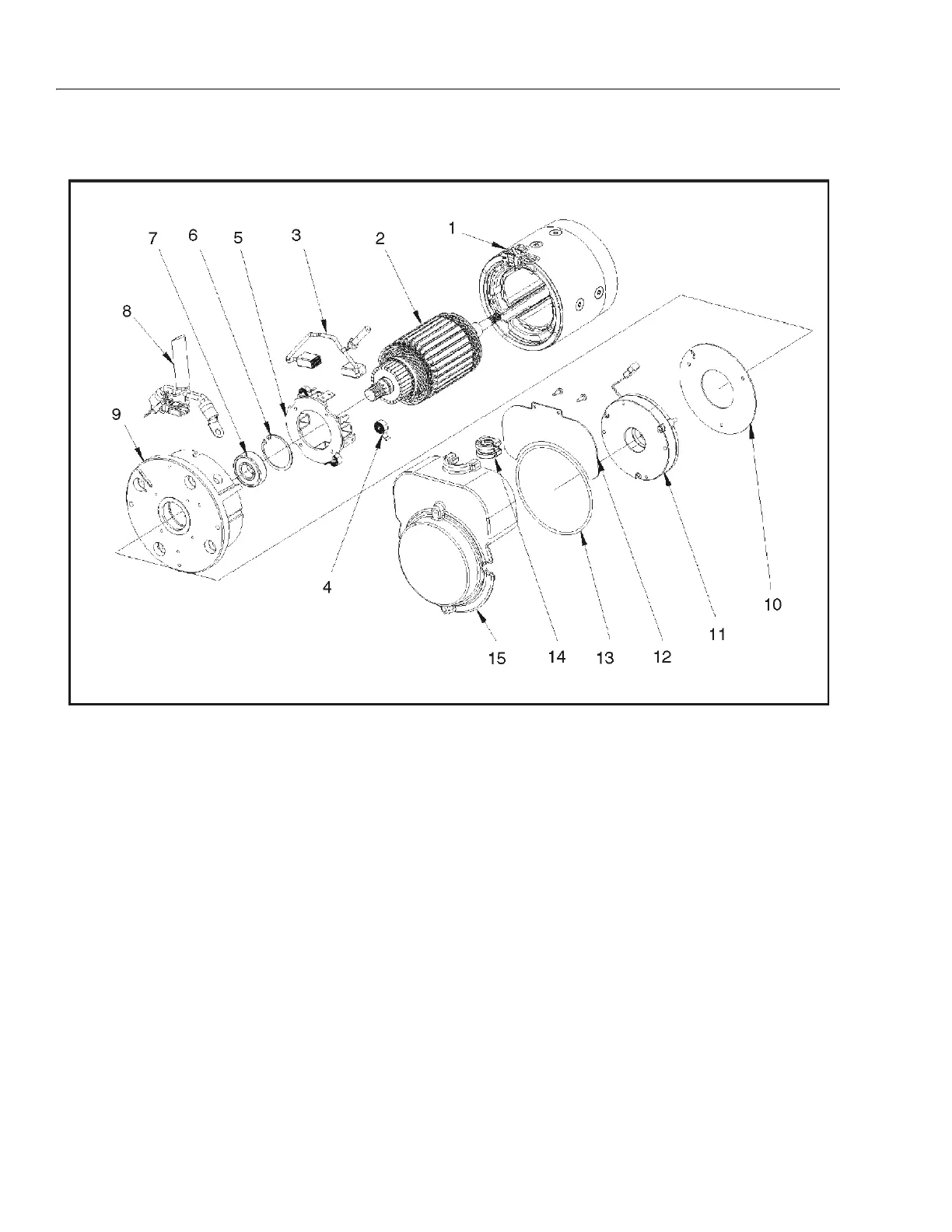

Figure 3-24. Drive Motor
