JLG 1930ES - Electrical Components - Sheet 2 of 2

SECTION 7 - GENERAL ELECTRICAL INFORMATION & SCHEMATICS
3121166 – JLG Lift – 7-37
Electrical Components - Sheet 2 of 2

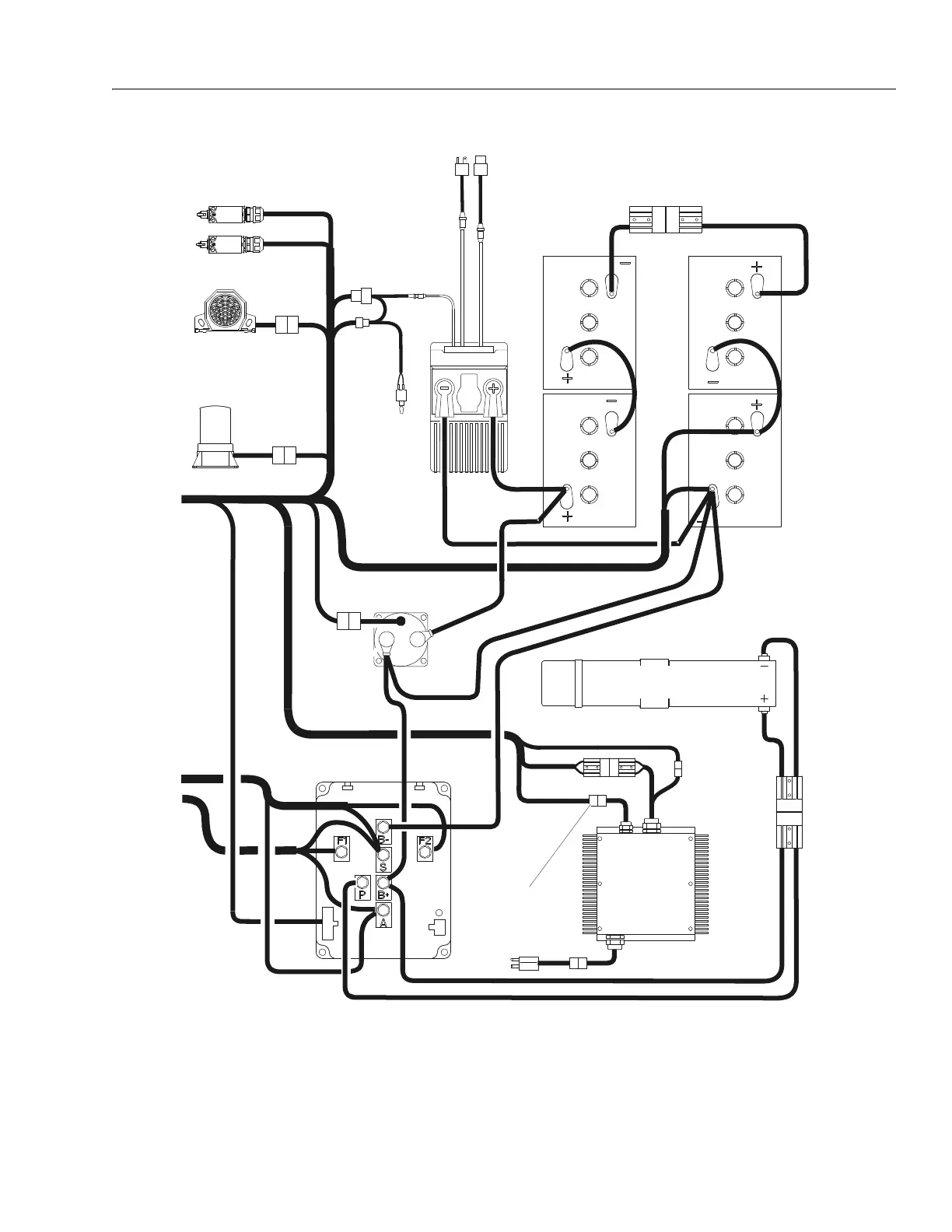

Figure 7-35. Electrical Components - Sheet 2 of 2
NOTE: 1930ES: USA Built Machines S/N 0200151266 to Present, Belgium Built Machines SN 1200007882 to Present;
2030ES/2630ES: USA Built Machines S/N 0200152528 to Present, Belgium Built Machines S/N 1200008481 to
Present; 2646ES/3246ES: USA Built Machines S/N 0200151606 to Present, Belgium Built Machines S/N
11200008265 to Present
*
NOTE: THIS CONNECTION USED ONLY WHEN FOOTSWITCH OR BATTERY CHARGER INTERLOCK OPTIONS ARE REQUIRED.
POTHOLE
PROTECTION
SWITCHES
ALARM
BEACON LIGHT
BATTERIES
CONTACTOR
RELAY
POWER
MODULE
PUMP/MOTOR/
RESERVOIR
BATTERY
CHARGER
BATTERY
CHARGER/
INVERTER
INVERTER
POWER
SWITCH
*
