SECTION 3 - CHASSIS & SCISSOR ARMS
3-32 – JLG Lift – 3121166
3.6 ELECTRIC DRIVE MOTOR
NOTE: Applies only to:
USA machines built S/N 0200170585 to Present,
Belgium machines built S/N 1200015159 to Present.
1. Wire Harness
2. Frame & Field Assembly
3. Armature Assembly
4. Brush Spring
5. Brush & Terminal Assembly
6. Brush Box Assembly
7. Retaining Ring
8. Bearing
9. Commutator End Head
10. Grommet
11. Brake Assembly
12. Gasket Seal Kit
13. Cover Plate Kit
14. Cover Plate Mounting Screws
15. Brake Cover Mounting Screws
16. Terminal Cover Mounting Screws

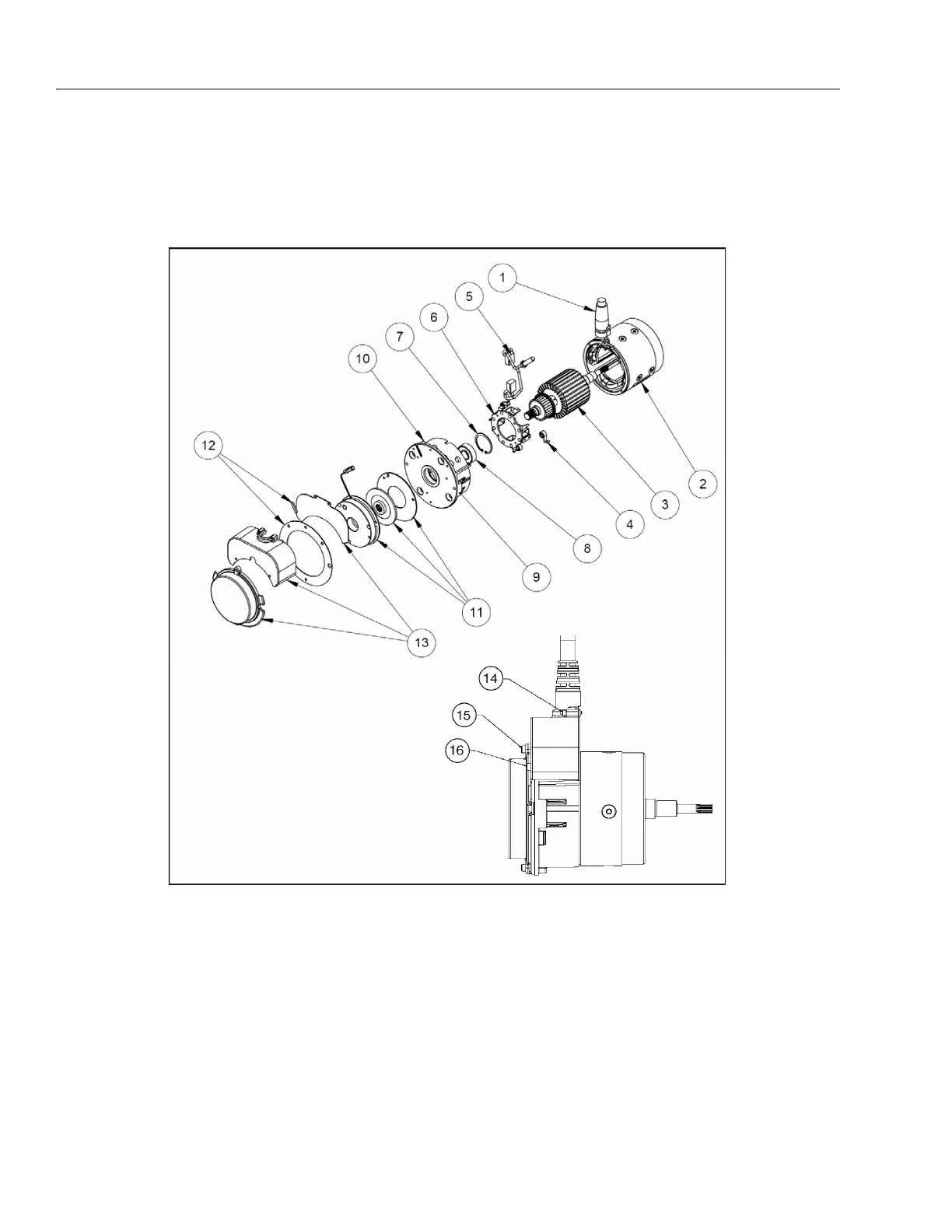

Figure 3-29. Drive Motor Components
