SECTION 7 - GENERAL ELECTRICAL INFORMATION & SCHEMATICS
7-34 – JLG Lift – 3121166
Electrical Components - Sheet 1 of 2

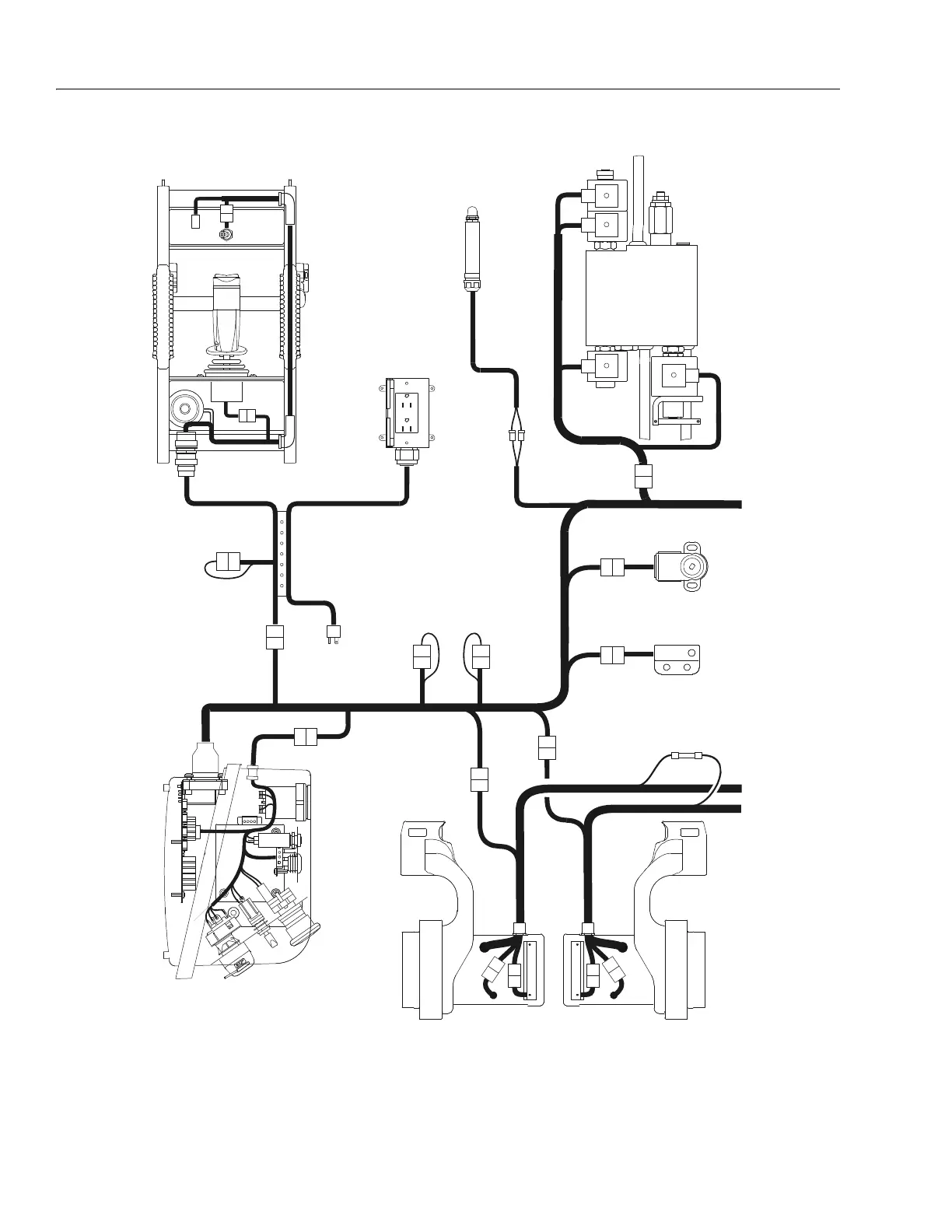

Figure 7-32. Electrical Components - Sheet 1 of 2
NOTE: 1930ES: USA Built Machines S/N 0200135154 to S/N 0200151266, Belgium Built Machines S/N 1200004293 to SN
1200007882; 2030ES/2630ES: USA Built Machines S/N 0200135154 to S/N 0200152528, Belgium Built Machines S/
N 1200004293 to S/N 1200008481; 2646ES/3246ES: USA Built Machines S/N 0200135154 to S/N 0200151606, Bel-
gium Built Machines S/N 1200004293 to S/N 1200008265
LIFT
CYLINDER
VALVE
BLOCK
PLATFORM
CONSOLE
BOX
GROUND
CONTROL
BOX
PROXIMITY
SENSOR
TO
LSS
ROTARY ANGLE
SENSOR
BRAKE
DISCONNECT
SWITCH
PLATFORM
RECEPTACLE
DRIVE
MOTORS
