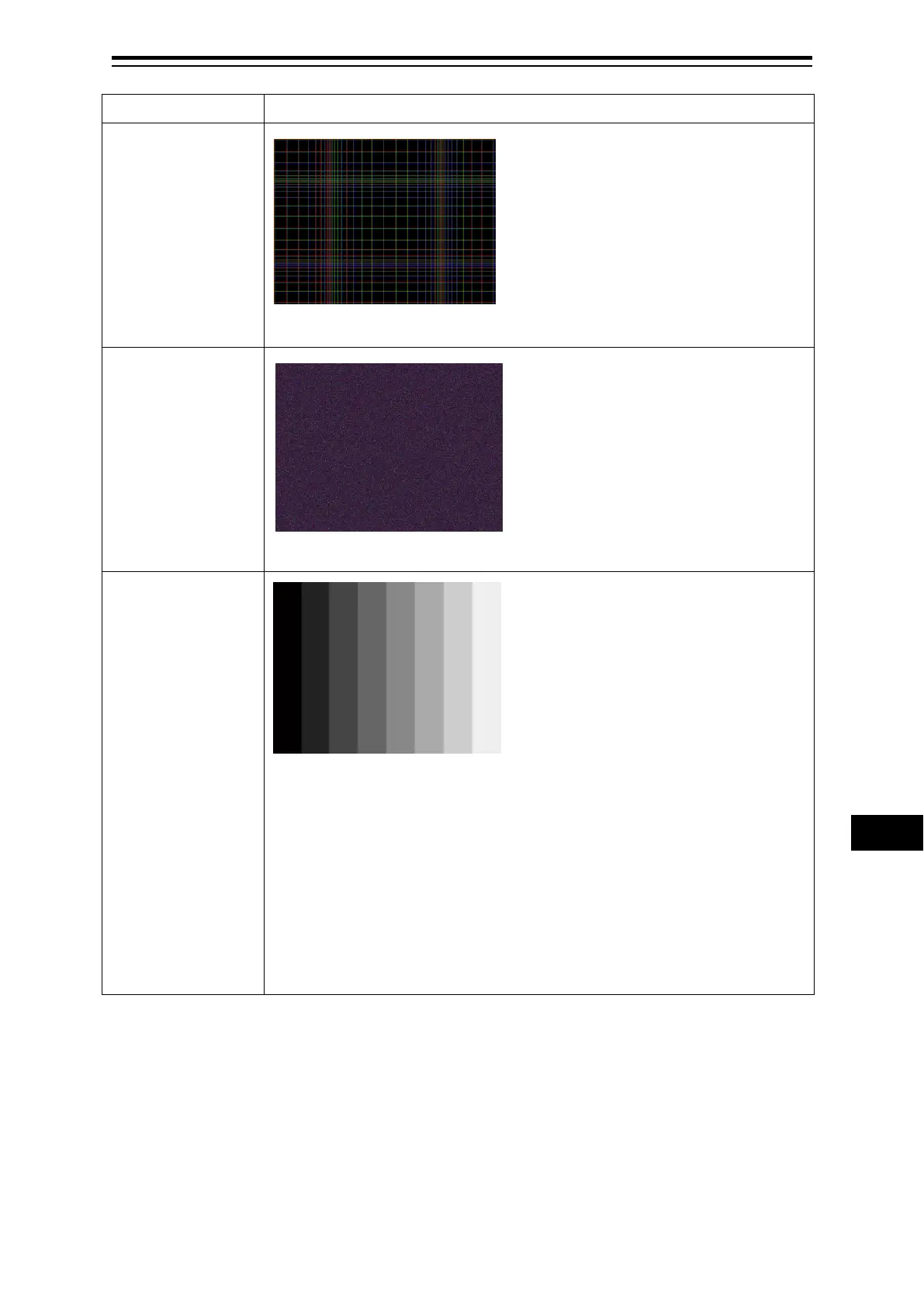

Pattern button name Display
Pattern5
Displays the pattern for checking the communication quality for VDR.
Pattern6
Displays the pattern for checking the communication quality for VDR.
Gray Scale
Displays the grey scale pattern for checking the monitor brightness
adjustment.
Grey scale patterns can be identified with brightness in day/night mode. By
adjusting the monitor brightness to facilitate identification of grey scale
patterns, the optimum brightness can be set. The brightness in night mode
can also be adjusted in the same way.
Use the Day/Night button on the right Tool Bar for switching between the day
and night mode.
For the details of the Day/Night button, refer to "2.2.2 Right toolbar".

JRC ECDIS Specifications

General

Display Type	LCD
Radar Overlay	Yes
AIS Integration	Yes
Operating Temperature	-15°C to +55°C
Chart Format	S-57, S-63
Power Supply	24V DC
Interfaces	Ethernet, USB
Compliance	IMO
