Chapter 5 VARIOUS FUNCTIONS
5.23 FUNCTION SETTING
“Function Setting” is provided for always obtaining the best radar video by storing complex radar signal
processing settings in the optimum status by use, and calling the setting in accordance with the conditions for
using the function.
Functions are factory-set for general use, and the settings can be fine adjusted by operating the menu.
You can select one of 6 function modes. The factory presetting is shown below.
Function 1: Standard Suitable for general monitoring.
Function 2: Coast Useful for observing short-range videos.
Function 3: Deepsea Suitable for general ocean navigation.
Function 4: Fishnet Useful for small target.
Function 5: Bird Useful for a flock of seabirds.
Function 6: User This mode is for users to save and use their preferred settings, when the 5 modes
above are not applicable.
The default setting is for a stormy weather.
Choose Standard in this example setting.
There is no difference in setting menu other than Standard.

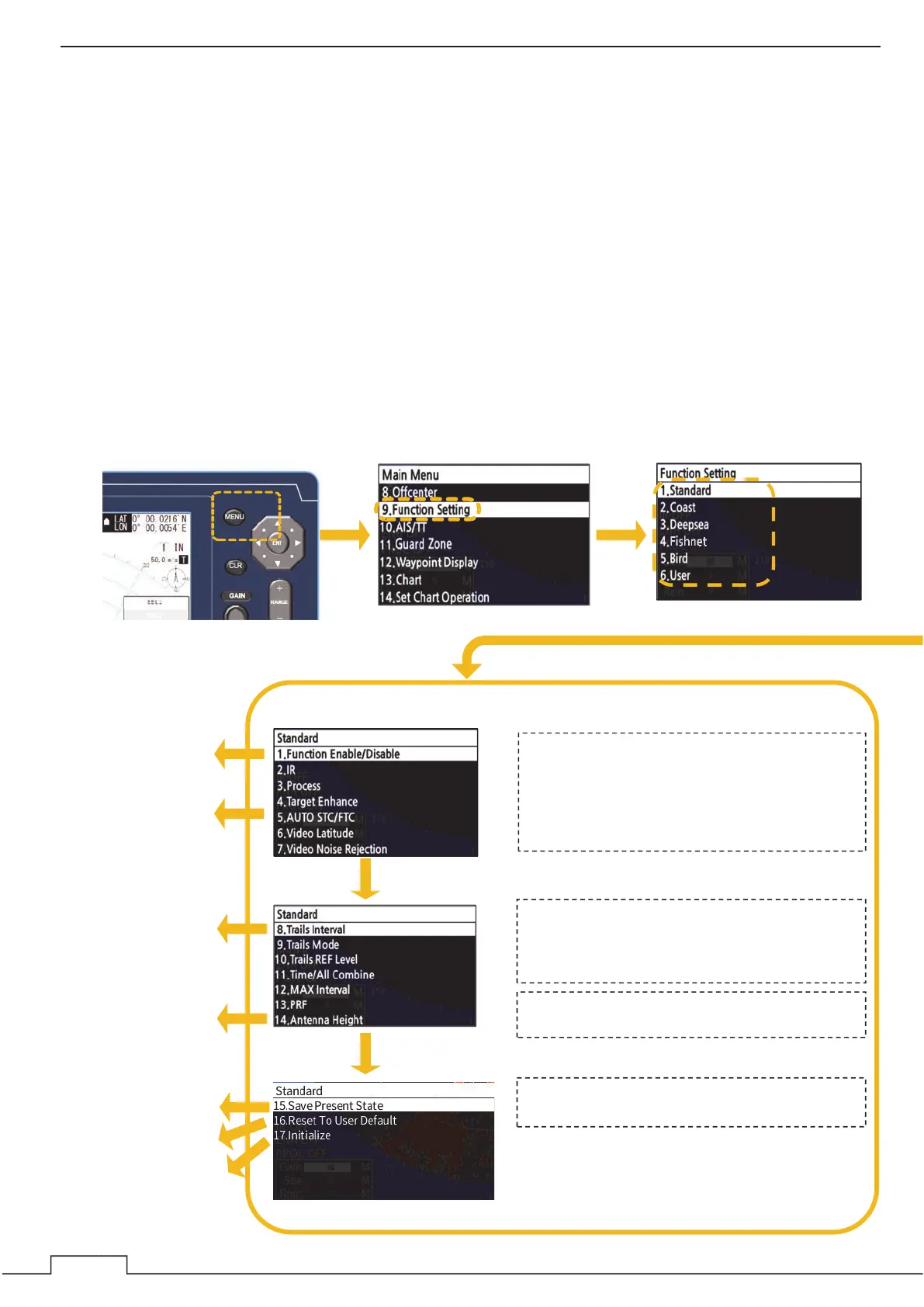

䐡 Select each mode.㻌
䐟 Press the MENU button.㻌䐠 Select “Function Setting.”
To 5.23.1㻌
Press the cross key (down) or turn the MULTI control
to move to the next page.
About the following settings, refer to "5.16 RADAR ECHO
SETTING".
࣭IR
࣭Process
࣭Target Enhance
࣭Video Latitude
About the following settings, refer to "5.20 TRAILS
SETTING".
࣭Trails Mode
࣭Trails REF Level
About the following setting, refer to "8.2 TRAILS".
࣭MAX Interval
To 5.23.2㻌
To 5.23.3㻌
To 5.23.5㻌
To 5.23.7㻌
About the following setting, refer to "8.4.5 PRF".
࣭PRF
Press the cross key (down) or turn the MULTI control
to move to the next page.
To 5.23.4㻌
To 5.23.6㻌
To Next Page
