Chapter 8 DETAIL PERFORMANCE

8.9.4 WIDE SCREEN

Set the display of radar echo to wide.

Default is

Standard.

If you select

Wide

, radar echo image extend to outer PPI.

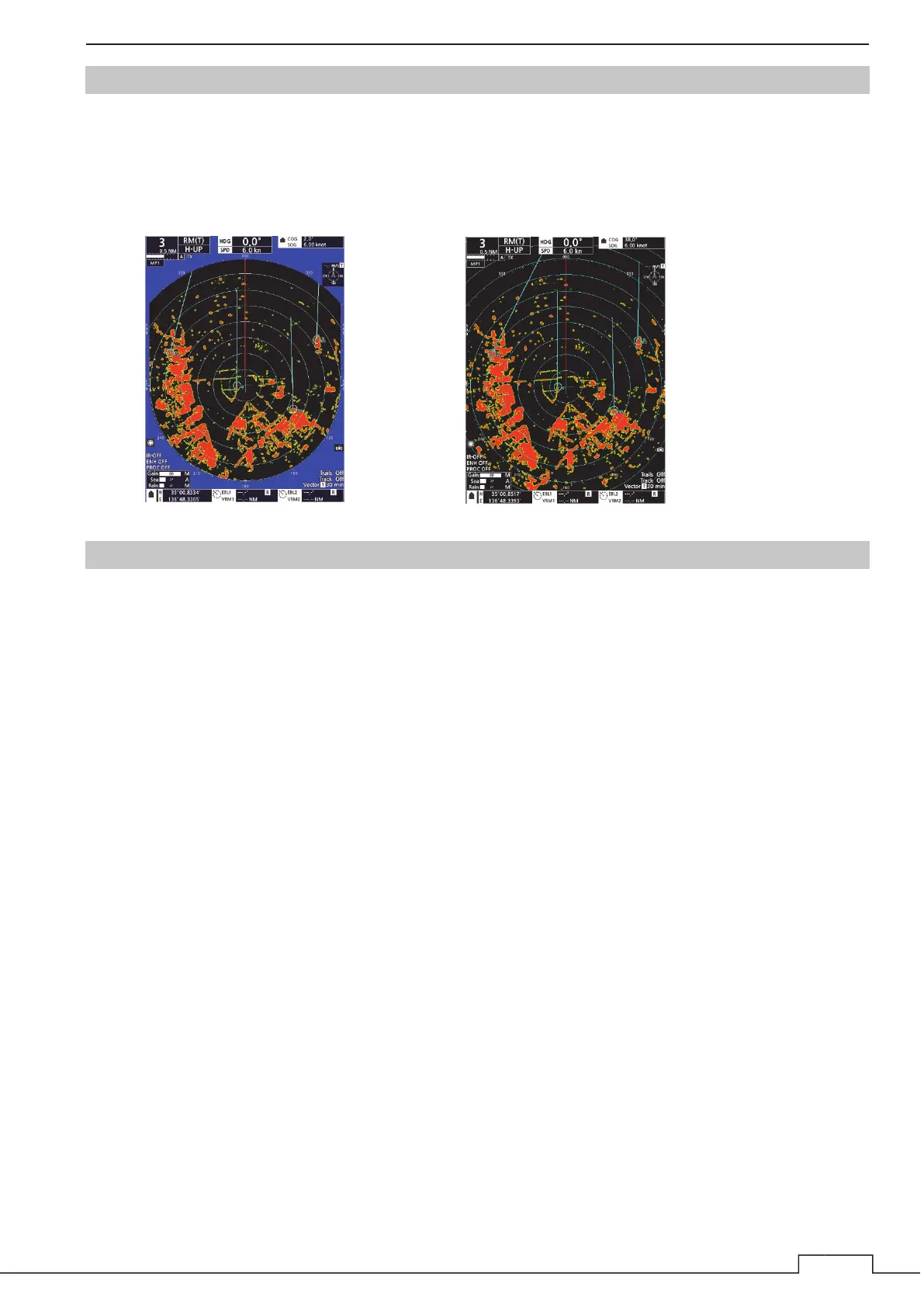

 Screen of “Standard”  Screen of “Wide”

8.9.5 TIME

You can select the type of time to be displayed when a ZDA sentence is received.

Set the kind of time displayed.

You can select display time from

UTC

None.

Time display is not shown if you set

None.
