Chapter 7 INITIAL SETTINGS

14

5

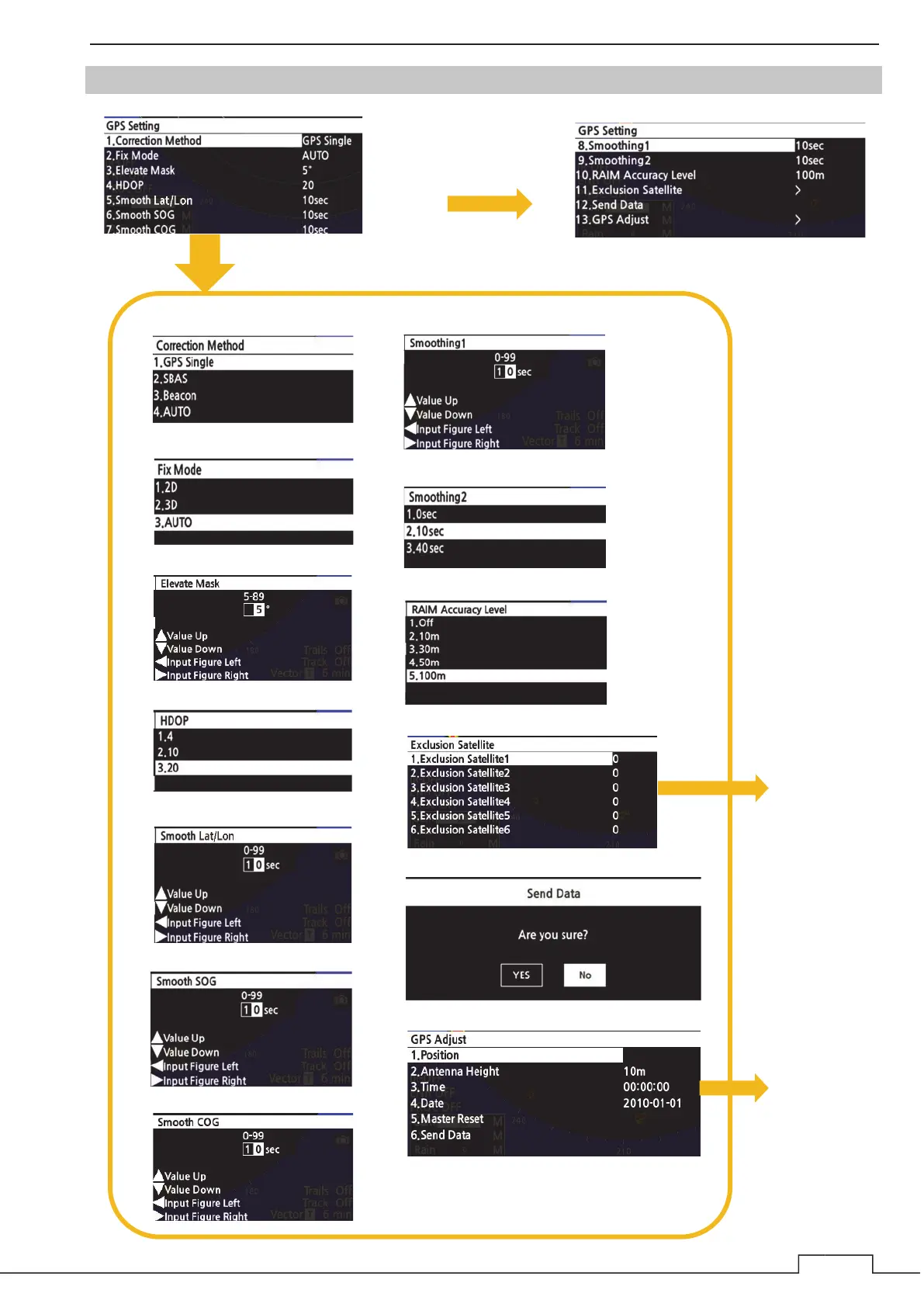

7.8.2 GPS SETTING

Correction Method

Fix Mode

Elevate Mask

HDOP

Smoothing1

RAIM Accuracy Level

GPS Send Data

GPS Adjust

Exclusion Satellite

Smooth SOG

Smooth COG

7.8.2.13

7.8.2.11

Smoothing2

Press cross key (down) or turn

MULTI control to the right to

display the next page.

Select each setting item.

Smooth Lat/Lon
