Cha

ter 8 DETAIL PERFORMANCE SETTINGS

8.2 TRAILS

Set the radar trails setting.

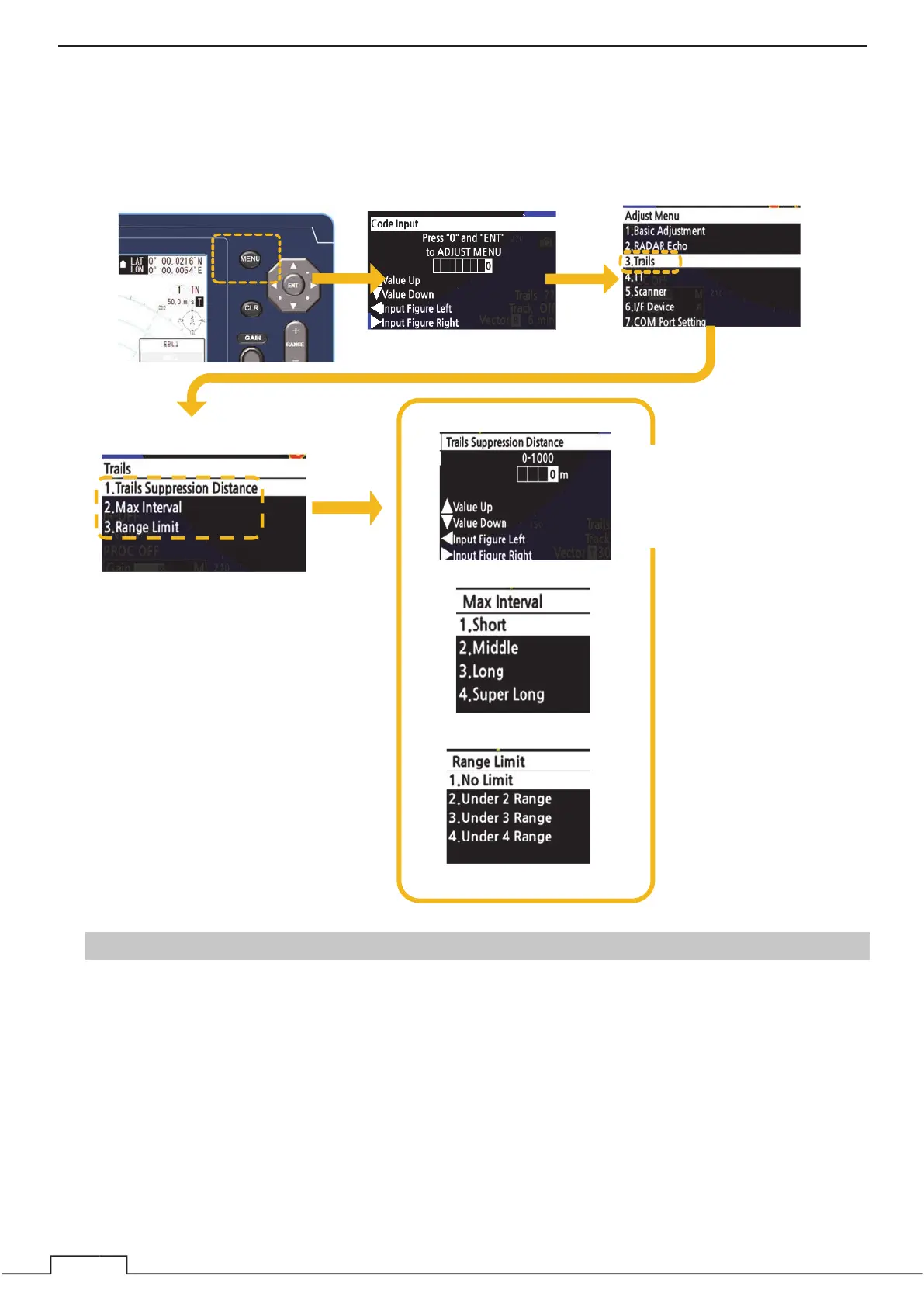

8.2.1 TRAILS SUPPRESSION DISTANCE

Set the suppression distance of trails.

Trail of target that is closer from own ship than the value of this function setting is not created.

Max Interval

Range Limit

䐠 Input "0" and press ENT button.

㻌

䐟 Long press the MENU button. 䐡 Select "Trails".

䐢 Select each setting item.

Trails Suppression Distance

* Press the cross key or

turn the

MULTI

control

to set the value.
