Chapter 7 INITIAL SETTINGS

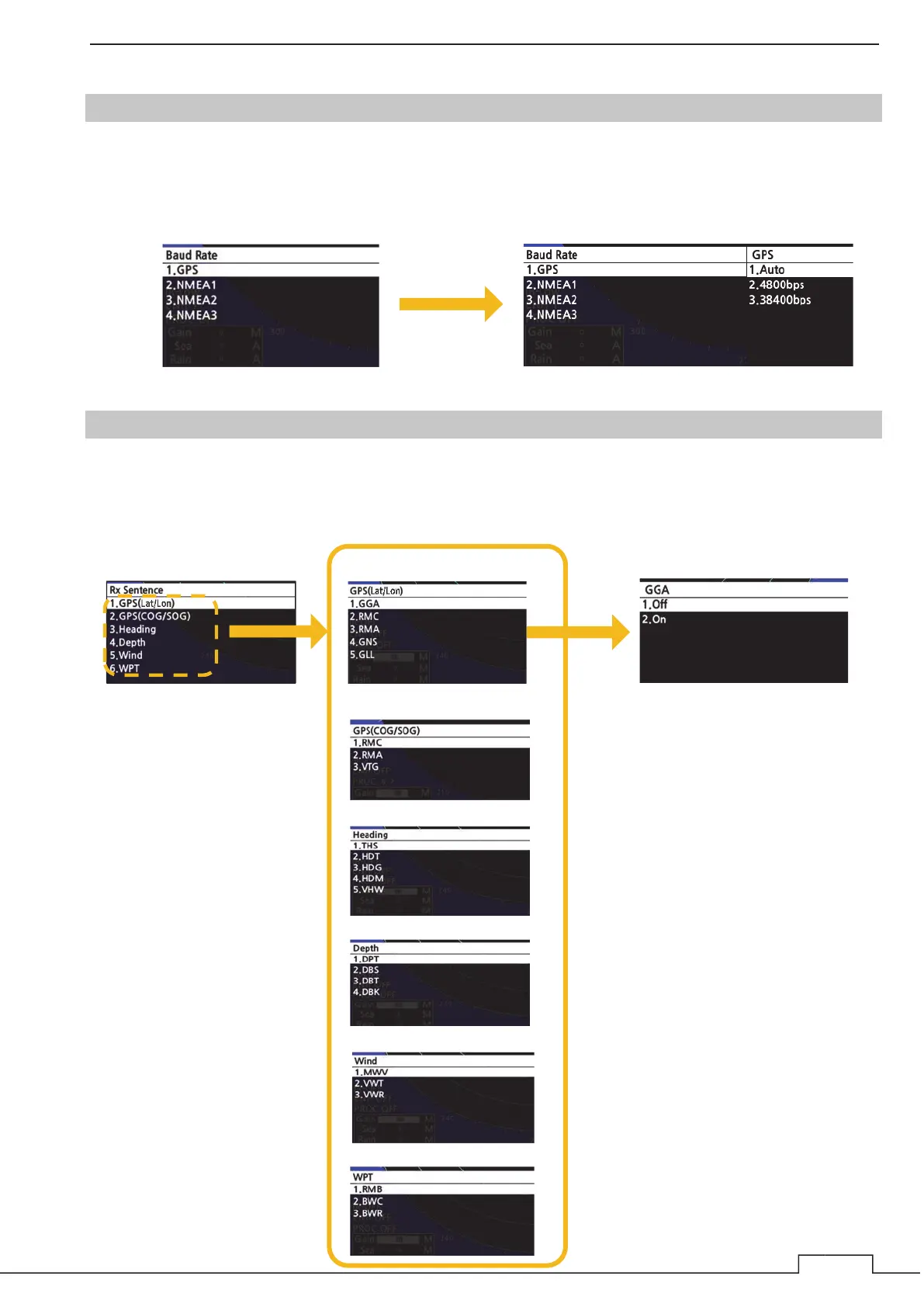

7.6.1 BAUD RATE

Data speed setting of communication.

Auto: Switching automatically between 4800bps and 38400bps.

7.6.2 RX SENTENCE

Select whether to receive each sentence. The default value is all On.

䐟 Select the GPS and NMEA port to be set.

䐠㻌 Select Baud Rate.

The same setting is possible for other ports㻚㻌

䐠 Select the sentence to be set. 䐟 Select the type of sentence

to be set.

䐡㻌 Set sentence reception On/Off.

The same setting is possible for

other sentence㻚

GPS (Lat/Lon)

GPS (COG/SOG)

Heading

Depth

Wind

WPT
