Cha

ter 7 INITIAL SETTINGS

142

7.7 I/F DEVICE

Make an appropriate setting for each type of equipment when inputting true bearing signals, true bearing

data, and speed data.

Settings and parameters are different for each type of equipment.

Make settings for the type of equipment to be connected.

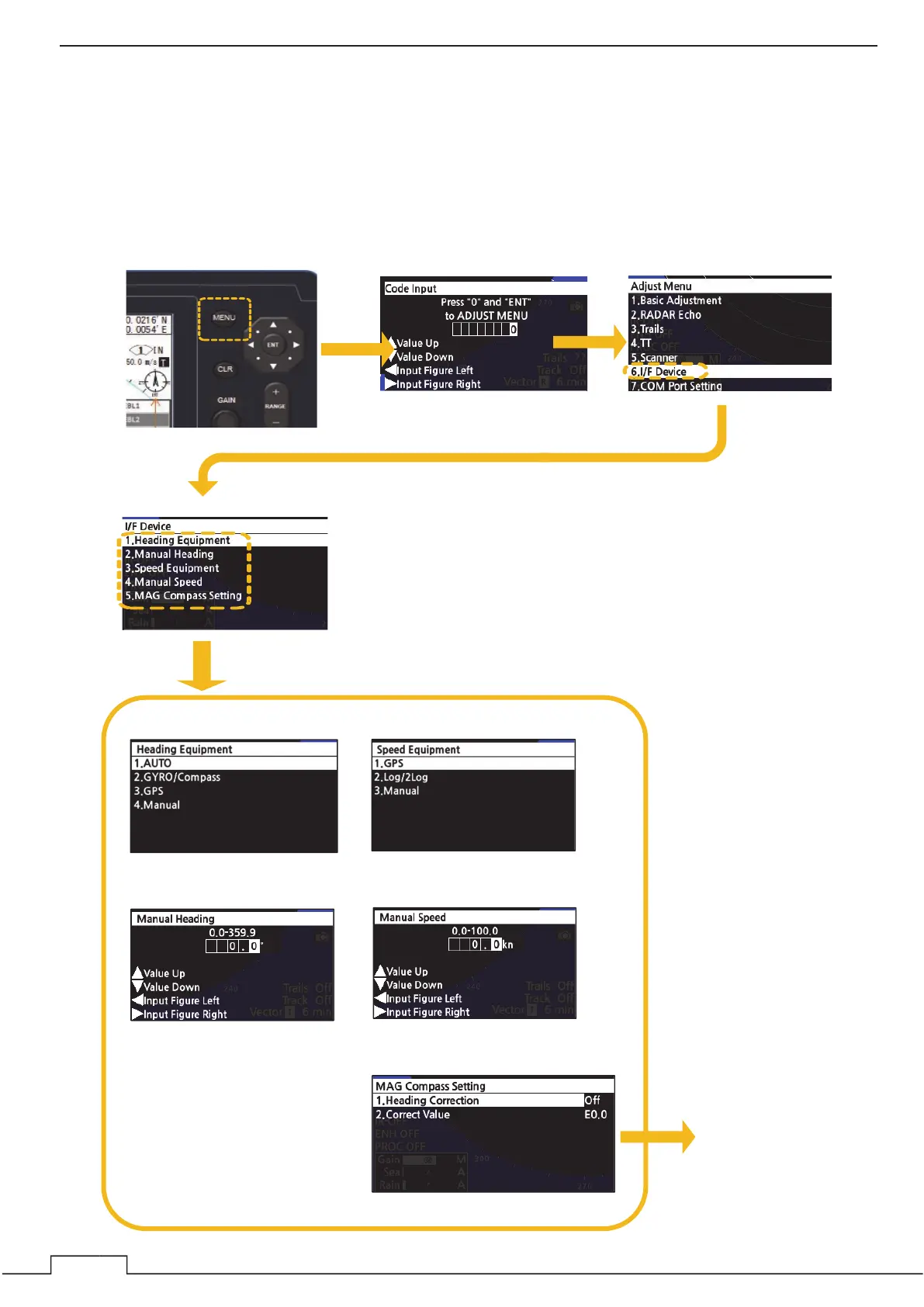

䐟 Long press MENU button.

䐠㻌 Input 0 and press ENT.㻌

ճ Select “I/F Device.”

䐢㻌 Select each setting item.

7.7.5㻌

Heading Equipment

Manual Heading

Speed Equipment

Manual Speed

MAG Compass Setting
