8.8.1 MASTER/SLAVE/DEMO
Master: Set to this item when connecting to scanner.
Slave: Set to this item when input video signal of external source to display echo without scanner.
Demo: Set to this item when no video signal is input from external source and no scanner is connected.
8.8.2 OWN OUTLINE
Select the own ship outline display on/off.
You can set the outline of the own ship in meters. In order to reduce the distance measurement error due to
radar, please also set the installation position of the scanner.
8.8.3 BARGE OUTLINE
Select the own ship outline display on/off.
You can set the outline and position of the barge ship in meters.
8.8.4 BEARING MARKER
Set the bearing marker to display rotated image along the bearing signal.
Select "Rotate Step" and set the unit of angle for rotating the marker.
This function only works in Head Up (H-UP) mode.
8.8.5 OPERATION NUMERIC DISPLAY
Turn on/off the numeric display.
If this function is turned on, numeric information is displayed when following operation performed.
EBL/VRM/Parallel Cursor/Gain/Sea/Rain/Brill/PRF fine tuning
Numeric display is disappeared after the operation.
Select each setting item.
Press the cross key or turn the
MULTI
control to set the value.

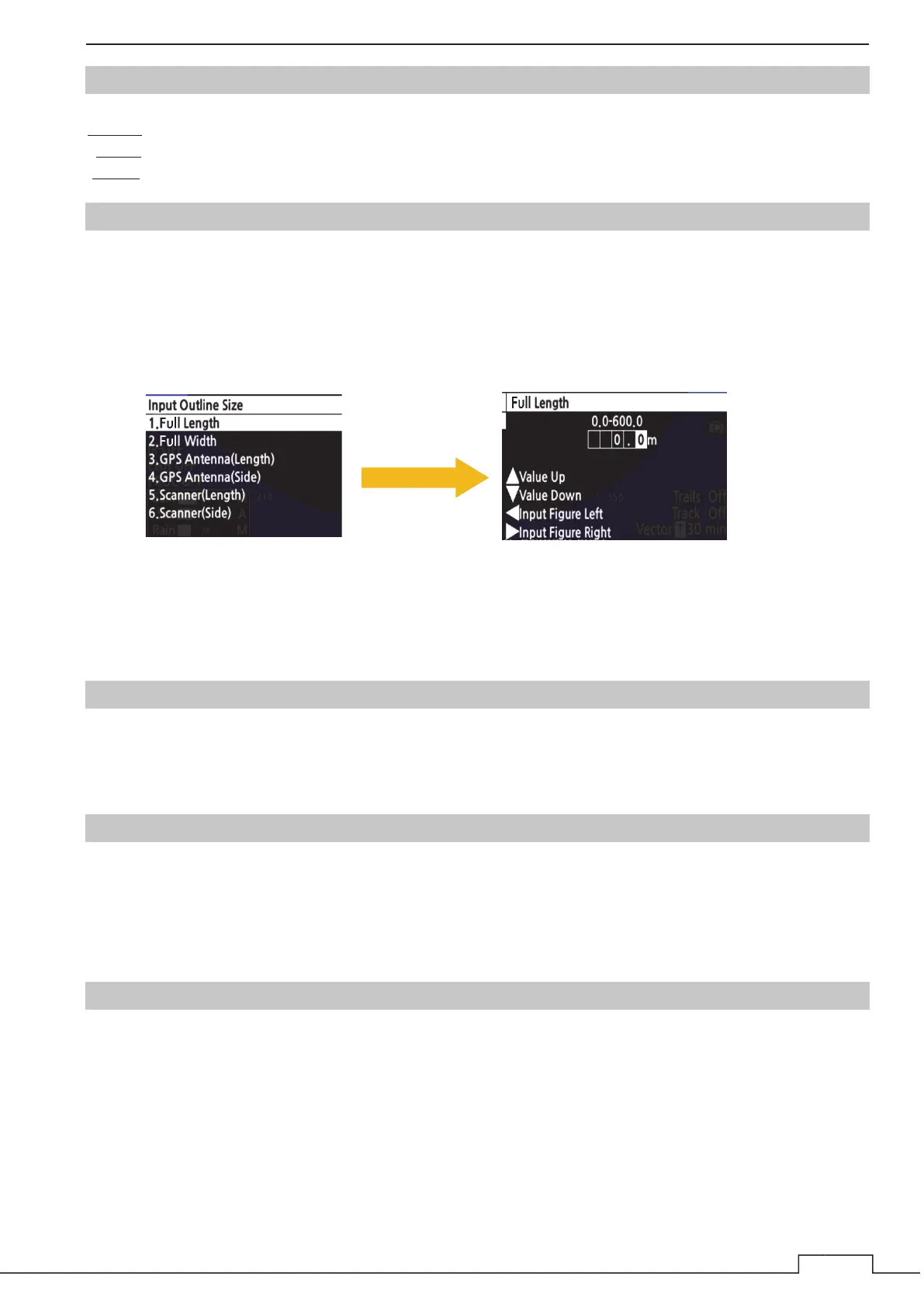

* The same operation can be used to enter
2. Full Width ~ 6.Scanner (side).
