Chapter 5 VARIOUS FUNCTIONS

5.34 SCREEN CAPTURE

This equipment has the screen capture function.

This function only works while the USB memory is inserted into the front USB port.

Note:

The rear USB port is for mouse / trackball connection only.

The captured images are saved to “JMA-3400\CAPTURE” folder in the USB memory.

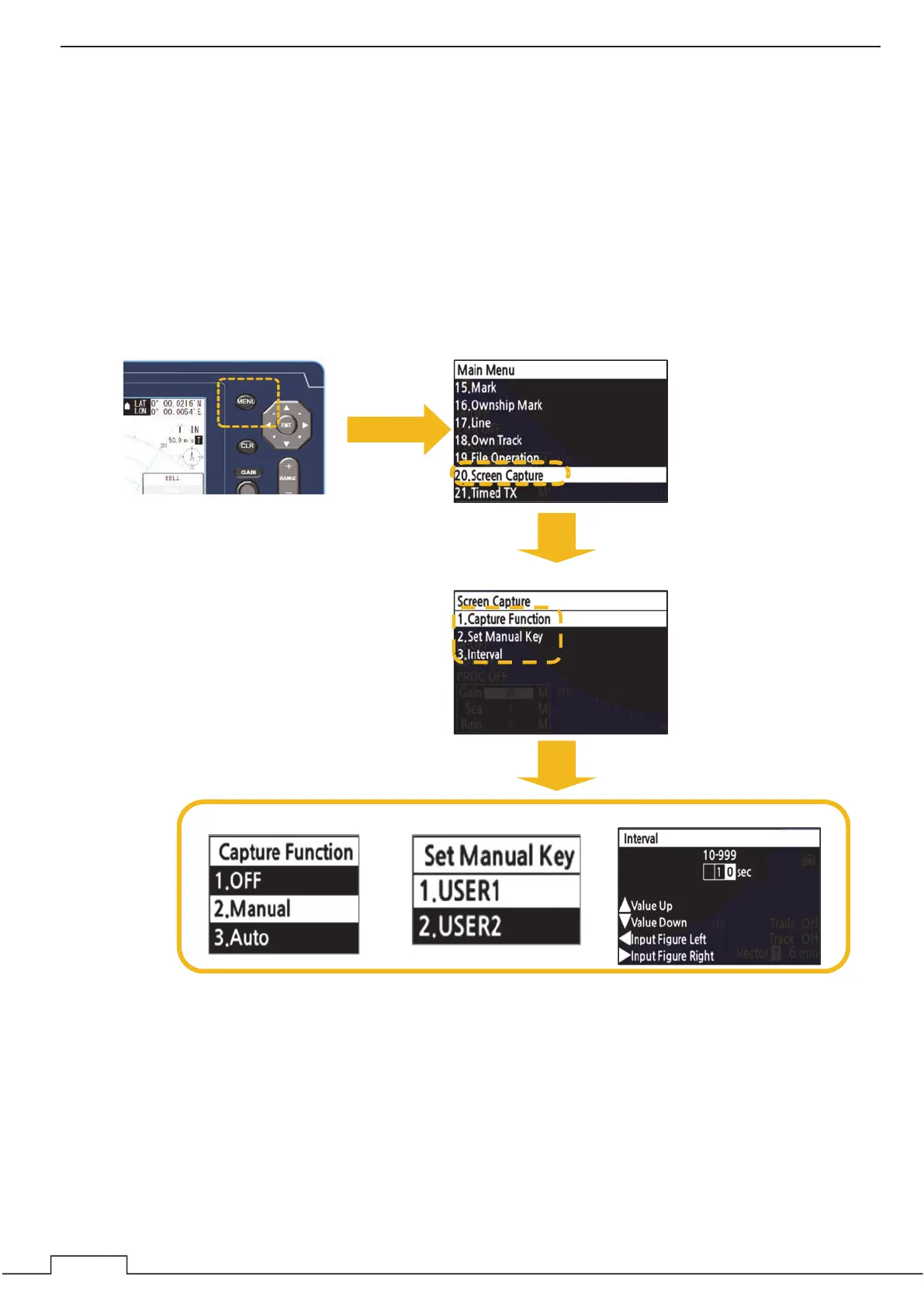

ձ Press the MENU button. ղ Select “Screen Capture”.

ճ Select each menu.

Interval

Set Manual Key

Capture function
