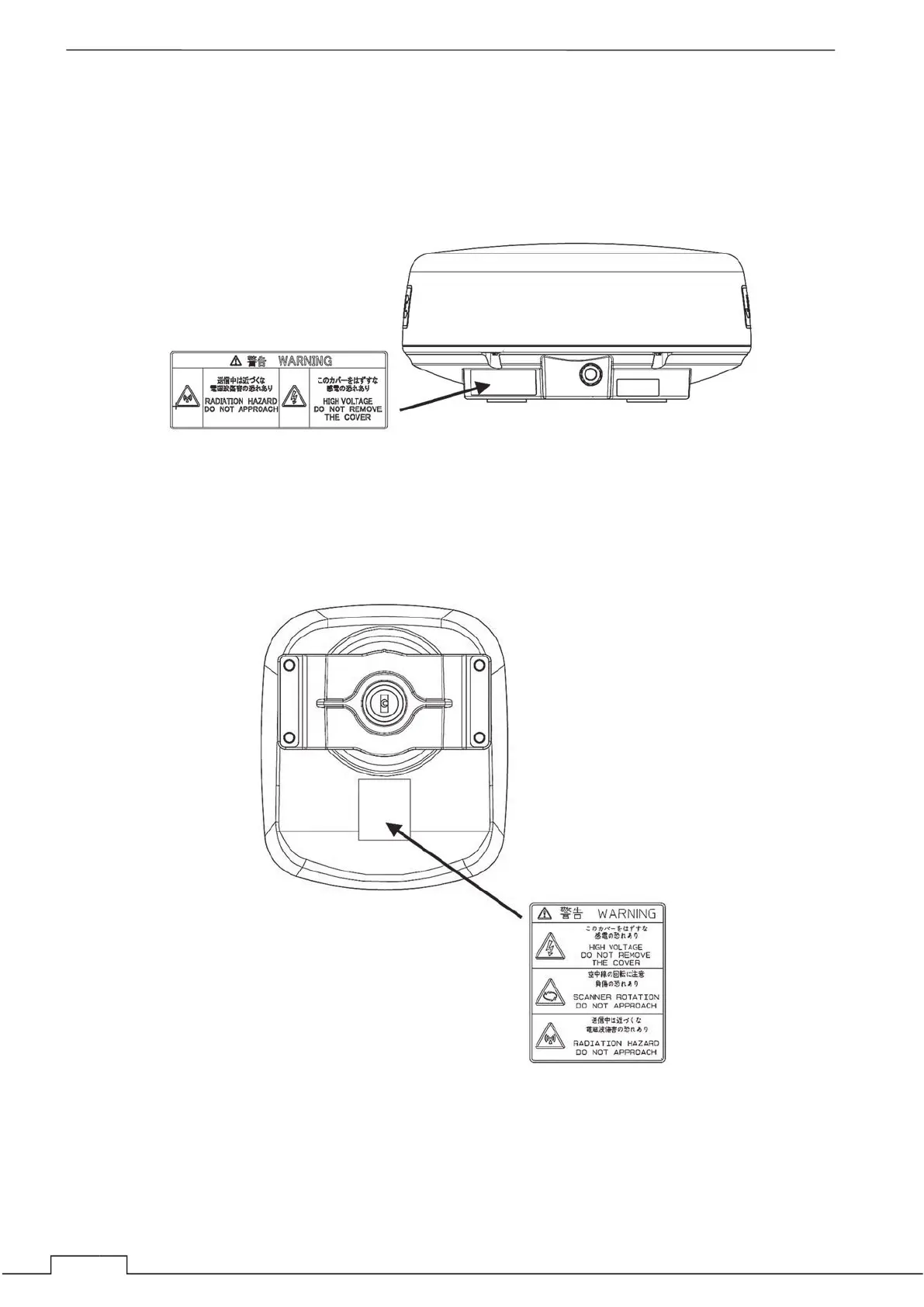

WARNING LABEL MOUNTING POINT

Warning label is patched on the equipment visible surface.

Do not try to remove, break or modify the label.

NKE-2043 SCANNER UNIT

NKE-2063A/AHS SCANNER UNIT
