Cha

ter 7 INITIAL SETTINGS

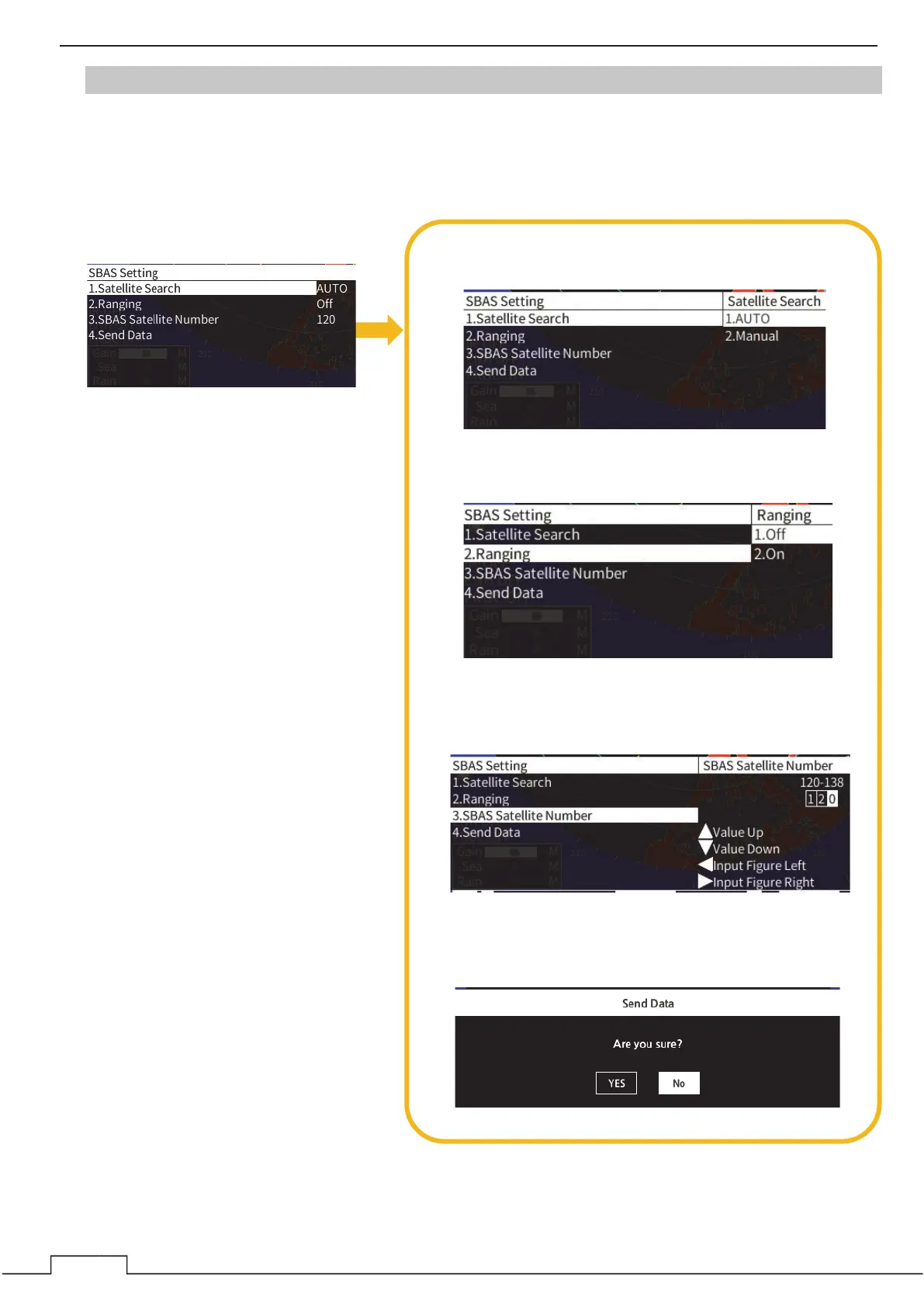

7.8.4 SBAS SETTING

AUTO: Automatically selects the SBAS satellite number.

Manual: Manually enter the SBAS satellite number.

Note: This setting is enabled when “Station Select” is set to ”Manual.”

Select each setting item.

Satellite Search

Select satellite search mode.

Ranging

Select ranging.

SBAS Satellite Number

Select SBAS satellite number.

Send Data

Sends the SBAS set value.
