Cha

ter 8 DETAIL PERFORMANCE SETTINGS

174

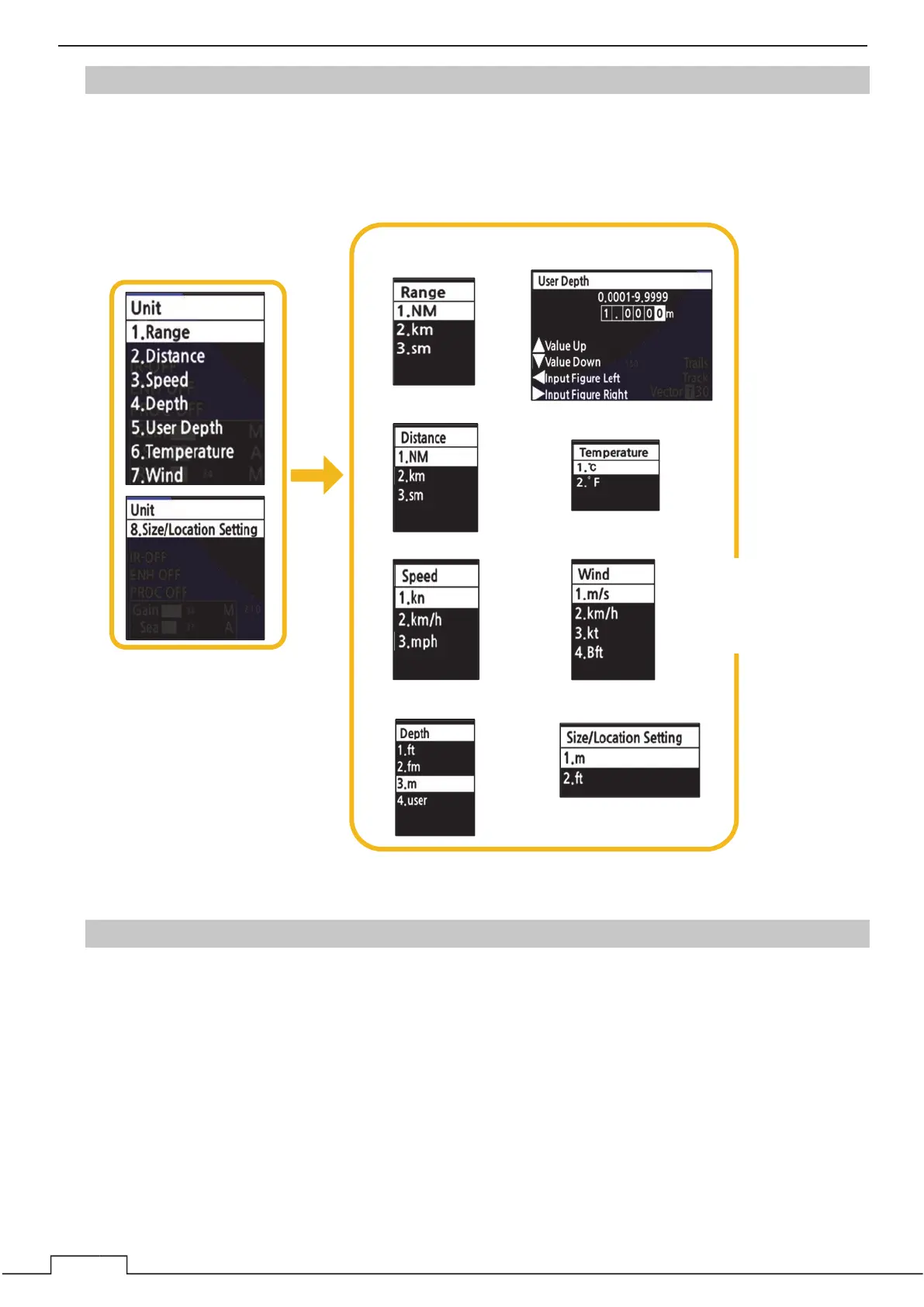

8.8.6 UNIT

Set the unit that you have accustomed.

8.8.7 MOVE OWN SHIP

It sets the used signal to a reference of how to move the ship.

Lat/Lon (latitude and longitude)

is initial

value. There is no need to change it if you have a stable operation of the radar.

Select each setting item.

Range

Distance

Speed

Depth

Temperature

Wind

User Depth

Size/Location Setting

* Need to receive True wind

speed for using Bft.
