Chapter 3 ADJUST THE RADAR ECHO

3.1 CHANGE RANGE

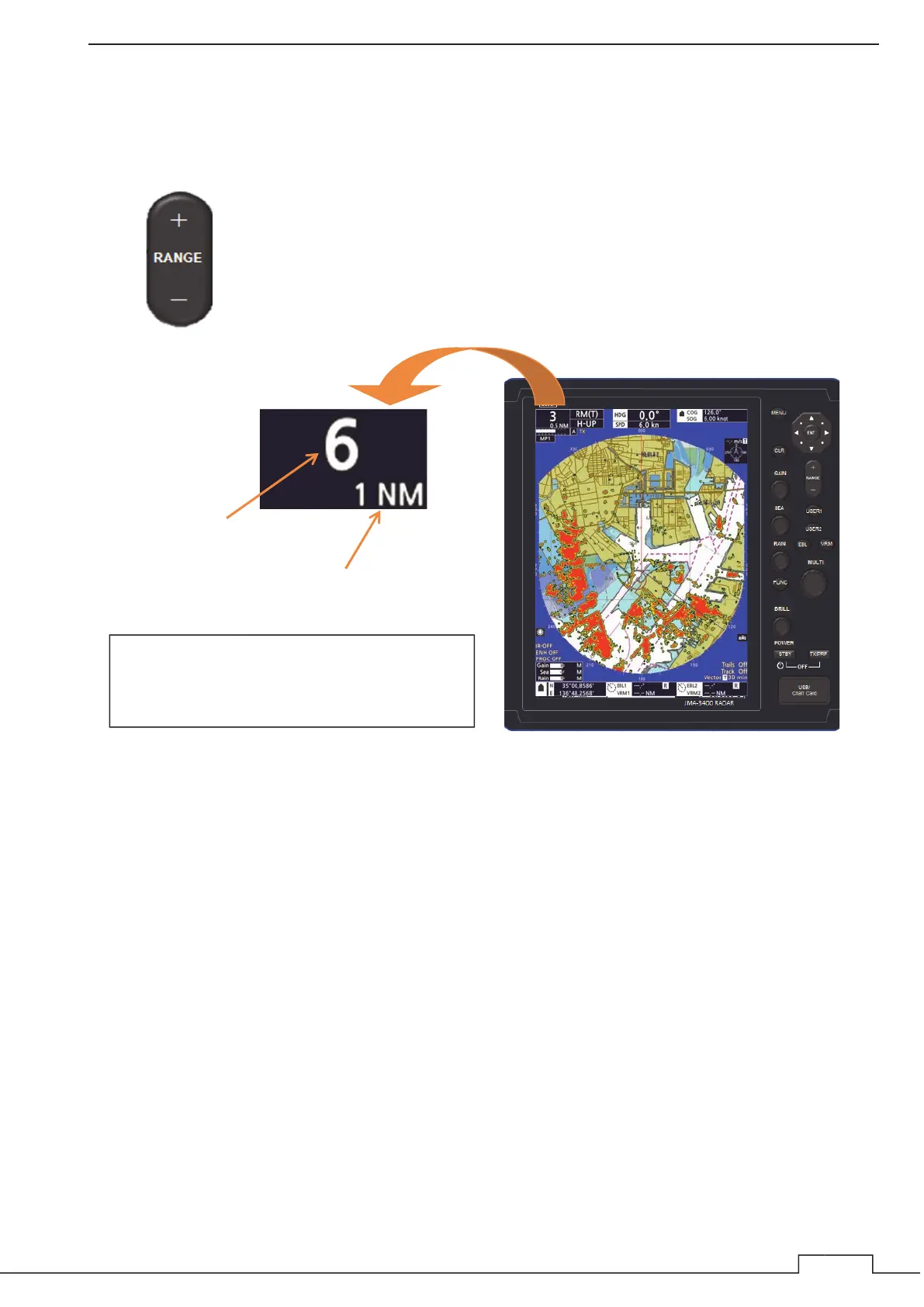

Pressing RANGE button + or - changes the observation range.

ە Press the RANGE 㸩 button Ѝ Extend the range

ە Press the RANGE 㸫 button Ѝ Reduce the range

Ran

Range ring interval

Range can be set from 0.125NM to 72NM.

* The maximum range of JMA-3404 and JMA-

3406/HS is 48NM.

Precautions before Operation3
