Chapter 1 INSTALLATION
1

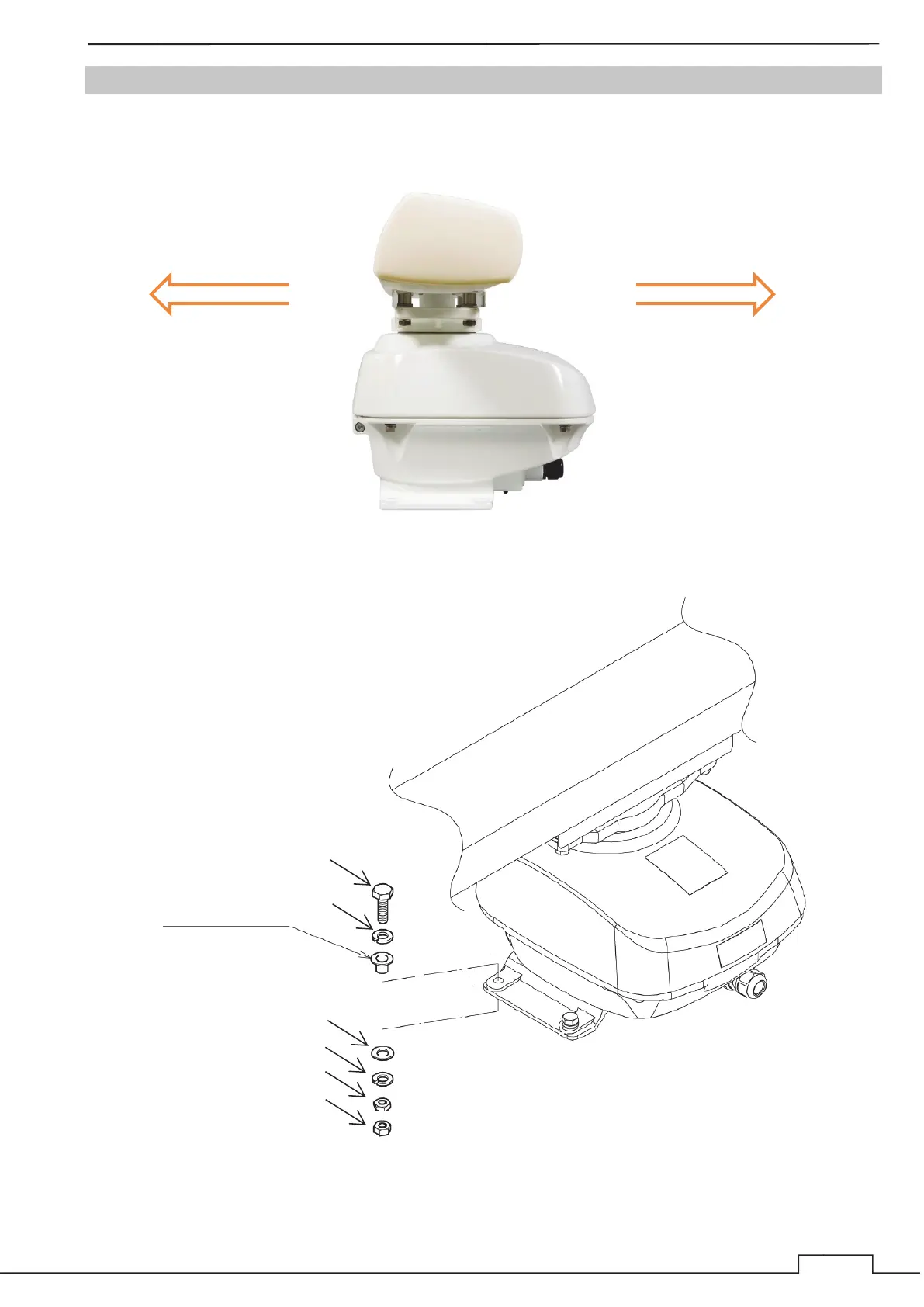

1.4.3 NKE-2063AHS SCANNER (3.9 FEET)
Install with the cable insertion port facing the stern.
We recommend minimizing the length by laying the cables along the mast.
Heading direction
Bow Stern
Fig. 1-4-2-1
îš„ Attach the scanner unit
îš„
îš„
îš„
Fig. 1-4-2-2
Pass the spring washer and brass washer through
the attached mounting bolts, and fix with the flat
washer, the spring washer, the nut, and the nut.
Brass washer
Fix the four mounting holes of the scanner unit with bolts.
bolt
Spring washer
Spring washer
Flat washer
nut
nut
To Next Page
