ter 8 DETAIL PERFORMANCE SETTINGS

8.9 DISPLAY SCREEN

You can set the display screen color.

Standby Numeric Display

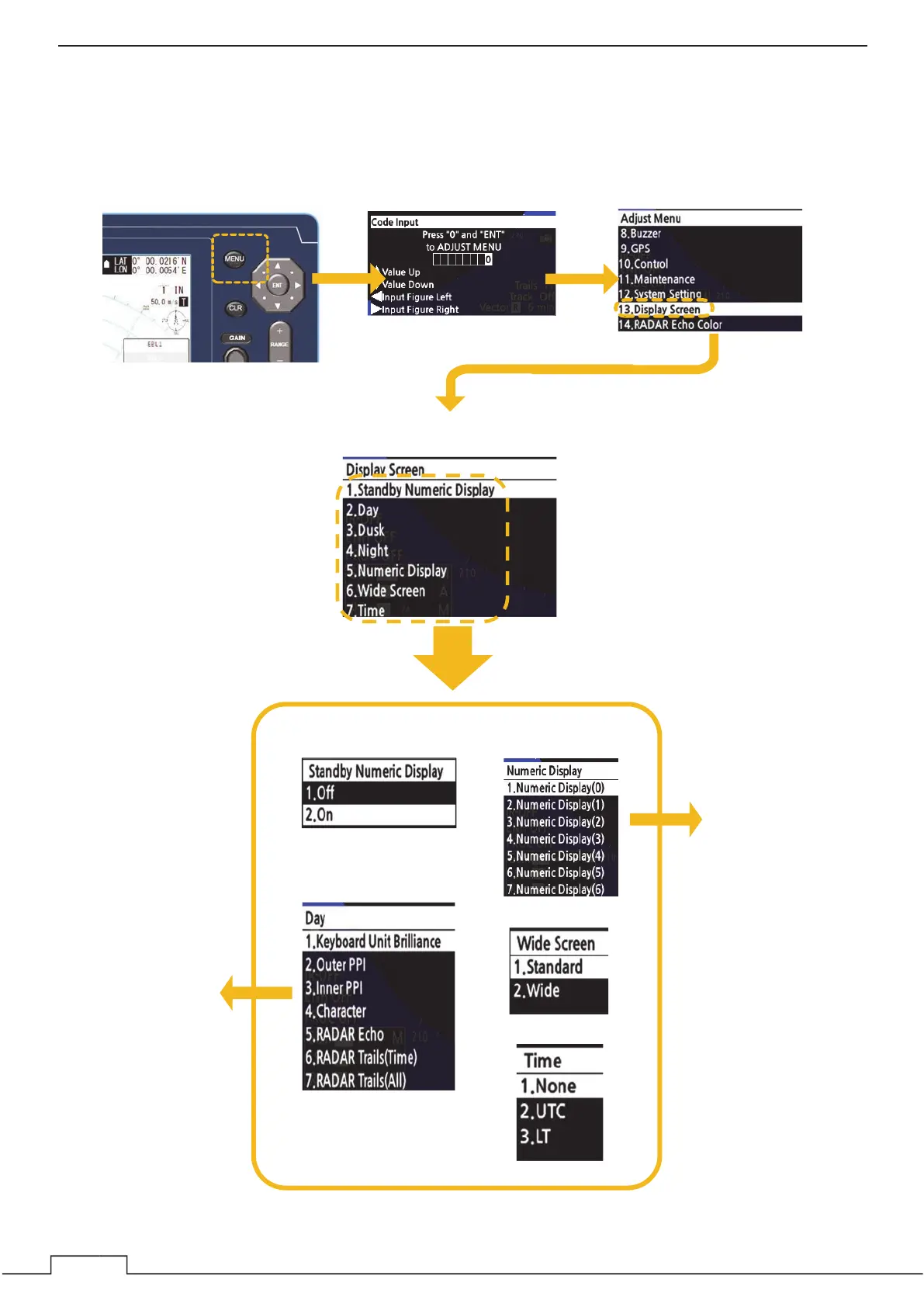

䐠 Input "0" and press ENT button. 䐟 Long press the MENU button. 䐡 Select "Display Screen".

Day/Dusk/Night

Numeric Display

Wide Screen

Time

䐢 Select each setting item.

To 8.9.3

To 8.9.2
