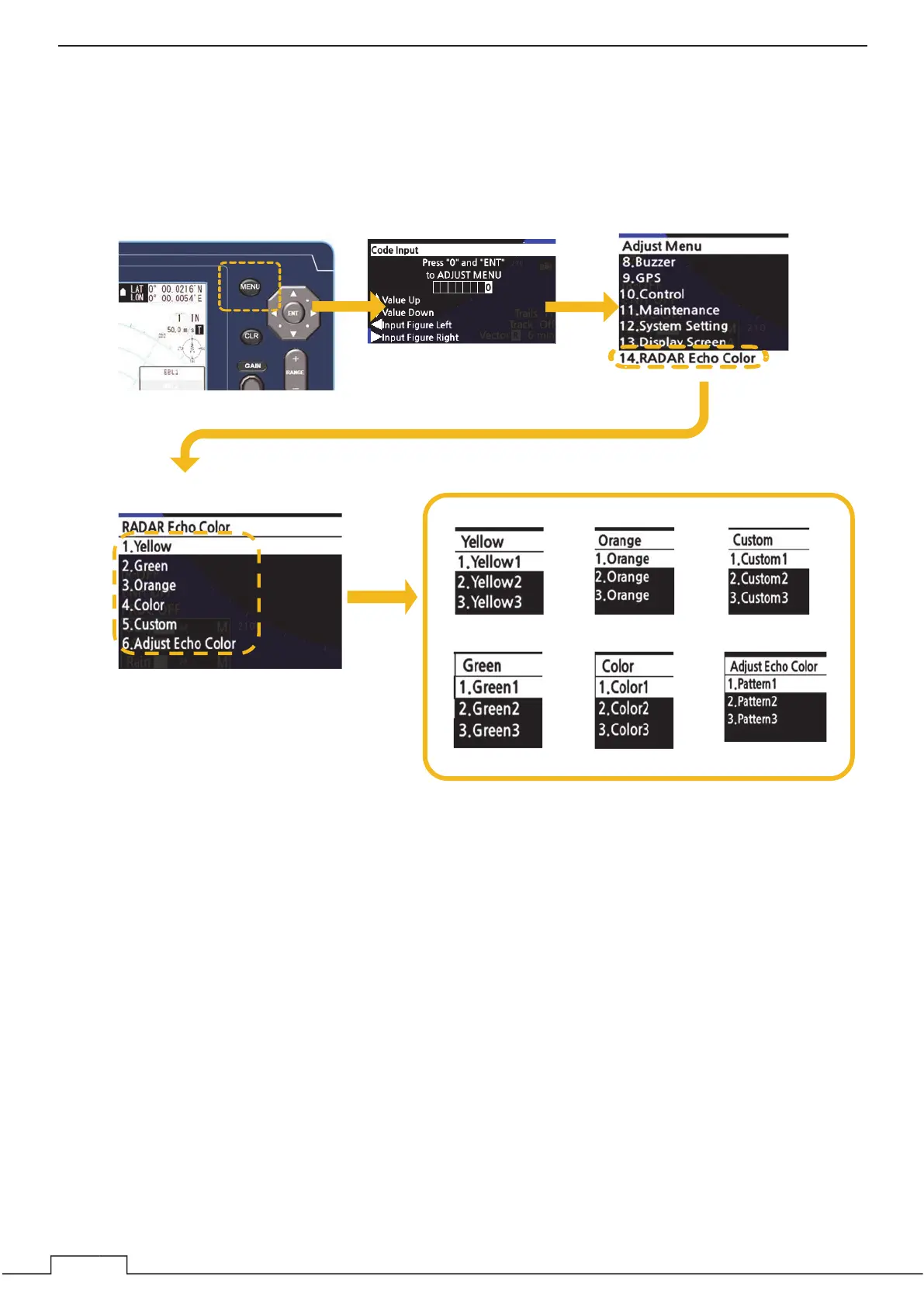

8.10 RADAR ECHO COLOR

Set the color of radar image.

Adjust the color so that easy to see while checking the display.

䐠 Input "0" and press ENT button.

䐢 Select each setting item.

䐟 Long press the MENU button.

䐡 Select "RADAR Echo Color".

Yellow

Green

Orange

Color

Custom

djust Echo Color
