JRC JMA-3400 Series User Manual

Chapter 8 DETAIL PERFORMANCE SETTINGS
1
85
Ch t
9
TRUE OR FALSE ECHOS ON DISPLAY

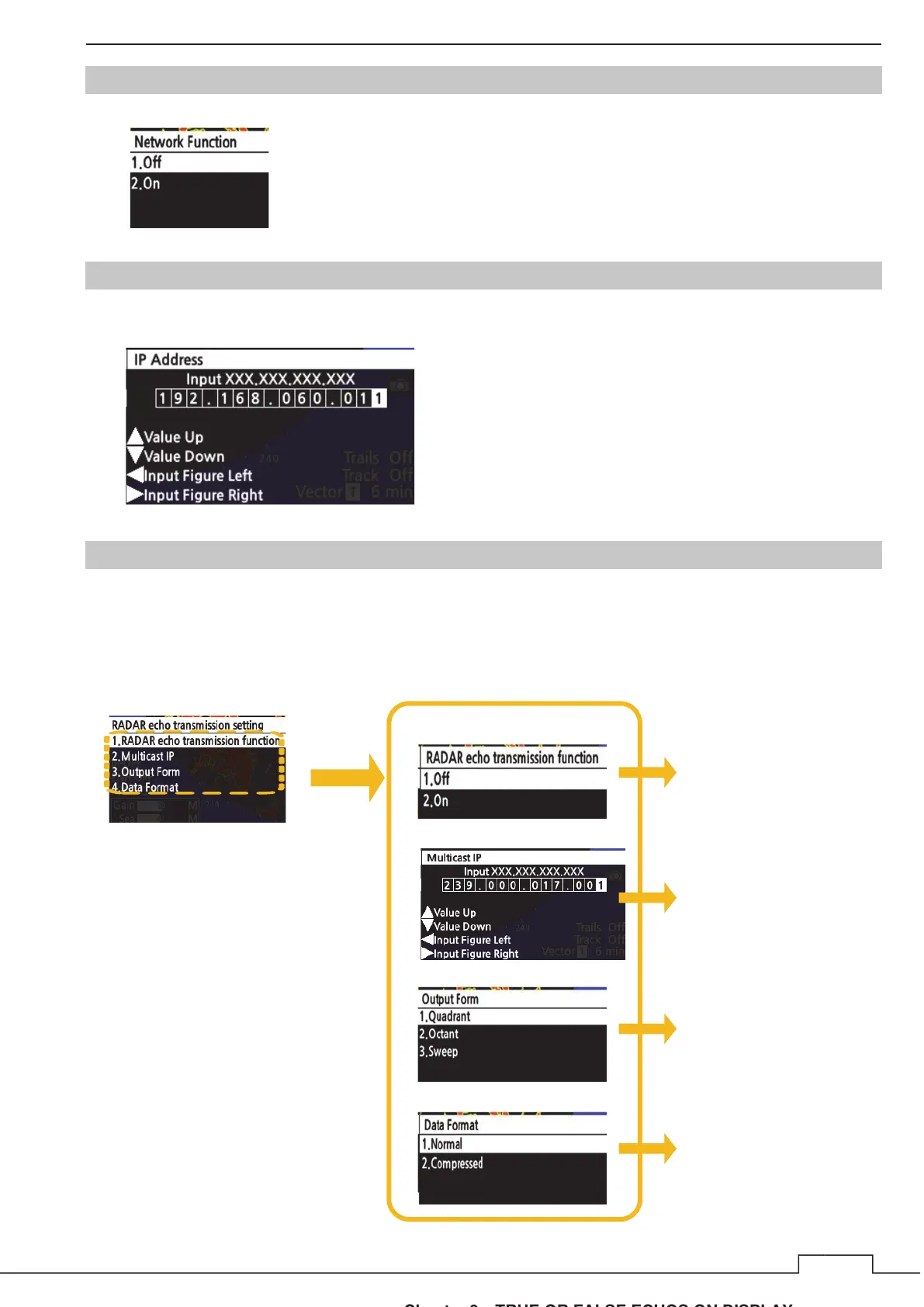

8.12.1 NETWORK FUNCTION
Toggle Network Function on and off.
8.12.2 IP ADDRESS
Set the IP Address of display unit.
Valid only when the 8.12.1 NETWORK FUNCTION is on.
8.12.3 RADAR ECHO TRANSMISSION SETTING
Set the transmission of radar echo image.
Valid only when the 8.12.1 NETWORK FUNCTION is on.
Select each setting item.
Data Format㻌
Multicast IP㻌
Output Form㻌
RADAR echo transmission function㻌
To 8.12.3.1㻌
To 8.12.3.2㻌
To 8.12.3.3㻌
To 8.12.3.4㻌
