Chapter 1 INSTALLATION

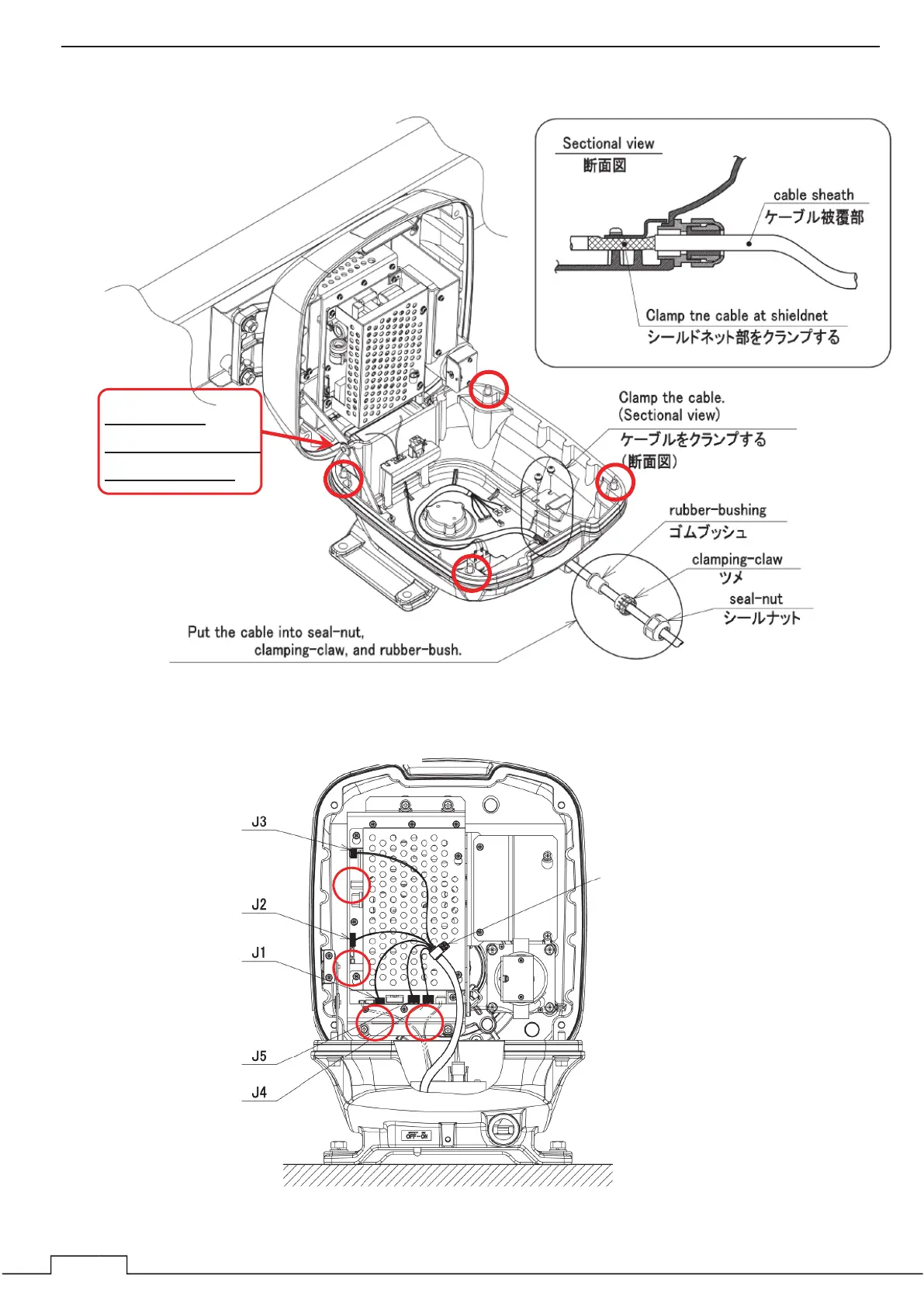

 Installing the scanner unit cable

Fig. 1-4-3-3

Fig. 1-4-3-4

Using a wrench (size 13), slowly open

the top cover while loosening

the four screws and

supporting the antenna.

If you open it

vigorously, the hinge

may be damaged.

Connect the connectors from J1 to J5.

Clamp cable at copper tape.

After connecting the

connector, close the upper

cover slowly and tighten the

four screws.
