Chapter 6 OPTION AND OTHERFUNCTIONS
1
2

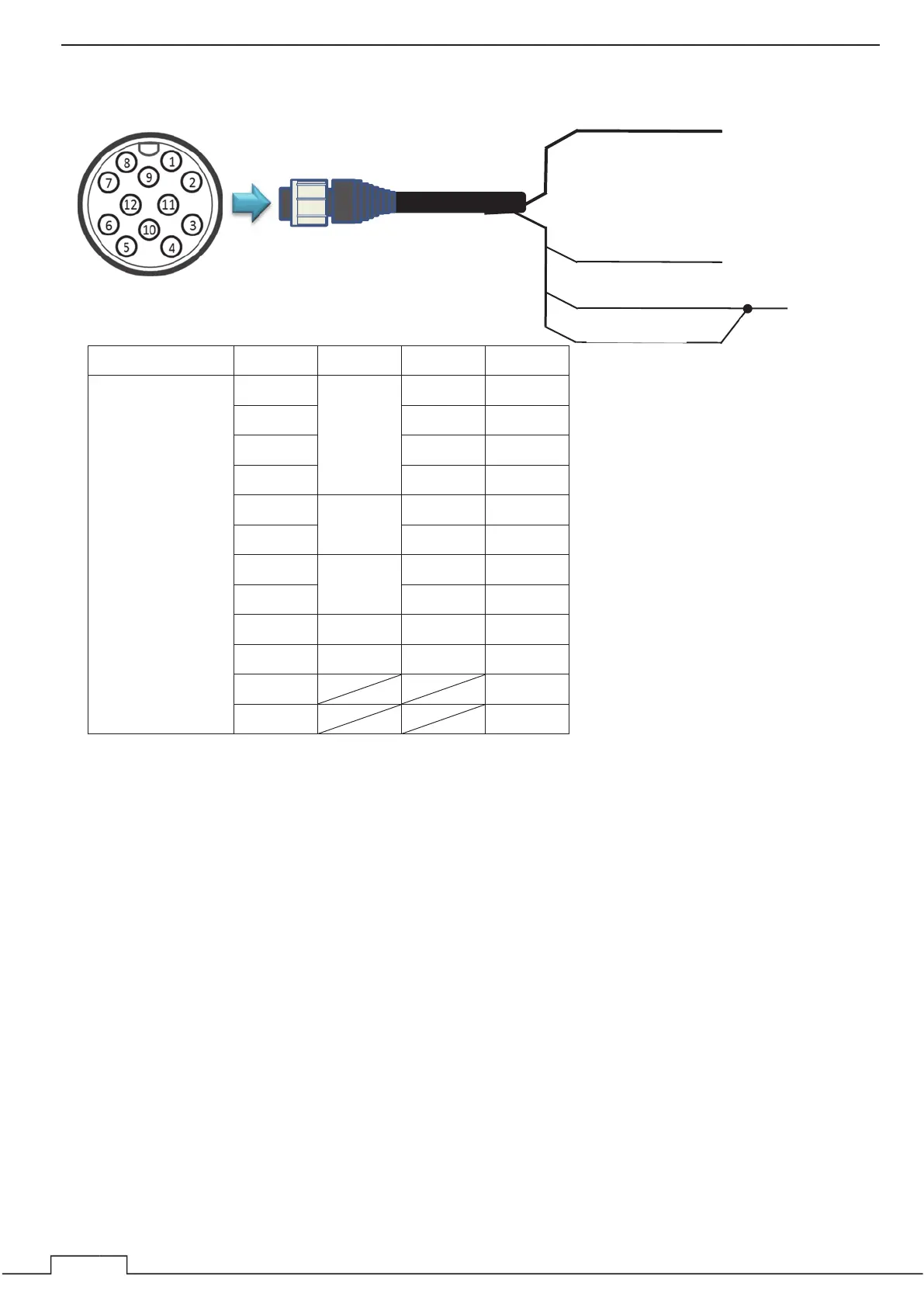

NMEA ALARM
Name Pin No. Signal I/O Color
NMEA_ALARM 1 NMEA3 RX+(A) Brown
2
RX㸫(B)
Red
3 TX+(A) Orange
4
TX㸫(B)
Yellow
5 EVENT + Green
6
㸫
Blue
7 ALARM COM Purple
8 NO Gray
9 GND
㸫
White
10 Shield
㸫
Black
11 Pink
12 Sky Blue
[Pink] Unused
[Black]
[Sky Blue]
Connect [Black]
and [SKY Blue]
cables and use
them as shield
wires.
Use the Brown, Red, Orange, Yellow,
Green, Blue, Purple, Gray and White
cables alone.
[Shield]
To Next Page
