Chapter 1 INSTALLATION
2

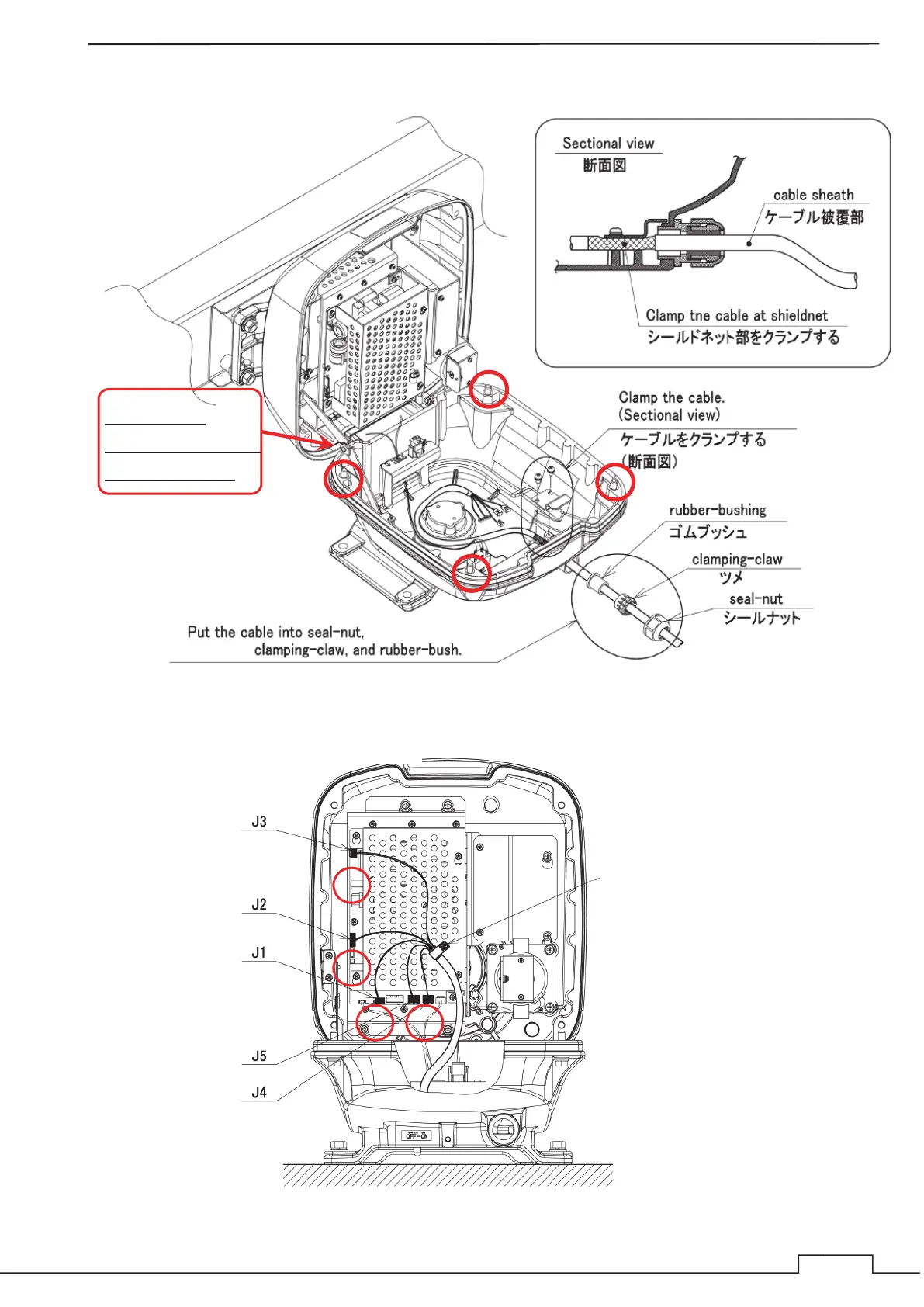

Installing the scanner unit cable
Fig. 1-4-2-3
-
Fig. 1-4-2-4
Using a wrench (size 13), slowly open
the top cover while loosening
the four screws and
supporting the antenna.
If you open it
vigorously, the hinge
may be damaged.
Connect the connectors from J1 to J5.
Clamp cable at copper tape.
After connecting the
connector, close the upper
cover slowly and tighten the
four screws.
To Next Page
