2-13 Section 2 Basic Operations and Mode Screen
2

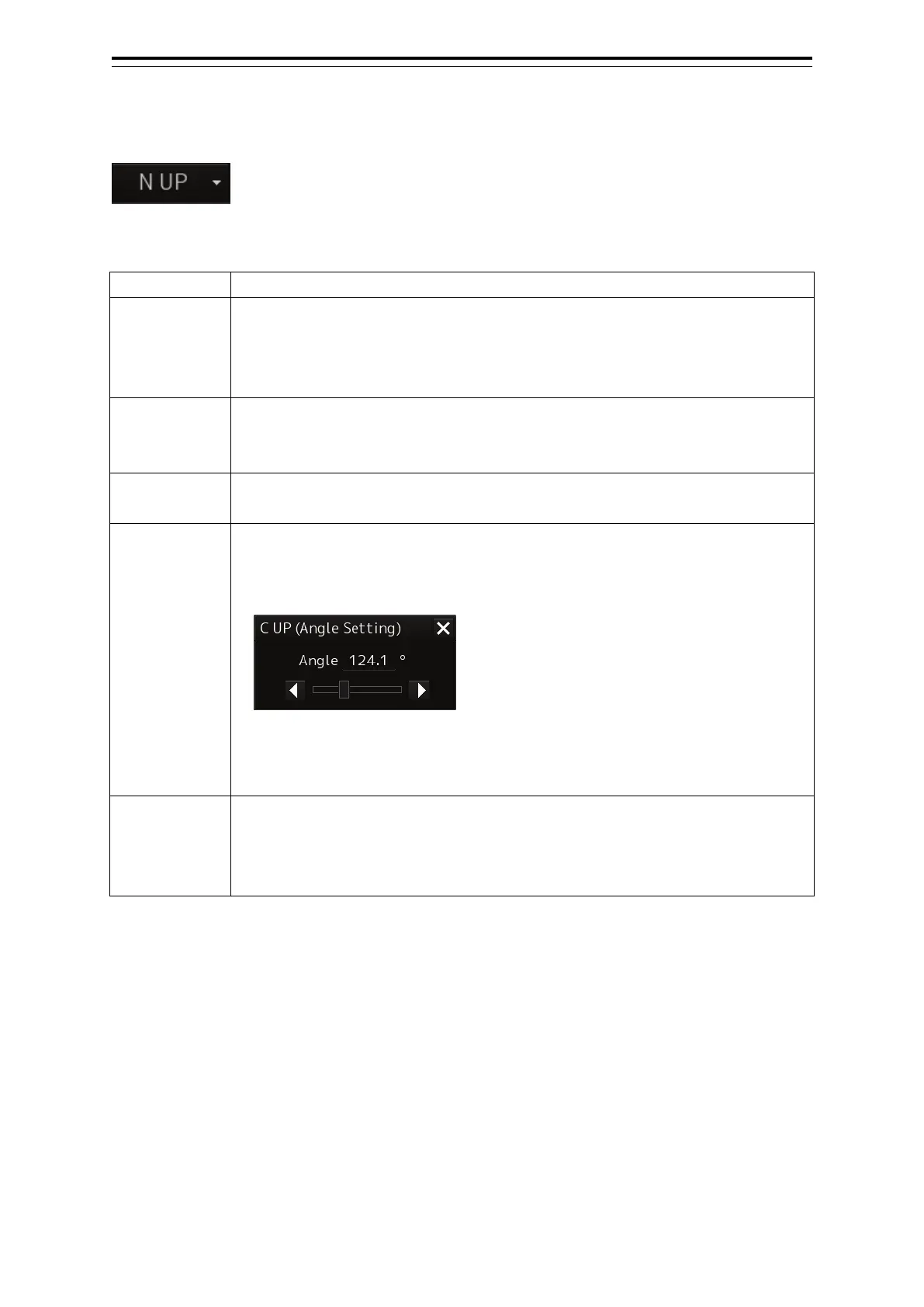

2.2.7.3 Direction mode combo box
Displays the current direction mode.
Select a direction mode from the combo box.
Click on the direction mode combo box to select a direction mode.
Setting item
Description
[N UP]
North Up (true bearing)
• The chart is displayed with the north always on top. It provides great chart
visibility because of no flickering of fixed objects, and the true bearing of each
object can be read easily.
[H UP]
Head Up (relative bearing)
• The chart is displayed with the ship's heading direction upward. It cannot be
selected in TM (true motion) or Fee mode.
[C UP]
Course Up display
• The ship's heading direction (HDG) is fixed on top in course up mode.
[C UP (Angle
Setting)...]
Course Up display (course angle setting)
• Select this to display the [C UP (Angle Setting)] dialogue. The course angle
(heading angle) set on the dialogue is fixed on top of the screen.
- Enter the angle in the [Angle] field on the [C UP (Angle Setting)] dialogue.
- Move the angle input slider to adjust the value.
-
Click on [

] to complete the input.
[D UP]
Destination Up
• To WPT (destination) is always displayed in the upper section of the screen. It
can be selected only if the motion mode is RM (relative motion) and during route
monitoring.
