4-9 Section 4 Route Planning
4
(5) [
] (close) button
Click on this button to determine the route and exit the creation process.

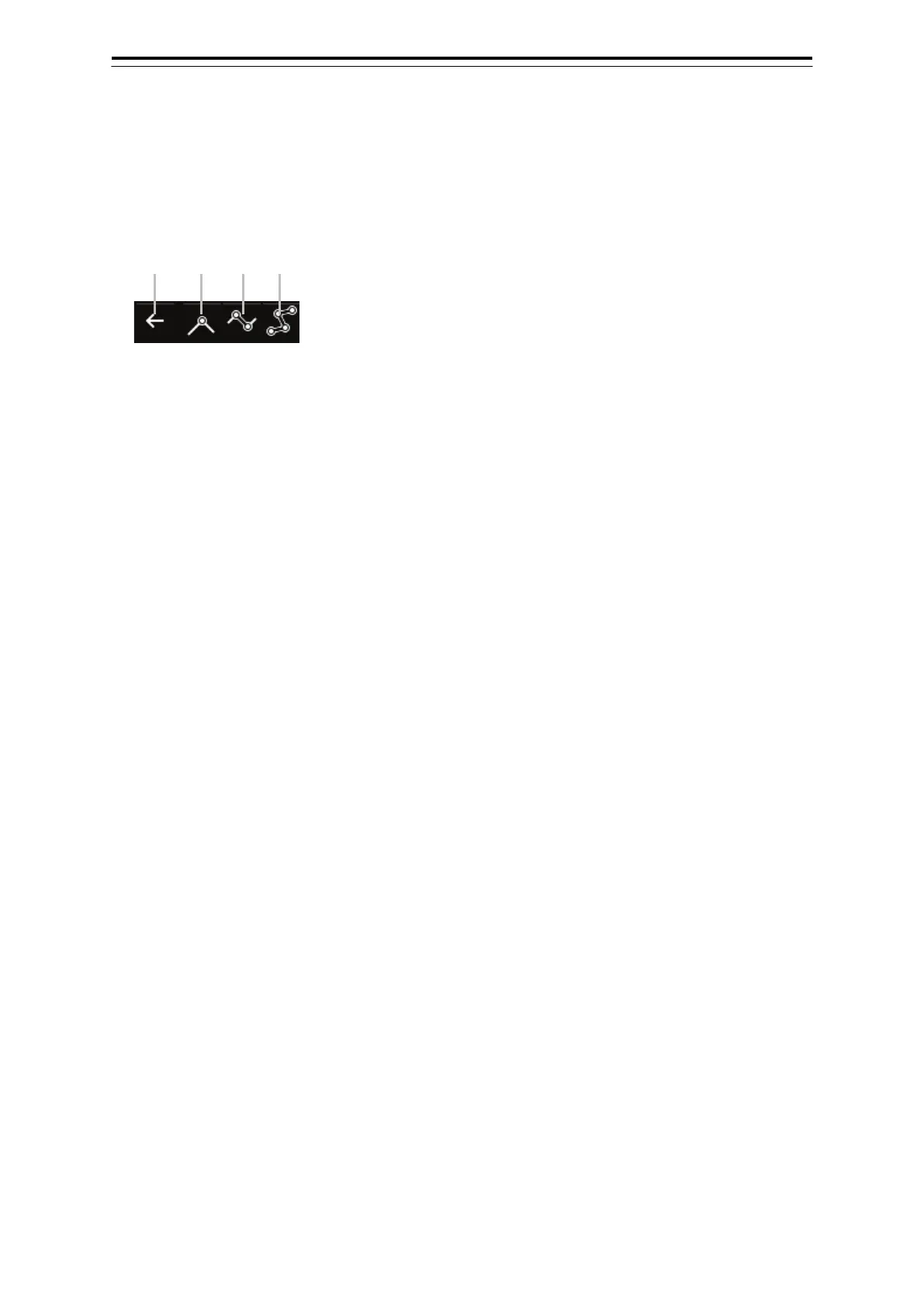

(6) Display area switching buttons
Use these buttons to change or scale up/down the display area as needed.
(a) [Previous] button
Returns to the previous display area or scale.
(b) [Display centred WPT] button
WPT being edited is displayed in the centre of the chart.
(c) [Display WPT-WPT] button
WPT being edited and the previous WPT are displayed on the chart.
(d) [Display entire route] button
The entire route being edited is displayed on the chart.
(7) [Destination List] dialogue button
Click on this button to open the [Destination List] dialogue.
Proposed destinations registered and their positions (latitude and longitude) are displayed on the
[Destination List] dialogue. Routes can be edited while referring to the [Destination List] dialogue.
When both the [Route List] dialogue and [Destination List] dialogue are open, the [Destination List]
dialogue is not editable.
(8) [Delete] button
Click on this button to delete the line of the selected destination number.
(9) Route List
Up to 20 proposed destination can be registered for one route.
Only a proposed destination number can be entered.
