power supply balances the electrical load without interruption. The services gateway reassesses the power
required to support the services gateway configuration and issues error messages if the available power
is insufficient.
For instructions on installing the power supply, see “Installing the SRX4600 Services Gateway AC Power
Supply” on page 93.
WARNING: The services gateway is pluggable type A equipment installed in a
restricted-access location. It has a separate protective earthing terminal provided on
the chassis in addition to the grounding pin of the power supply cord. This separate
protective earthing terminal must be permanently connected to earth ground. See
“Connecting Earth Ground to an SRX4600 Services Gateway” on page 74.
Figure 16 on page 37 shows the location of one bicolor LED on the faceplate of an AC power supply. This
LED displays information about the status of the power supply.

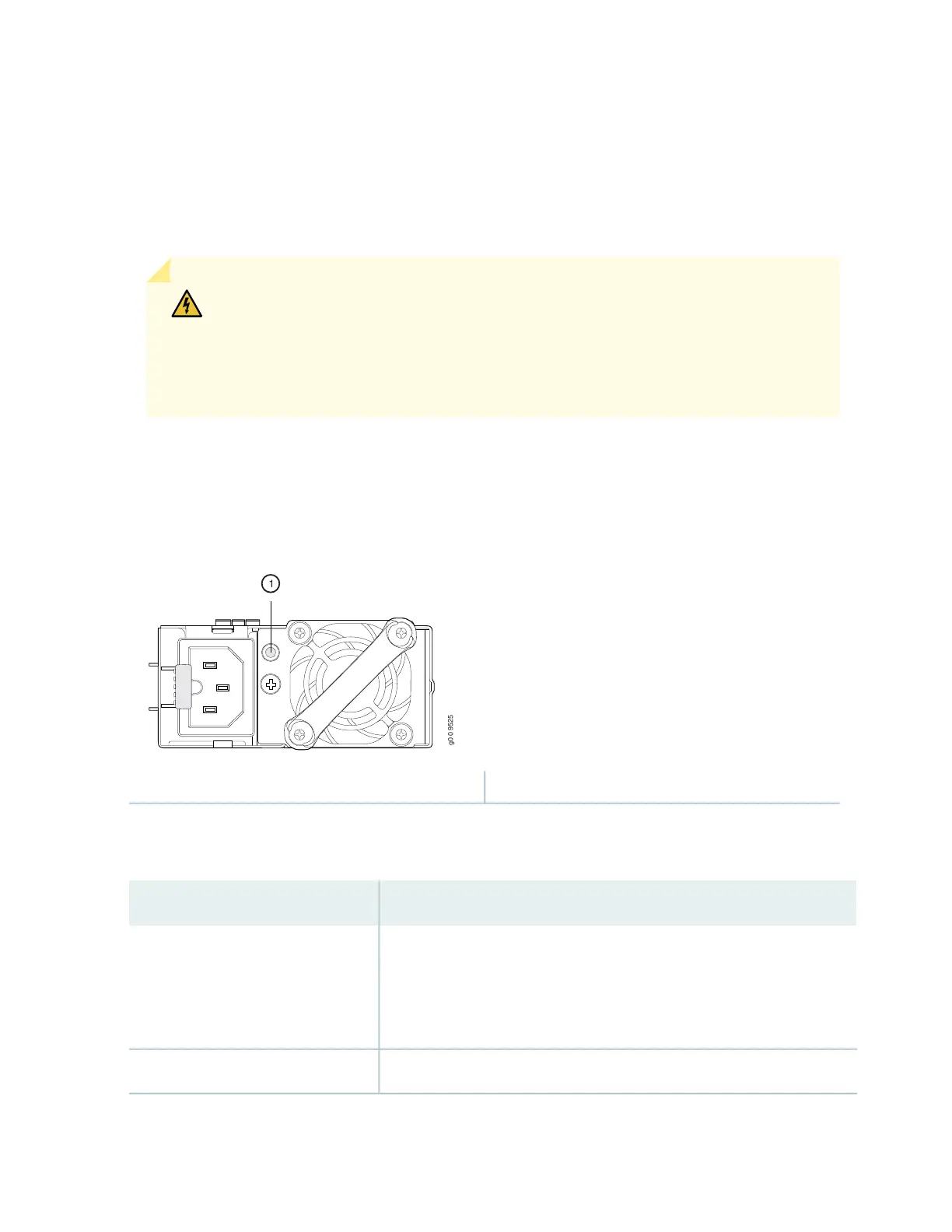

Figure 16: Location of AC Power Supply LED
1—AC power supply LED
Table 12 on page 37 describes the LED on an AC power supply in an SRX4600 services gateway.
Table 12: AC Power Supply LED
DescriptionLED State
Indicates one of the following:
•
Power supply is disconnected from AC power feed.
•
AC power input voltage is not within normal operating range.
•
No AC power input.
Unlit
On steadily—Power supply is functioning normally.Green
