To install the fan module, see (Figure 33 on page 89):
1. Attach the ESD grounding strap to your bare wrist, and connect the strap to the ESD point on the
chassis.
2. Remove the fan module from its bag.
3. Hold the handle of the fan module with one hand and support the weight of the module with the other
hand. Place the fan module in the fan module slot on the rear panel of the services gateway and slide
it in until it is fully seated.
4. Tighten the captive screws on the faceplate of the fan module by using the screwdriver.

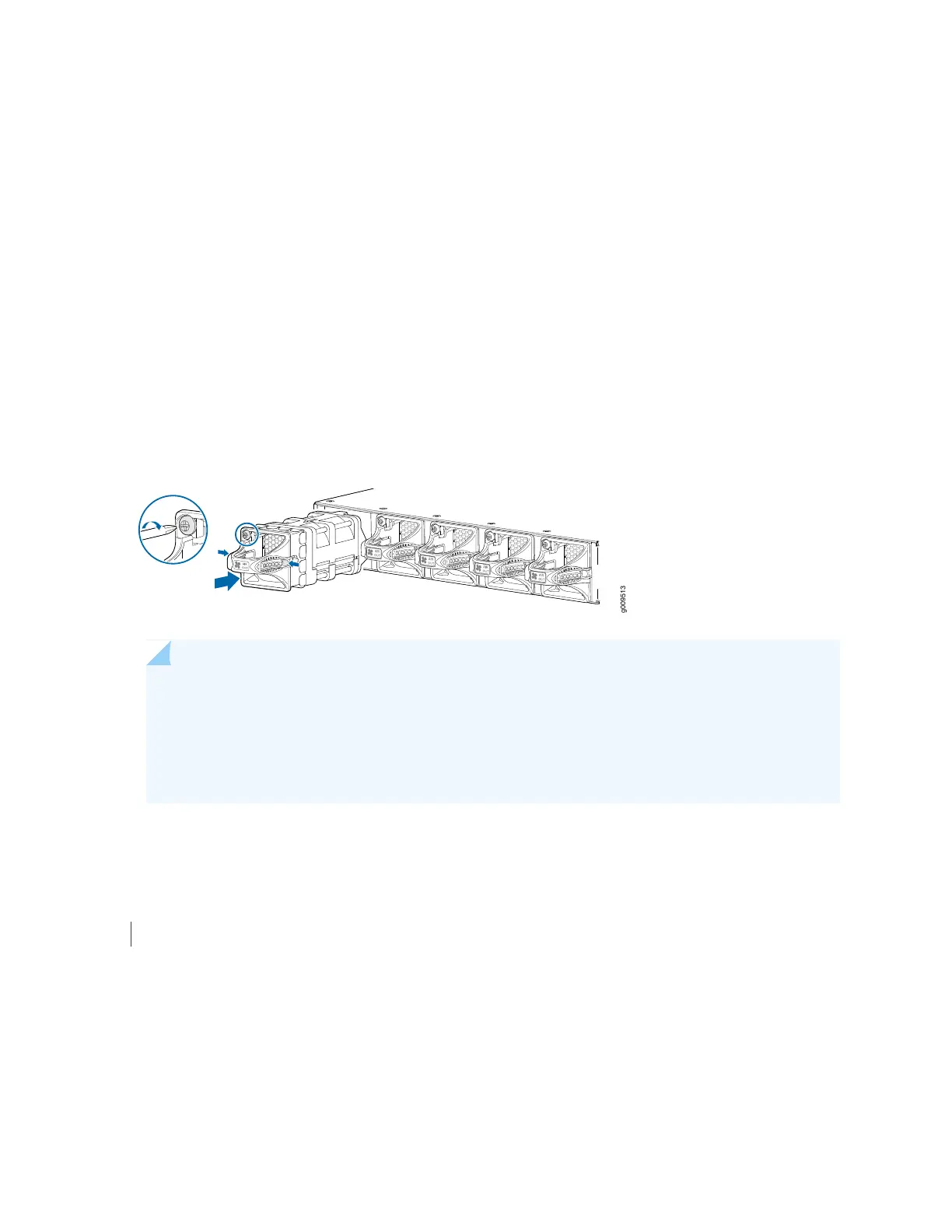

Figure 33: Installing a Fan Module
NOTE: If you have a Juniper J-Care service contract, register any addition, change, or upgrade
of hardware components at
https://www.juniper.net/customers/support/tools/updateinstallbase/ . Failure to do so can
result in significant delays if you need replacement parts. This note does not apply if you replace
existing components with the same type of component.
RELATED DOCUMENTATION
Understanding the SRX4600 Services Gateway Cooling System and Air Flow | 32
