Changing Lighting Method (Switching Lighting)
7-9
Improving Images

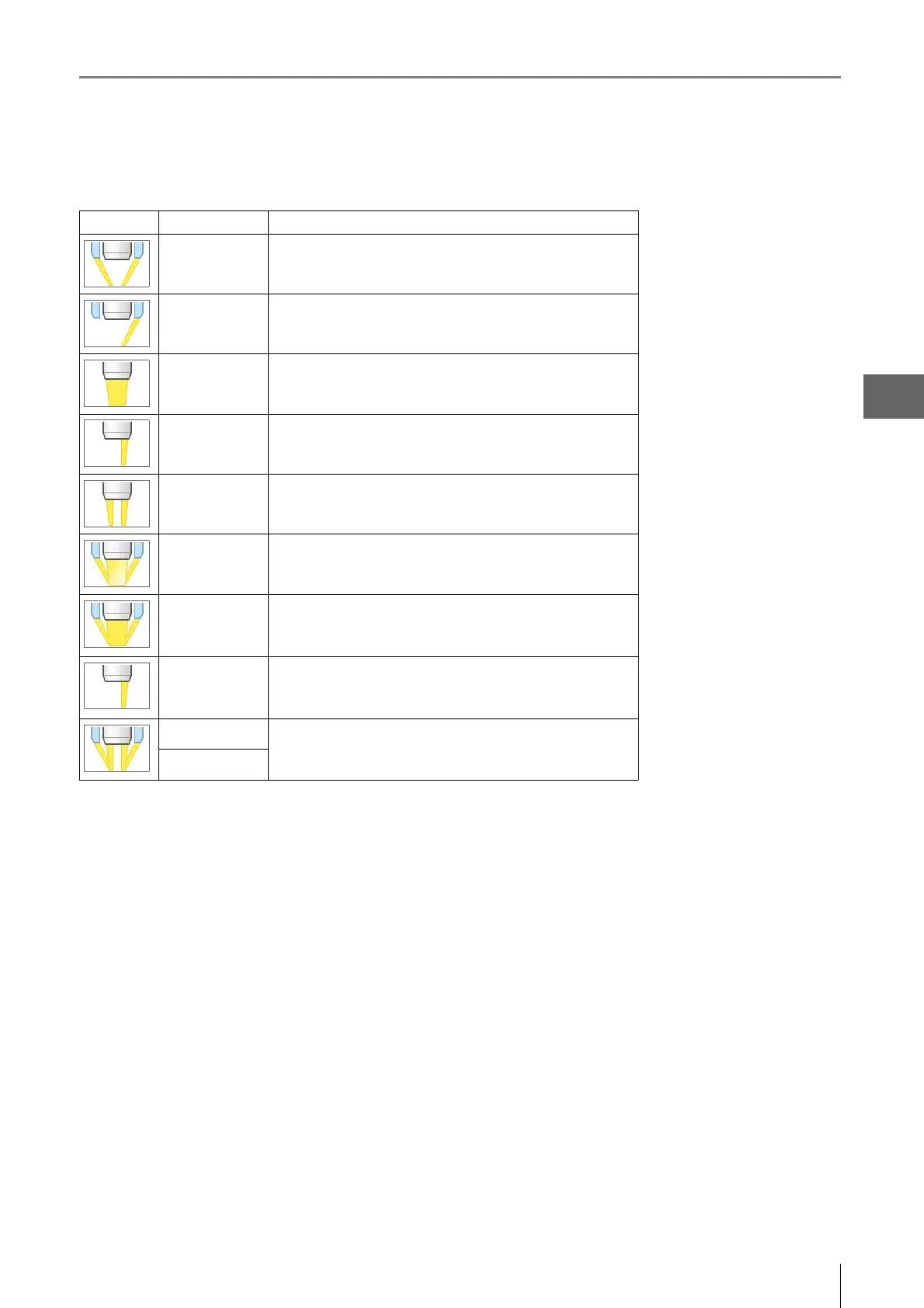

Lighting available at VHX-5000 and features
* Displayed when using previously available fiber cables.
Lighting Feature
Full ring
Observation in dark field is possible.
Partial ring Observation in partial dark field is possible to emphasize height
differences such as scratches.
Full coaxial Observation in bright field is possible.
Partial coaxial 1 Observation in partial bright field is possible to emphasize height
differences such as scratches.
Partial coaxial 2 Observation in bright field with the brightness of center being
reduced is possible.
Mix Mixing condition of Full ring and Full coaxial can be adjusted.
Coaxial 2 * Lighting method varies according to the fiber cable used.
General lighting: Full coaxial
Lighting when using base unit: Mixing of Ring and Full coaxial
Coaxial 1 * Lighting method varies according to the fiber cable used.
General lighting: Partial coaxial 1
Lighting when using base unit: Partial ring
Ring * Lighting method varies according to the fiber cable used.
General lighting: Partial coaxial 2
Lighting when using base unit: Ring
Partial coaxial 2 *
