Keysight Technologies B2900 Series User Manual

Keysight B2900 User’s Guide, Edition 5 6-9
Function Details
Sweep Output
Sweep Output
The source/measure unit SMU can apply a sweep voltage or current. It supports
several shapes of sweep output, as shown in Figure 6-3. The SMU not only performs
the sweep output but performs the measurement for each sweep step as shown in
Figures 6-1 and 6-2.

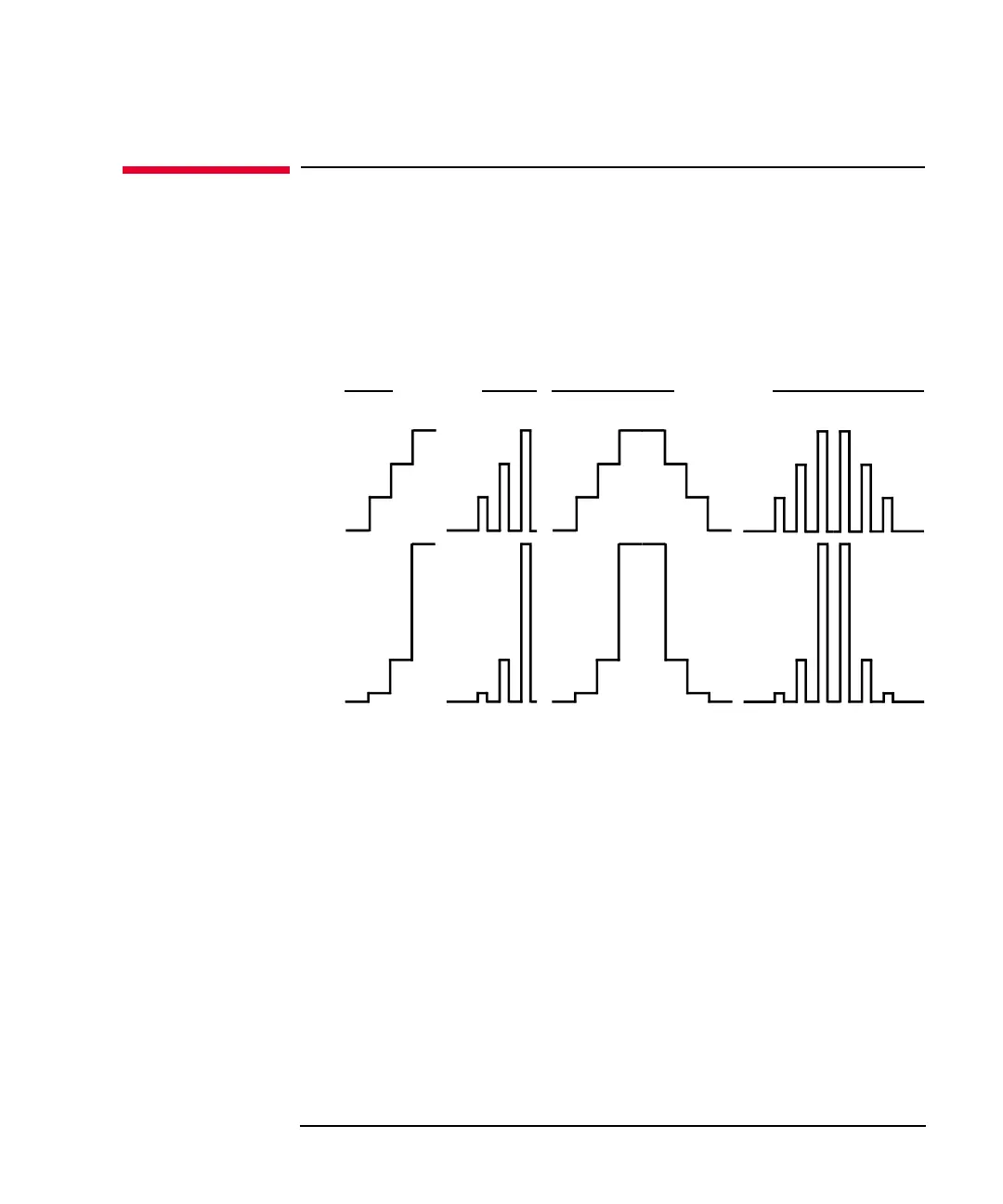

Figure 6-3 Variety of Sweep Outputs
To Set Sweep Output
The following points must be noted when setting the sweep output.
• To set the staircase sweep source, see “Sweep parameters” on page 4-13.
• To set the ranging mode of the sweep source, see “Sweep dialog box” on page
4-29.
• To set the sweep direction, see “Sweep dialog box” on page 4-29.
• To set the output condition after sweep, see “Sweep dialog box” on page 4-29.
• To set the pulse delay time and the pulse width, see “Pulse parameters” on page
4-16.
• To set the list sweep source, see “List sweep setup” on page 4-14.
Single Sweep
Double Sweep
Linear Sweep
Logarithmic Sweep
DC output
Pulse output
DC output
Pulse output
Pulse output
Pulse output
DC output
DC output
