6-6 Keysight B2961A/B2962A User’s Guide, Edition 3
Function Details
Measurement Time
2. Measure delay
The measurement delay time is defined as the time from trigger to start of a
measurement.
3. Source wait
The source wait time is defined as the time the source channel cannot change the
output value after starting an output.
4. Measure wait
The measurement wait time is defined as the time the measurement channel
cannot start measurement after starting an output.
5. Period
The period is the trigger interval. It can be defined for the TIMER or MANUAL
trigger type (trigger source) and for the source output and measurement actions
individually.

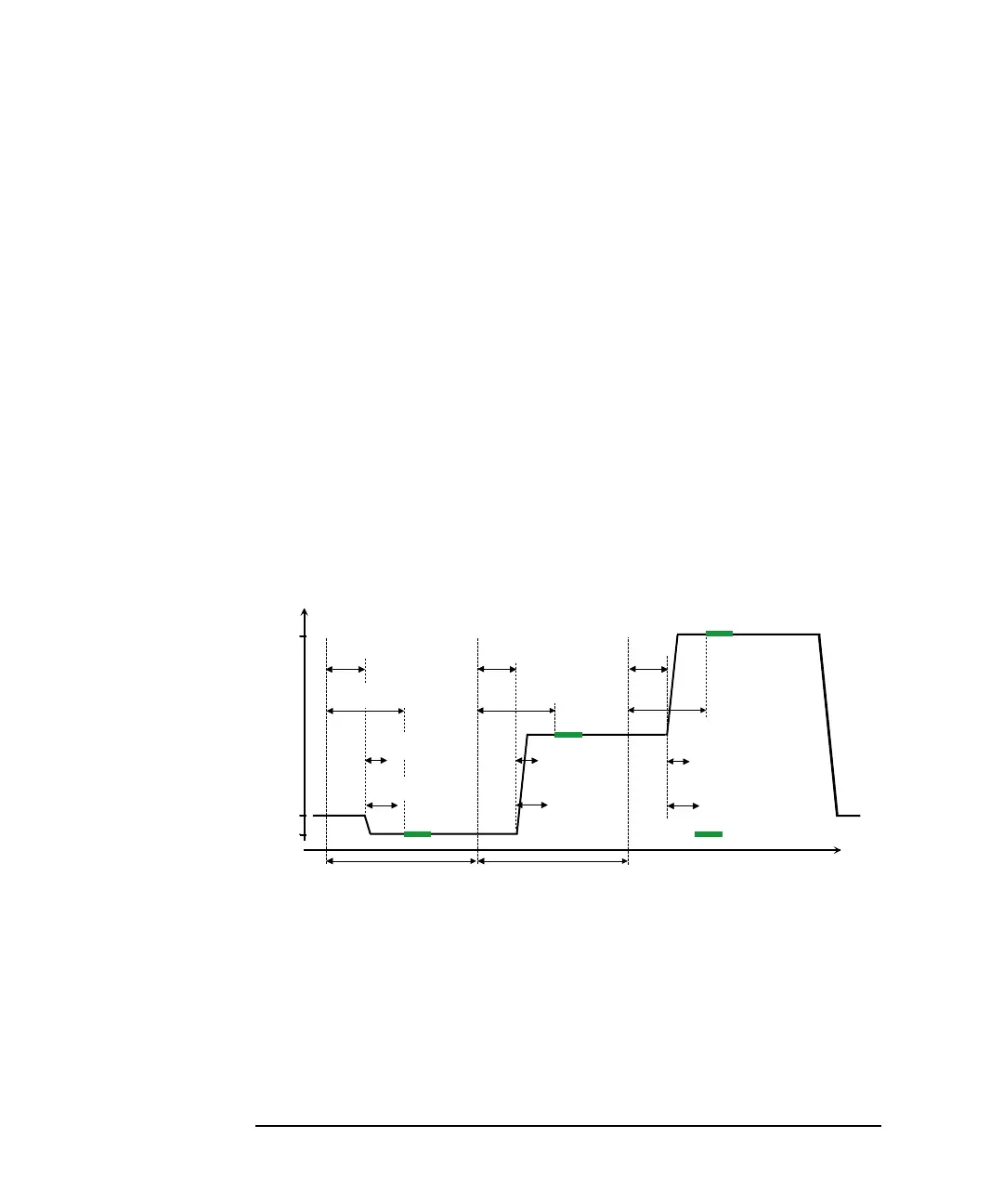

Figure 6-1 Source Output and Measurement Timing, Sweep Output Example
To set the delay time and the period, see “Trigger Parameters” on page 4-20.
To set the wait time, see “Wait Control dialog box” on page 4-31.
For more information about the trigger setup, see “Trigger key group” on page 4-35.
Voltage or current
Start value
Previous value
Trigger
: Measurement
Time
Stop value
Source wait (3)
Measure wait (4)
Trigger
Trigger
Source delay (1)
Period (5)
(2)
(2)
(4)
(3)
(1) (1)
(4)
(3)
(5)
Measure delay (2)
