Keysight B2961A/B2962A User’s Guide, Edition 3 6-11
Function Details
Arbitrary Waveform Output
Arbitrary Waveform Output
The channel can also apply an arbitrary voltage/current waveform. It supports
several waveform output functions, as shown in Figure 6-5. This function can be
used in the DC voltage/current output range.
To set an arbitrary waveform output parameters, see “Function Parameters” on page
4-13. To set the user defined waveform data values, use the User Defined Waveform
dialog box. See “User Defined Waveform Setup” on page 4-16.

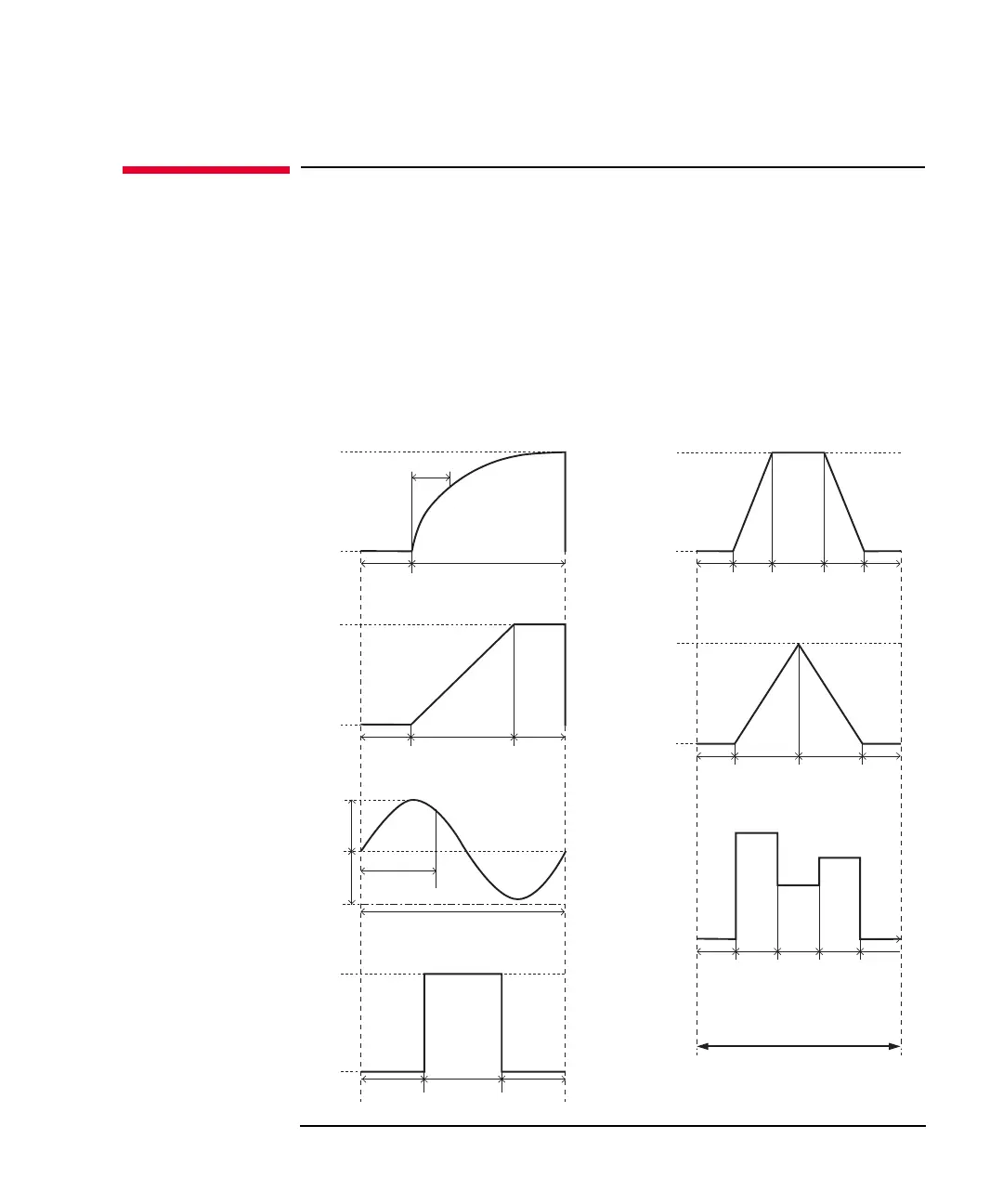

Figure 6-5 Variety of Arbitrary Waveform Outputs
ARB EXPONENT
ARB RAMP
ARB SINUSOID
ARB SQUARE
ARB TRAPEZOID
ARB TRIANGLE
ARB USER
Start
End
Delay
T (Tau)
Time
Start
End
Delay
Ramp End Time
Phase
Amplitude
Offset
0
1/Frequency
Start
Peak
Delay
Peak Time End Time
Peak
Start
Delay Rise
Time
Peak
Time
Fall
Time
End
Time
Peak
Start
Delay
Rise
Time
Fall
Time
End
Time
Time Time
Time
Time
Time
L
1
L
2
L
3
L
n
n: Points
Period = 1000 s maximum
for all waveform
