3-22 Keysight B2961A/B2962A User’s Guide, Edition 3
Installation
Connecting a DUT
Using the N1295A Test Fixture
Keysight N1295A is a test fixture which has four triaxial connectors and which
supports two 2-wire connections.
Requirements • Keysight N1295A test fixture furnished with pin clip wire 4 ea. and pin plug
wire 2 ea.
• Keysight N1294A-001 banana to triaxial adapter for 2-wire connections
• Triaxial cable, 2 ea. for one 2-wire connection
Connections 1. Attach the banana to triaxial adapter to the B2961A/B2962A source/measure
terminals. See Figure 3-7. If there is some space as “Bad connection”, the
contact is not enough.
2. Connect the triaxial cables between the adapter and N1295A as shown in Figure
3-8.
3. Connect the DUT between terminals 1 and 2 for the example in Figure 3-8.

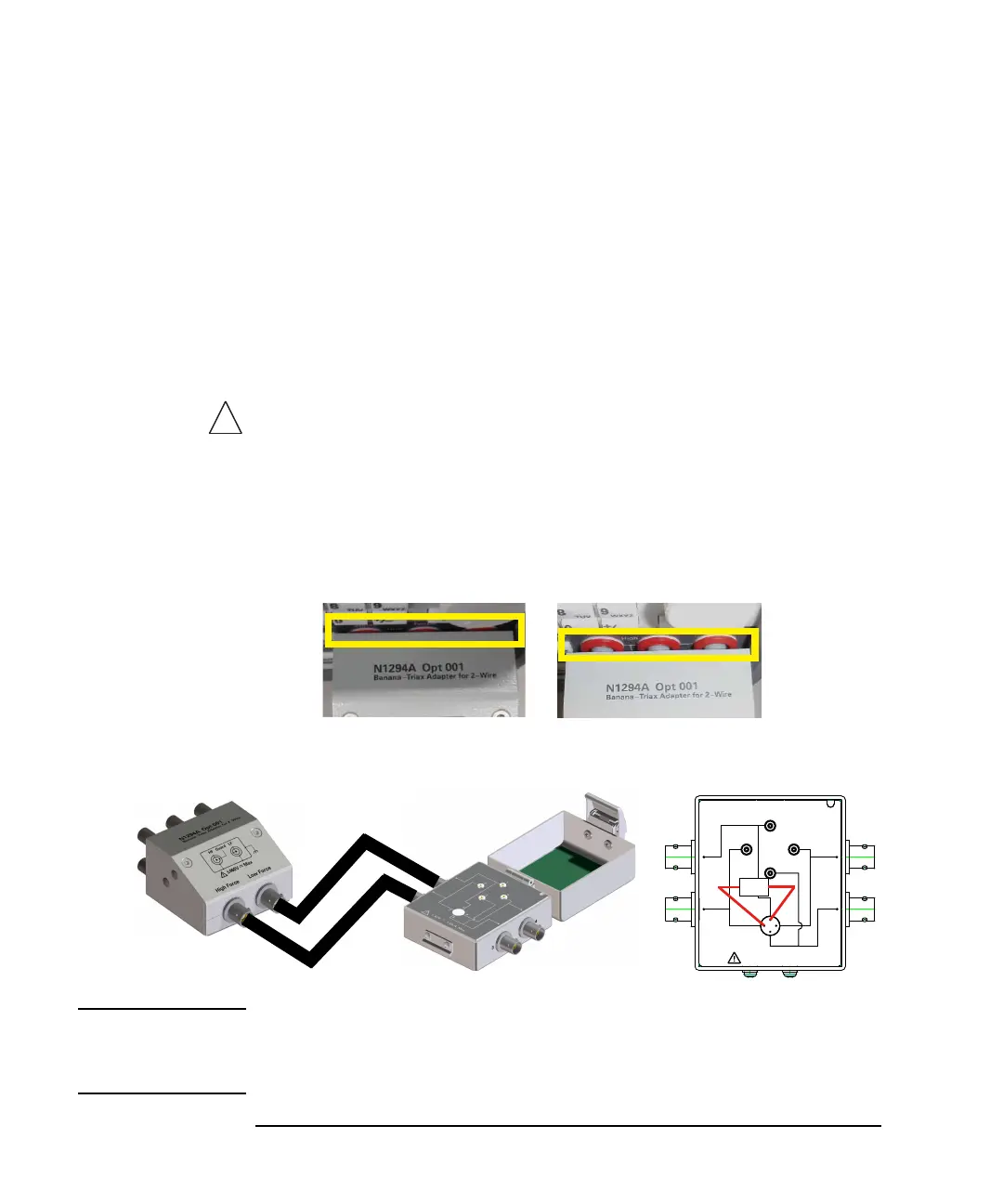

Figure 3-7 Attaching Banana to Triaxial Adapter
Figure 3-8 Keysight N1295A Connection Example
NOTE Shielding
N1295A is equipped with a cover. To minimize the effect of ambient noise, close the
cover when performing measurements.
Bad connection
Good connection (no space)
