Getting Started
Applying DC Output
Applying DC Output
B2961A/B2962A can be used as a DC current or voltage source. The following
procedure configures B2961A/B2962A as a voltage source and applies a voltage of
+0.5 V.

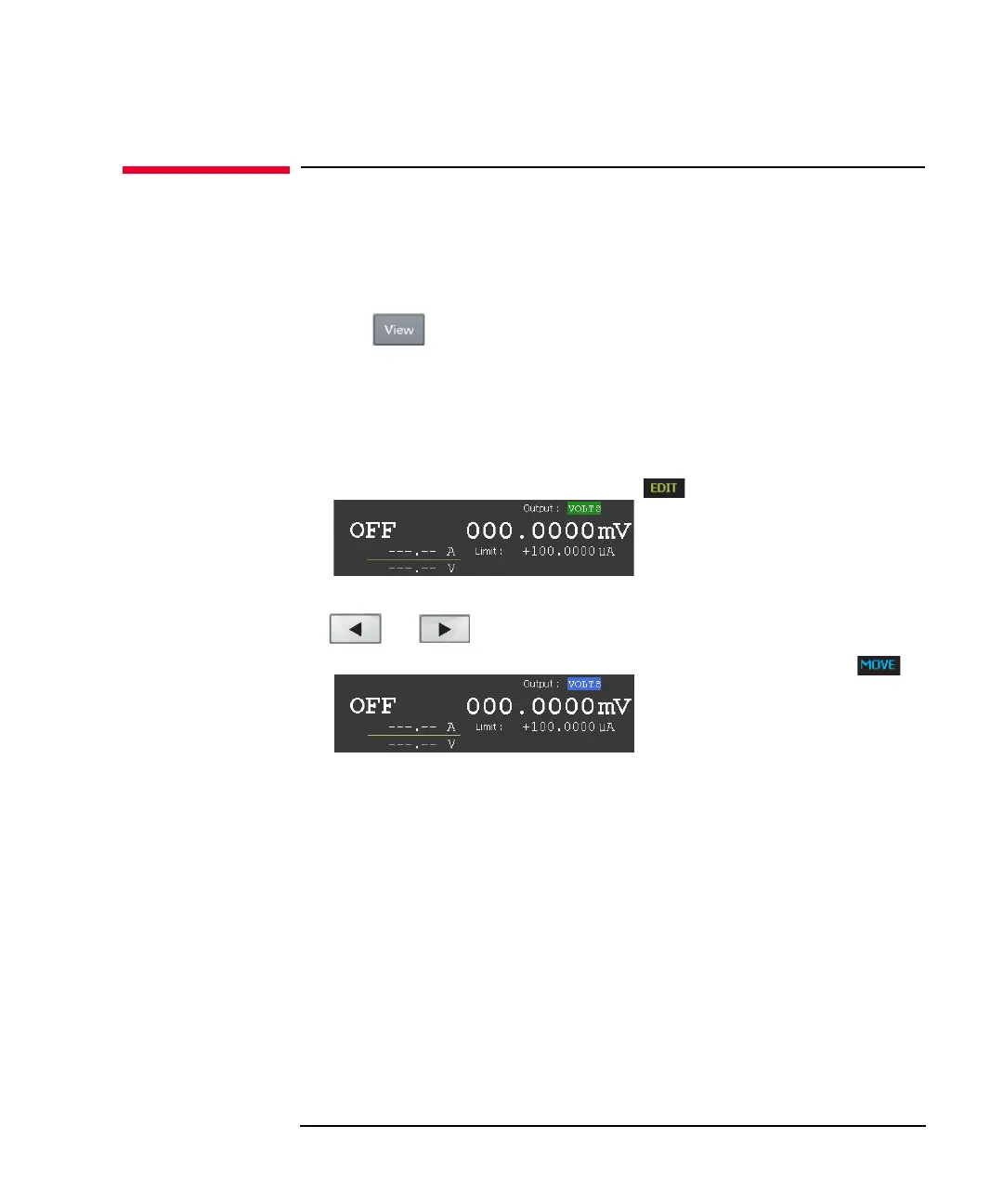

Step 1. Press the key to display the Single view or Dual view.
Step 2. Setting the Source mode (voltage output)
1. Press the
Mode assist key on a 1-ch model, or the Ch1 Mode assist key on a 2-ch
model.
The field pointer appears on the Source mode, and the status changes to EDIT
(green). The status information will show .
2. Press the
VOLTS (V) assist key. Or use the rotary knob or arrow keys
and to specify the mode, and press the knob to fix the setting.
The status changes to MOVE (blue). The status information will show .
Step 3. Setting the Source value (voltage output value)
1. Press the
Source assist key on a 1-ch model, or the Ch1 Source assist key on a
2-ch model. Or, use the rotary knob or arrow keys to move the field pointer onto
the Source value and press the knob. The field pointer appears on the Source
value, and the status changes to EDIT (green).
2. Turn the rotary knob clockwise to increase the value, or counter clockwise to
decrease the value. Set the desired value.
When you press an arrow key, a digit pointer will appear on a digit. Turning the
knob will change the value of the digit or move the decimal point if the pointer is
on it.
3. Press the rotary knob to fix the value. The status changes to MOVE (blue).
