Function Details
List Sweep
List Sweep
By using the list sweep function, the channel can apply your desired waveform, for
example as shown in Figure 6-4, and measure voltage or current at each output
value.
This function can be used in both the DC voltage/current output range and the pulse
voltage/current output range.
The source output and measurement timing is controlled by the trigger system. And
the interval can be set to a constant value if the trigger type is set to TIMER.
The source output and measurement can be performed in 10 s minimum interval.
To set these trigger parameters, see “Trigger Parameters” on page 4-20. The interval
can be set by the Period parameter. The number of output values can be set by the
Count parameter.
To set the source output values, use the List Sweep dialog box. See “List Sweep
Setup” on page 4-14.

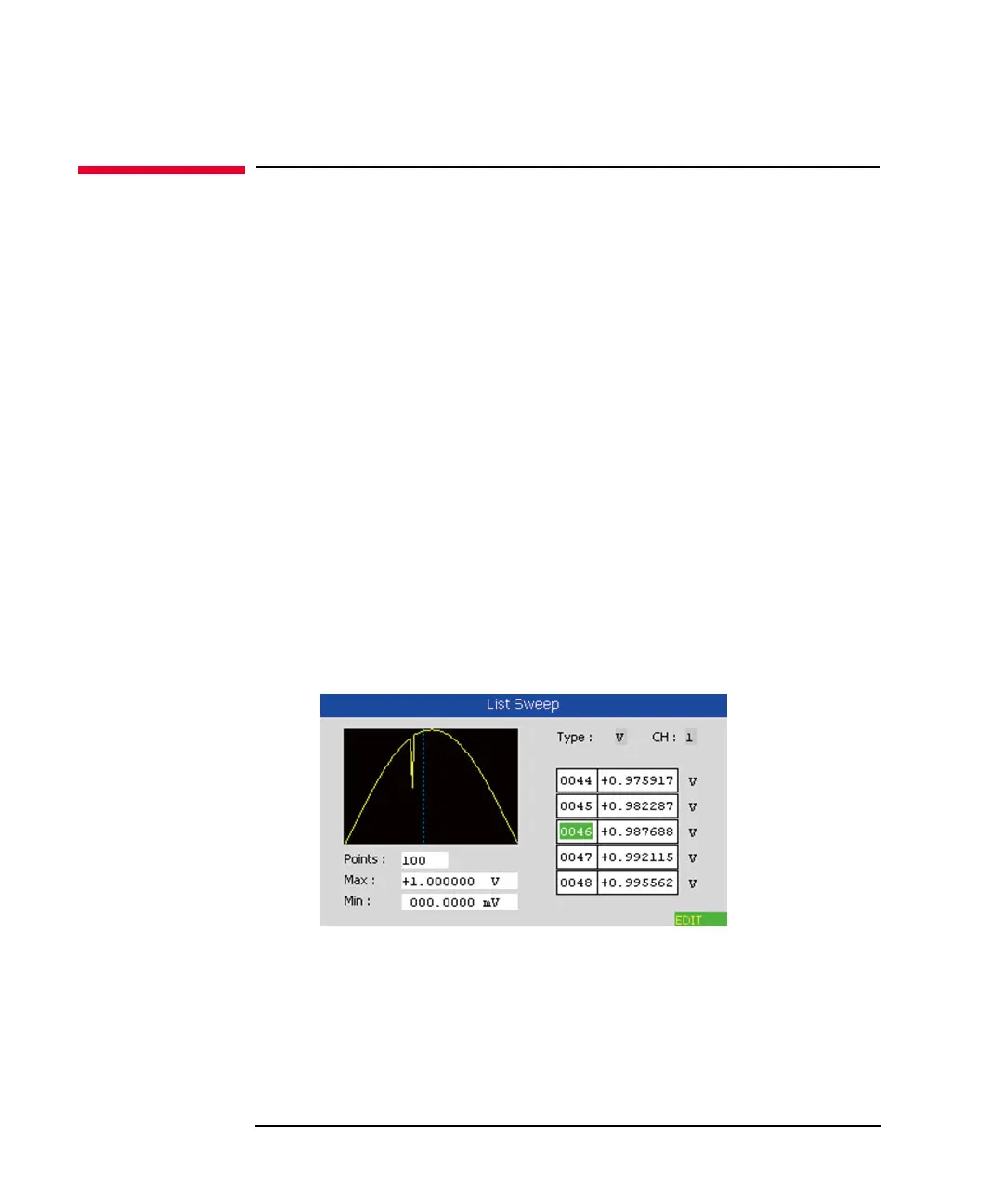

Figure 6-4 shows an example setup of the List Sweep dialog box with an image of
the output waveform.
Figure 6-4 List Sweep Dialog Box
