Keysight B2961A/B2962A User’s Guide, Edition 3 6-9
Function Details
Sweep Output
Sweep Output
The channel can apply a sweep voltage/current. It supports several sweep output
functions, as shown in Figure 6-3. The channel not only performs the sweep output
but performs the measurement for each sweep step as shown in Figures 6-1 and 6-2.
The channel can also perform an arbitrary waveform output as the sweep source and
perform the measurement for each step of the waveform. It is called as list sweep.
For details, see “List Sweep” on page 6-10.

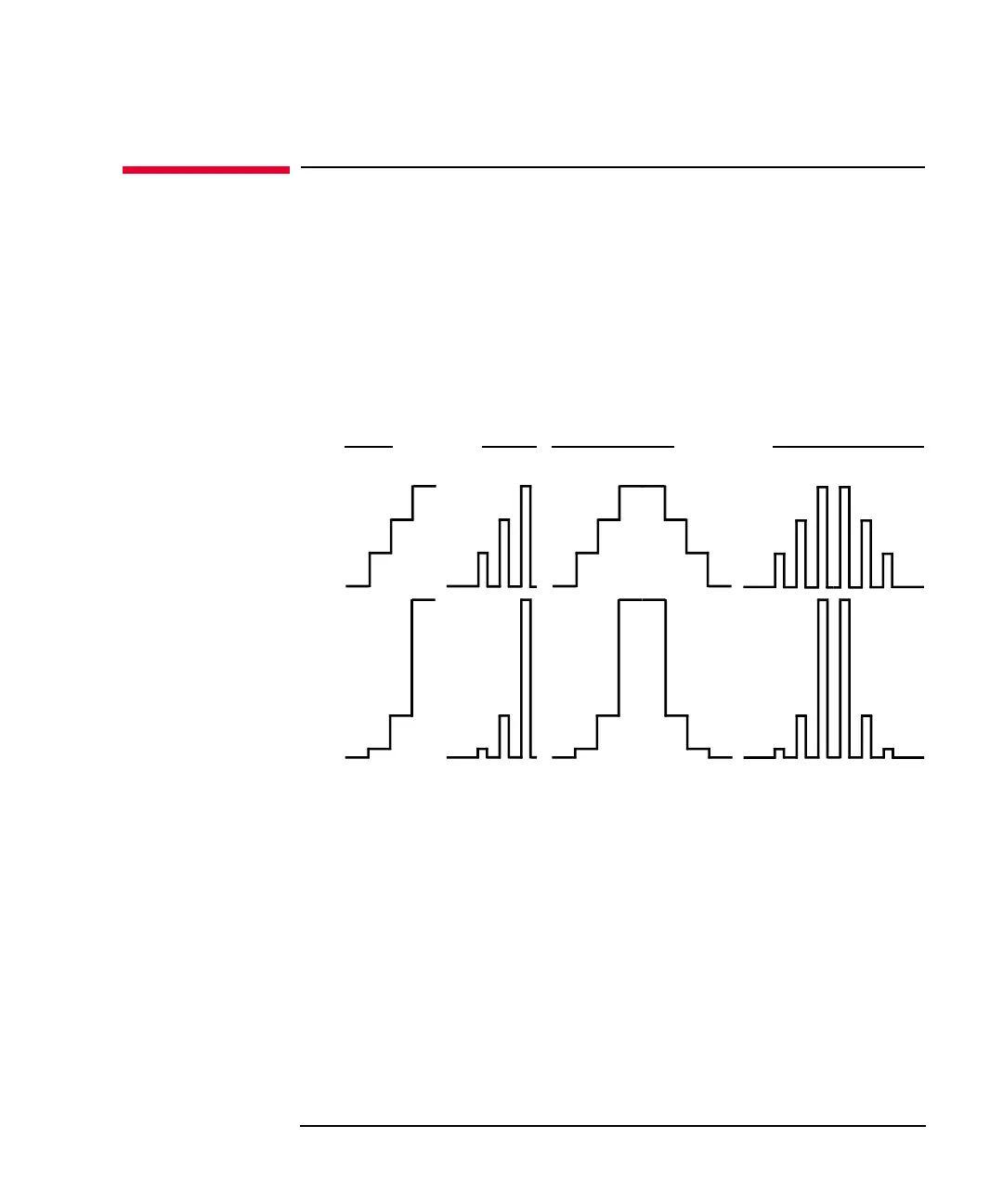

Figure 6-3 Variety of Sweep Outputs
To Set Sweep Output
The following points must be noted when setting the sweep output.
• To set the function parameters, see “Function Parameters” on page 4-13.
• To set the ranging mode of the sweep source, see “Sweep dialog box” on page
4-30.
• To set the sweep direction, see “Sweep dialog box” on page 4-30.
• To set the output condition after sweep, see “Sweep dialog box” on page 4-30.
• To set the pulse delay time and the pulse width, see “Pulse Parameters” on page
4-19.
Single Sweep
Double Sweep
Linear Sweep
Logarithmic Sweep
DC output
Pulse output
DC output
Pulse output
Pulse output
Pulse output
DC output
DC output
