6-8 Keysight B2961A/B2962A User’s Guide, Edition 3
Function Details
Pulse Output

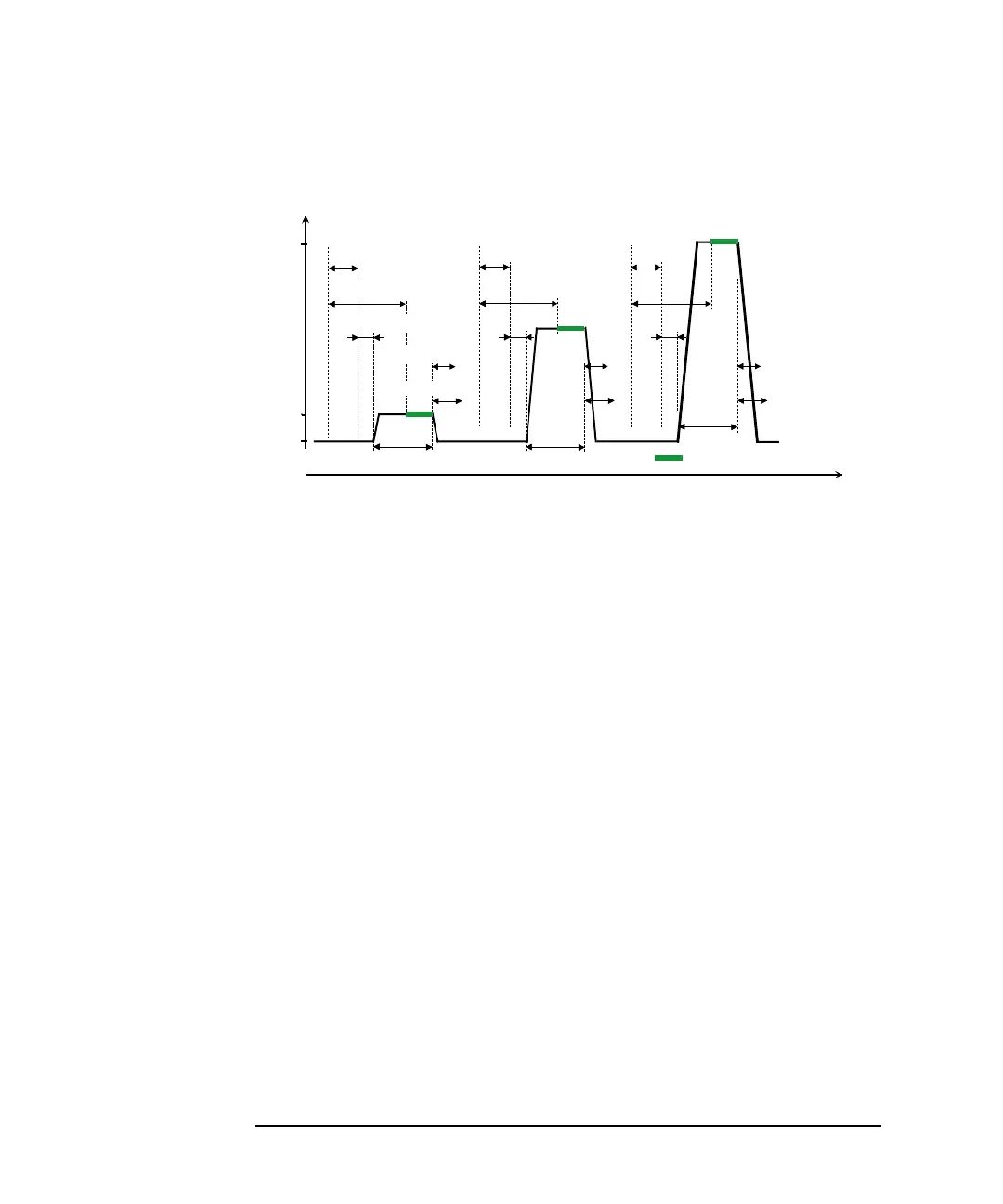

Figure 6-2 Pulse Output and Measurement Timing, Sweep Output Example
To set the delay time, see “Trigger Parameters” on page 4-20.
To set the pulse delay time and the pulse width, see “Pulse Parameters” on page
4-19.
To set the wait time, see “Wait Control dialog box” on page 4-31.
For more information about the trigger setup, see “Trigger key group” on page 4-35.
To Set Pulse Output
The following points must be noted when setting the pulse output.
• Pulse base value is set by the Source value on the Single or Dual view.
• Pulse peak value is set by the Single view.
Set the Peak value of “Pulse Parameters” on page 4-19 for the pulsed bias
output.
Or set the Start, Stop, and Points values of “Function Parameters” on page 4-13
for the pulsed sweep output.
Voltage or current
Previous value
Trigger
: Measurement
Time
Stop value
Pulse delay (3)
Trigger
Pulse width (6)
Trigger
Start value
Source delay (1)
Source wait (4)
(1)
(2)
(3)
(6)
(1)
(3)
(6)
(2)
Measure wait (5)
Measure delay (2)
(4)
(5)
(4)
(5)
To Next Page
